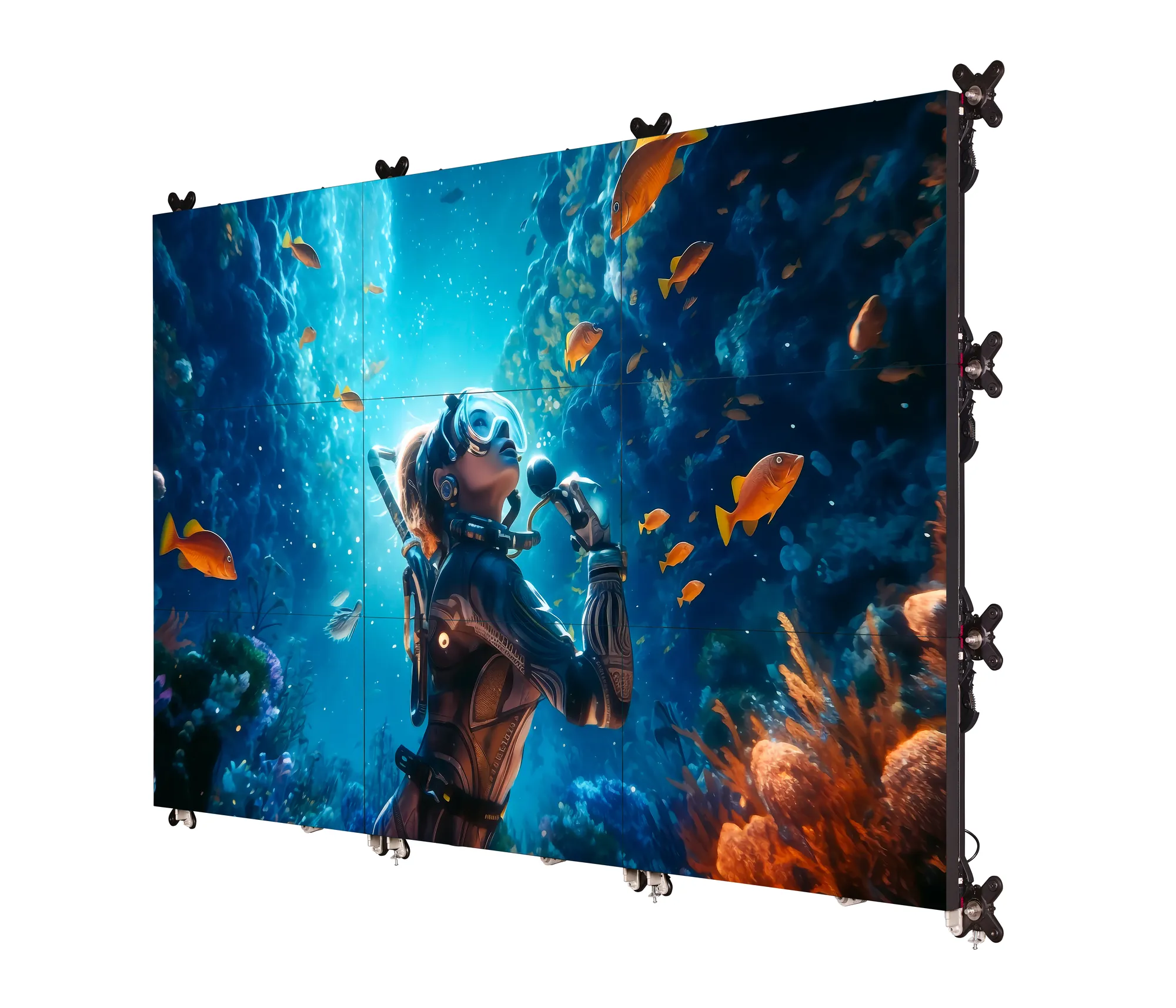

Barco UniSee II 55" Full HD Direct Mini LED Video Wall Display
Strike with more brightness, colors and contrast
LCD video wall visualization reaches a new level with Barco UniSee II. This updated version of the revolutionary Barco UniSee platform will shape the future of critical decision-making with its striking visual performance. New innovations, including the use of mini-LEDs and Chip-on-Glass technology, contribute to optimal contrast with deep blacks. Additionally, quantum dot technology results in crisp colors and more saturation. The uniformity is revolutionary, with superior inter-panel communication. Coupled with the renowned bezel-less LCD panels, this makes the video wall act as a real large single canvas.
Designed for critical applications

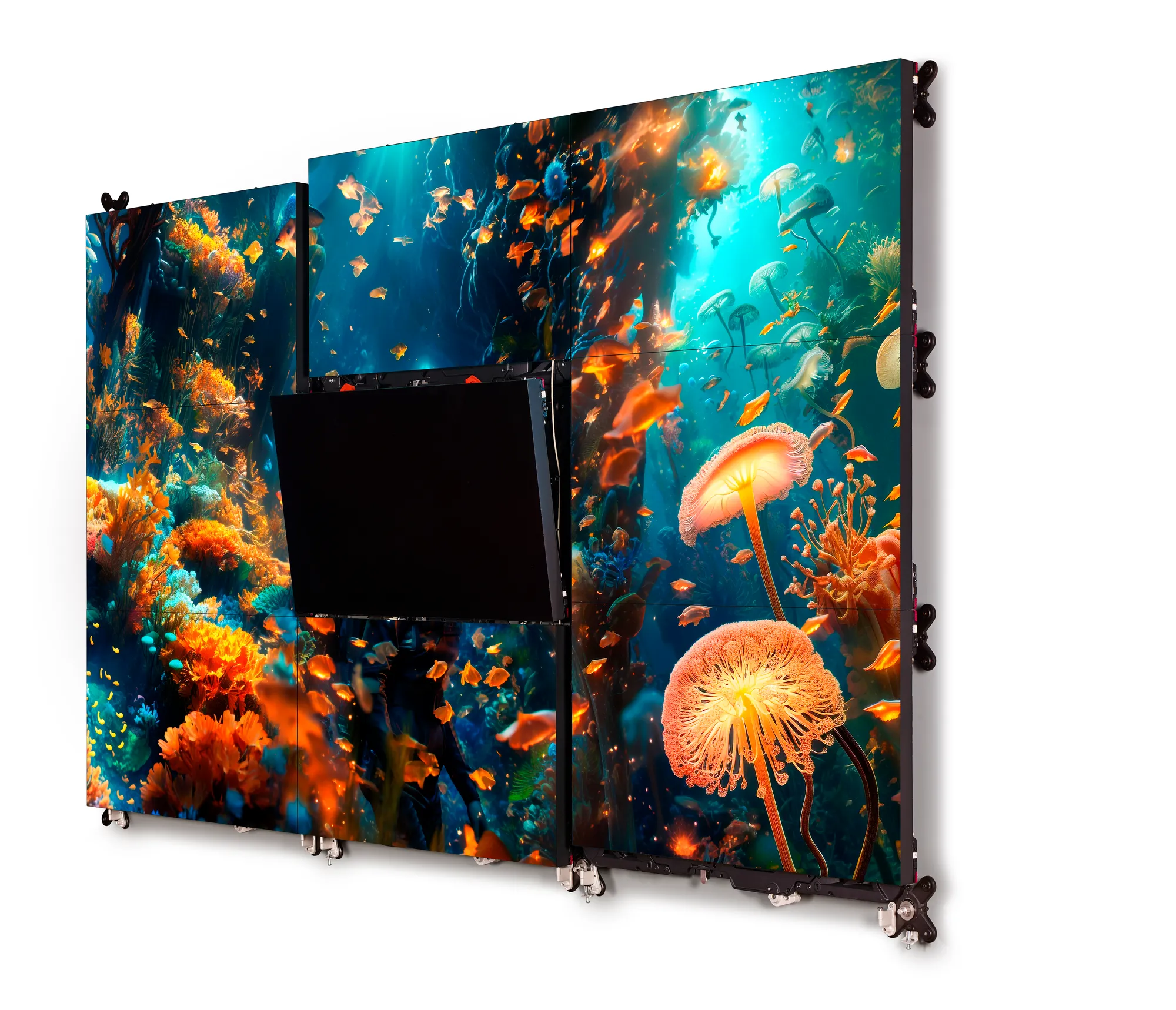

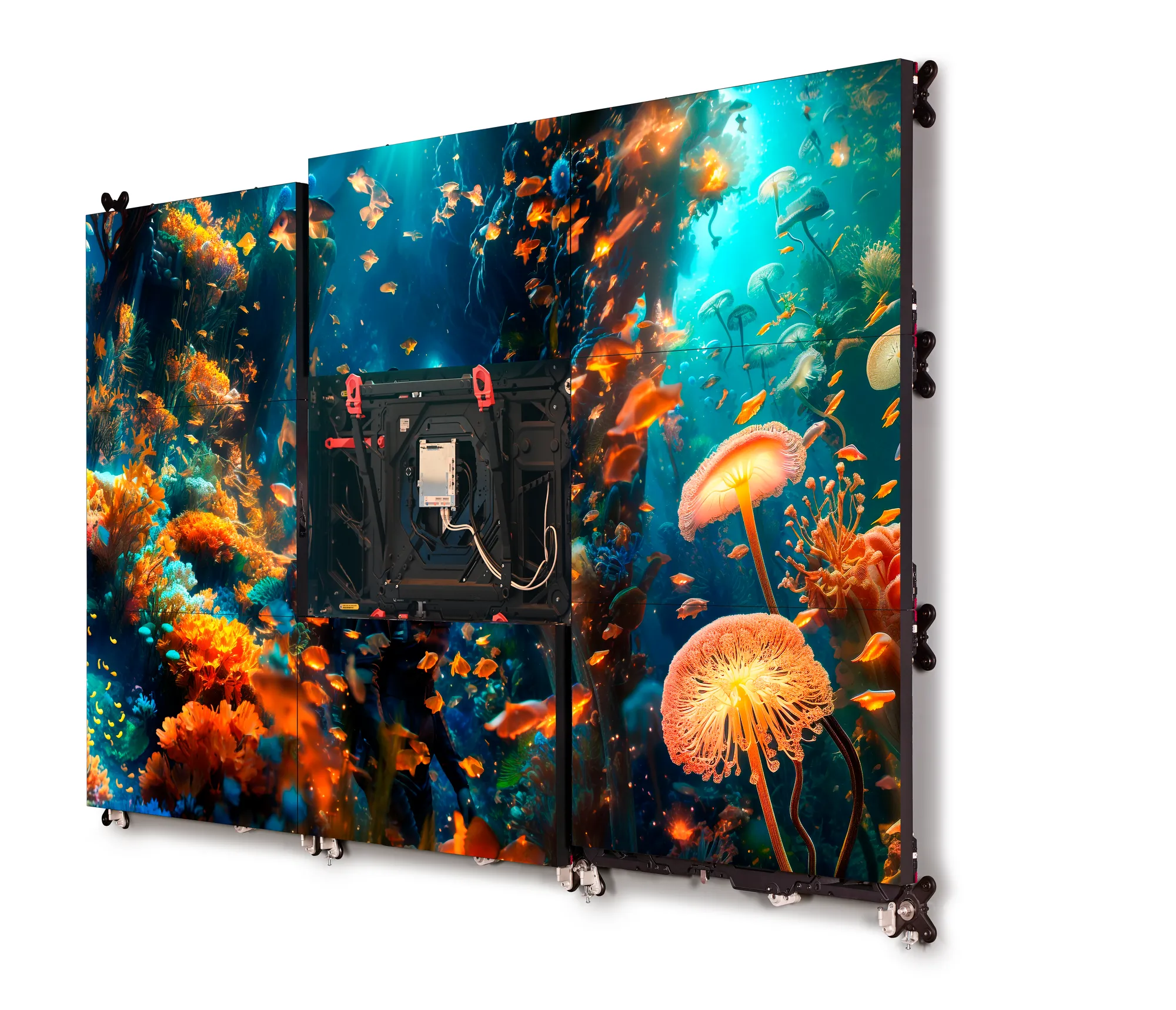

The refined viewer ergonomics further improves viewing angles and counters eye fatigue. This makes Barco UniSee II perfect for intense use in critical applications, such as control rooms. Because reducing operational costs is high up the agenda of many companies, Barco UniSee II reduces power consumption with 20% compared to the previous version. The innovative mounting structure that is a trademark of the Barco UniSee family, ensures a perfect installation in any environment, and makes servicing a lot simpler and faster.
Specifications
| LCD Technology |
IPS |
| Resolution |
Full HD (1920 x 1080 pixels) |
| Backlight |
Direct Mini LED with more than 5000 LEDs |
| Aspect Ratio |
16:9 |
| Luminance (Typ.) |
800 cd/m² (typical) |
| Peak Luminance |
1300 cd/m² with Peak mode |
| Contrast Ratio (Typ.) |
1200:1 |
| Smart Dynamic Contrast |
>200.000:1 |
| Local Dimming |
Yes |
| Smart Local Dimming |
Yes |
| White Point |
Native: 8000K (typical) |
| HDR Processing |
HDR10 compliant |
| Color Gamut/Depth |
Native 100% NTSC |
| Calibration |
Sense X automatic color and brightness calibration |
| Backlight Lifetime (Typ.) |
60,000h |
| Cooling |
Fan-less |
| Screen Haze |
25% |
| Viewing Angle (H|V) |
178° | 178° |
| Response Time |
< 8 ms |
| Uniformity |
9 points: 98%, 13 points: 94%, 21 points: 90% |
| Operating Temperature |
0°C - 40°C |
| Operational Humidity |
20% – 80% (non-condensing) |
| Storage Temperature |
-20°C – 60°C |
| Storage Humidity |
10% – 90% non-condensing |
| Mounting |
Standard UniSee Smart mount or InvisiMount possible (*) |
| Landscape/Portrait |
Yes / Yes |
| Temperature Sensors |
Embedded in each panel |
| AC Input Voltage |
100-240 VAC, 50-60 Hz |
| Power Consumption (Typical) |
Int. power supply: 225 W, Ext. power supply: 220 W |
| Heat Dissipation |
Int. power supply: 768 BTU/h, Ext. power supply: 751 BTU/h |
| EMC Class |
FCC Class A / FCC Class B (from H2 2026) |
| Dimensions LCM (WxHxD) |
1211.36 x 682.02 x 65 mm |
| Dimensions LCD (with Int SMPS) (WxHxD) |
1211.36 x 682.02 x 91.10 mm |
| Active Screen Diagonal |
55” |
| Weight Net |
LCD (LCM+SMPS+Input Board): 18.7 kg, LCM: 16.4 kg |
| Weight Gross |
24.6 kg |
| Bezel Width |
Bezel-less |
| DisplayPort |
2x DP1.2 inputs & 1x output (4K@60Hz) |
| HDMI(TM) |
2x HDMI™ 2.0 inputs (4K@60Hz) |
| Ethernet Port |
2x Ethernet ports |
| USB |
2x USB ports (only for power) |
| HDCP |
Yes, v2.2 |
| Model Name |
Barco UniSee II |
