| Power |
|
| Total power |
1600 W |
| Peak power |
1700 W |
| Efficiency |
92.2% |
| Power factor |
0.99 |
| Hold time |
18 ms |
| Number of +12V rail(s) |
6 |
| Combined power (+12V) |
1600 W |
| Combined power (+5V) |
150 W |
| Combined power (+3.3V) |
150 W |
| Max output current (+12V1) |
40 A |
| Max output current (+12V2) |
40 A |
| Max output current (+12V3) |
45 A |
| Max output current (+12V4) |
45 A |
| Max output current (+5V) |
25 A |
| Max output current (+3.3V) |
25 A |
| Max output current (+5Vsb) |
3.5 A |
| Max output current (-12V) |
0.5 A |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |
| AC input voltage |
115 – 240 V |
| AC input frequency |
50 / 60 Hz |
| Maximum input current (@110V) |
9 A |
| Maximum input current (@220V) |
15 A |
| Ports & Interfaces |
|

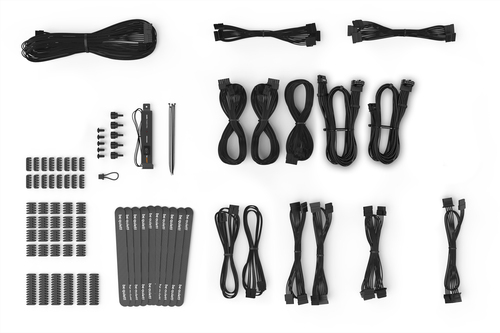

| Cabling type |
Fully-Modular |
| Motherboard power connector |
20+4 pin ATX |
| Motherboard power cable length |
60 cm |
| CPU power connector (4+4 pin) |
Yes |
| CPU power cable length |
70 cm |
| EPS power connector (8-pin) |
Yes |
| EPS power connector (4+4 pin) |
Yes |
| PCI Express power connectors (12-pin) |
2 |
| PCI Express power connectors (6+2 pin) |
6 |
| PCI Express power cable length |
60 cm |
| Peripheral (Molex) power connectors (4-pin) |
5 |
| Peripheral (Molex) power cable length |
600, 750, 900 mm |
| Number of SATA power connectors |
16 |
| Number of SATA power cables |
5 |
| SATA power cable length |
500, 600, 650, 750, 800, 900, 950, 1050 mm |
| Performance |
|
| Mean time between failures (MTBF) |
100,000 h |
| Noise level |
31.1 dB |
| Bearing technology |
FDB |
| 80 PLUS certification |
80 PLUS Titanium |
| ATX version |
3.1 |
| EPS version |
2.92 |
| PSU form factor |
ATX |
| Purpose |
PC |
| Design |
|
| Cooling type |
Active |
| Number of fans |
1 fan |
| Fan diameter |
13.5 cm |
| Fan speed |
0 – 2600 RPM |
| Product colour |
Black |
| Operational Conditions |
|
| Operating temperature |
0 – 50 °C |
| Certificates |
|
| Compliance certificates |
BSMI, CB, CCC, CE, FCC, RCM, TÜV mark, UKCA, cTUVus |
| WEEE compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, ErP, Triman |
| Weight & Dimensions |
|
| Weight |
2.44 kg |
| Height |
86 mm |
| Width |
150 mm |
| Depth |
200 mm |
| Packaging Data |
|
| Package weight |
6.9 kg |
| Package height |
152 mm |
| Package width |
253 mm |
| Package depth |
417 mm |
| Manual |
Yes |
| Manual languages |
Simplified Chinese, German, English, Spanish, French, Japanese, Korean, Polish, Russian, Thai |
