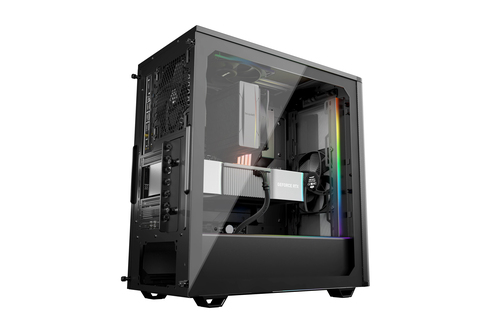

Experience high-performance cooling and sleek design with the be quiet! Pure Base 501 DX Black Midi Tower Case. Featuring tempered glass panels, steel construction, and multi-compatibility for ATX, micro ATX, and Mini-ITX motherboards, it delivers quiet operation and optimal airflow for gaming and high-performance PC builds.

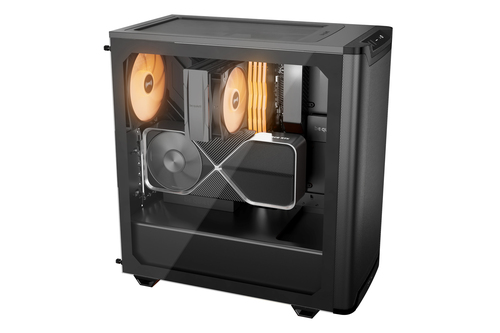

Impressive lighting and airflow
Pure Base 501 DX Black is an impressively illuminated be quiet! ATX case with compact dimensions and high airflow for any application. Elevate your system with the elegant ARGB lighting and relish the show.
Specifications
| Design |
| Maximum PSU length |
20 cm |
| Maximum graphics card length |
36.8 cm |
| Anti-dust filter |
Yes |
| Illumination location |
Front |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Side window |
Yes |
| Number of expansion slots |
7 |
| Number of 2.5" bays |
5 |
| Number of 3.5" bays |
2 |
| Number of 5.25" bays |
0 |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ATX |
| Product colour |
Black |
| Material |
Acrylonitrile butadiene styrene (ABS), Glass, Steel |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
| Supported power supply form factors |
ATX, PS2 |
| Power supply included |
No |
| Ports & interfaces |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 2.0 ports quantity |
0 |
| Cooling |
| Pulse-width modulation (PWM) support |
Yes |
| Top radiator sizes supported |
120,240 mm |
| Rear radiator sizes supported |
120,140 mm |
| Front radiator sizes supported |
120,140,240,280,360 mm |
| Liquid cooling capability |
Yes |
| Fan power consumption |
3.6 W |
| Fan rated current |
0.06 A |
| Fan rated voltage |
5 - 13.2 V |
| Maximum air pressure |
0.96 mmH2O |
| Maximum airflow |
57.4 cfm |
| Noise level (high speed) |
21.9 dB |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
2 |
| Top fans installed |
1x 140 mm |
| Rear fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 140 mm |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
1x 140 mm |
| Storage |
| Supported HDD sizes |
2.5,3.5" |
| Technical details |
| Compliance certificates |
CE, RoHS, UKCA, WEEE |
| Sustainability certificates |
Triman |
| Warranty period |
3 year(s) |

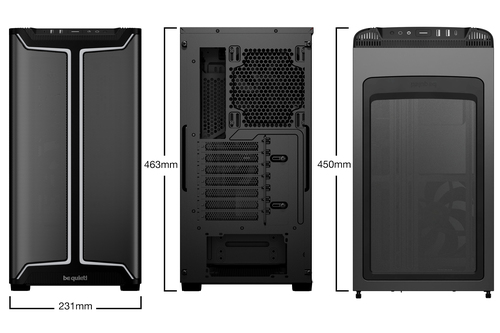

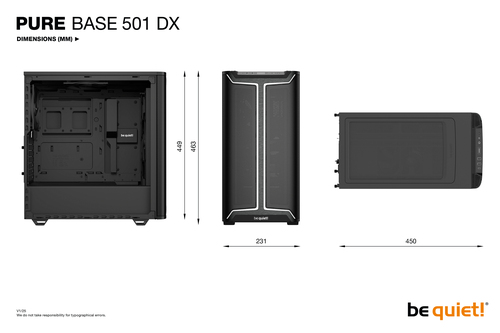

| Weight & dimensions |
| Weight |
7.8 kg |
| Height |
463 mm |
| Depth |
450 mm |
| Width |
231 mm |
| Packaging data |
| Package weight |
9.2 kg |
| Package height |
503 mm |
| Package depth |
518 mm |
| Package width |
292 mm |
| Other features |
| Fan connector |
4-pin |
| Volume |
24.4 L |
