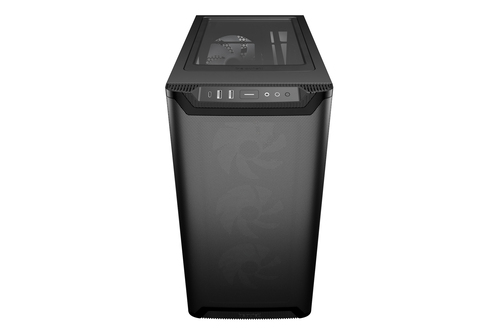

The be quiet! Pure Base 501 LX is a versatile Midi Tower PC case designed for silent operation and high-performance builds. Constructed from durable steel with a tempered glass side panel, it supports ATX, micro ATX, and Mini-ITX motherboards. With optimized airflow, noise-dampening features, and convenient cable management, it provides a quiet, efficient, and visually appealing setup for gamers and professionals alike.
Impressive lighting and airflow
Pure Base 501 LX Black is an impressively versatile be quiet! ATX case with ARGB fans, compact dimensions and high airflow for any application. Upgrade your gaming room with the multiple colors and modes of Pure Base 501 LX Black and make your family and friends gaze in awe.
Specifications
| Design |
| Maximum PSU length |
20 cm |
| Maximum graphics card length |
36.8 cm |
| Maximum CPU cooler height |
17.8 cm |
| Anti-dust filter |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Side window |
Yes |
| Number of expansion slots |
7 |
| Number of 2.5" bays |
5 |
| Number of 3.5" bays |
2 |
| Number of 5.25" bays |
0 |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ATX |
| Product colour |
Black |
| Material |
Acrylonitrile butadiene styrene (ABS), Glass, Steel |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
| Supported power supply form factors |
ATX, PS2 |
| Power supply included |
No |
| Ports & interfaces |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 2.0 ports quantity |
0 |
| Cooling |
| Pulse-width modulation (PWM) support |
Yes |
| Top radiator sizes supported |
120,240 mm |
| Rear radiator sizes supported |
120,140 mm |
| Front radiator sizes supported |
120,140,240,280,360 mm |
| Liquid cooling capability |
Yes |
| Fan 2 maximum air pressure |
0.9 mmH2O |
| Fan 2 maximum airflow |
56 cfm |
| Fan power consumption |
3.8 W |
| Fan rated current |
0.06 A |
| Fan rated voltage |
5 - 13.2 V |
| Maximum air pressure |
1.34 mmH2O |
| Maximum airflow |
51.5 cfm |
| Noise level (high speed) |
21.9 dB |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
2 |
| Rear fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 140 mm |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
3x 120 mm |
| Storage |
| Supported HDD sizes |
2.5,3.5" |
| Technical details |
| Compliance certificates |
CE, RoHS, UKCA, WEEE |
| Sustainability certificates |
Triman |
| Warranty period |
3 year(s) |
| Weight & dimensions |
| Weight |
7.8 kg |

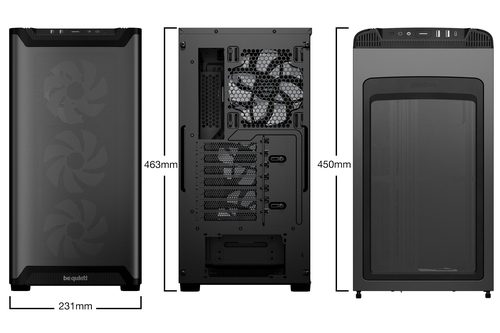

| Height |
463 mm |
| Depth |
450 mm |
| Width |
231 mm |
| Packaging data |
| Package weight |
9 kg |
| Package height |
503 mm |
| Package depth |
518 mm |
| Package width |
292 mm |
| Other features |
| Fan connector |
4-pin |
| Volume |
24.4 L |
