Proven Reliability and Good Efficiency
Specially designed by be quiet! with the price-conscious PC builder in mind: System Power 9 600W CM offers renowned be quiet! performance and quietness and makes it possible to build cost-effective and reliable systems.
Specification:
| General |
|
| Type |
Power Supply Units |
| Purpose |
PC |
| Product Colour |
Black |
| Form Factor |
ATX |
| PSU Form Factor |
ATX |
| Cooling Type |
Active |
| Number of Fans |
1 fan(s) |
| Fan Diameter |
12 cm |
| Modular Cables |
Semi-Modular |
| Performance |
|
| Compatible Products |
Intel C6/C7 |
| Bearing Technology |
Sleeve |
| EPS Version |
2.92 |
| ATX Version |
2.51 |
| 80 PLUS Certification |
80 PLUS Bronze |
| Efficiency |
89% |
| Power Factor |
0.95 |
| Power Factor Correction |
Active (PFC) |
| Hold Time |
17 ms |
| Power Protection Features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power Output |
|
| Total Power |
600 W |
| Combined Power (+12V) |
576 W |
| Combined Power (+5V) |
120 W |
| Combined Power (+3.3V) |
120 W |
| Combined Power (+5Vsb) |
15 W |
| Combined Power (-12V) |
3.6 W |
| Max Output Current (+12V1) |
28 A |
| Max Output Current (+12V2) |
22 A |
| Max Output Current (+5V) |
15 A |
| Max Output Current (+3.3V) |
24 A |
| Max Output Current (+5Vsb) |
3 A |
| Max Output Current (-12V) |
0.3 A |
| Input Current |
6 A |
| AC Input Voltage |
200 – 240 V |
| AC Input Frequency |
50 Hz |
| Ports & Interfaces |
|

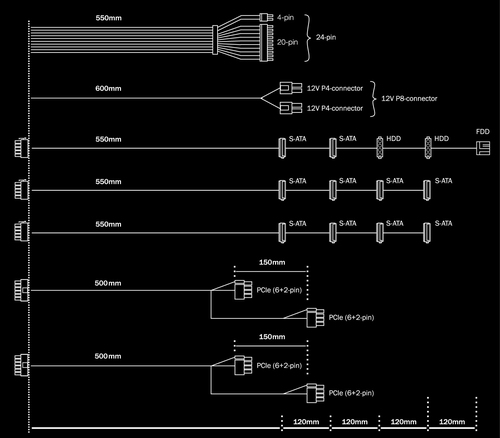

| Cabling Type |
Semi-Modular |
| CPU Power Connector |
Yes (4+4-pin) |
| CPU Power Cable Length |
60 cm |
| Motherboard Power Connector |
20+4 pin ATX |
| Motherboard Cable Length |
55 cm |
| PCI Express Connectors |
4 x 6+2-pin |
| PCI Express Cable Length |
50 cm |
| SATA Connectors |
10 |
| SATA Cable Lengths |
550 mm, 670 mm |
| PATA (Molex) Connectors |
2 |
| Floppy Drive Connector |
1 |

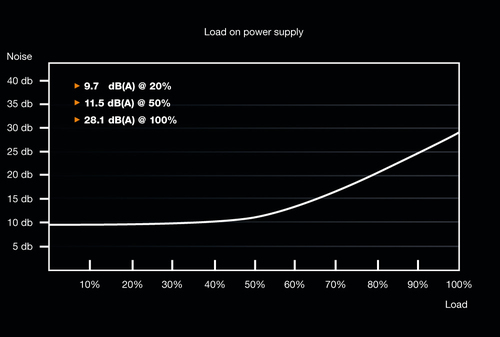

| Noise Levels |
|
| Silent Mode (<30% Load) |
9.7 dB |
| Quiet Mode (50% Load) |
11.5 dB |
| Full Load (100%) |
28.1 dB |
| Weight & Dimensions |
|
| Weight |
1.66 kg |
| Width |
150 mm |
| Depth |
140 mm |
| Height |
86 mm |
| Packaging Data |
|
| Package Type |
Box |
| Package Weight |
2.42 kg |
| Package Height |
195 mm |
| Package Depth |
268 mm |
| Package Width |
97 mm |
| Manual Included |
Yes |
| Screws Included |
Yes |
| Cables Included |
PCIe, SATA |
| Certificates |
|
| Certifications |
CE, CB, TÜV, RCM, CU |
| Compliance Certificates |
RoHS |
| Technical Details |
|
| Sustainability Certificates |
ENERGY STAR |
