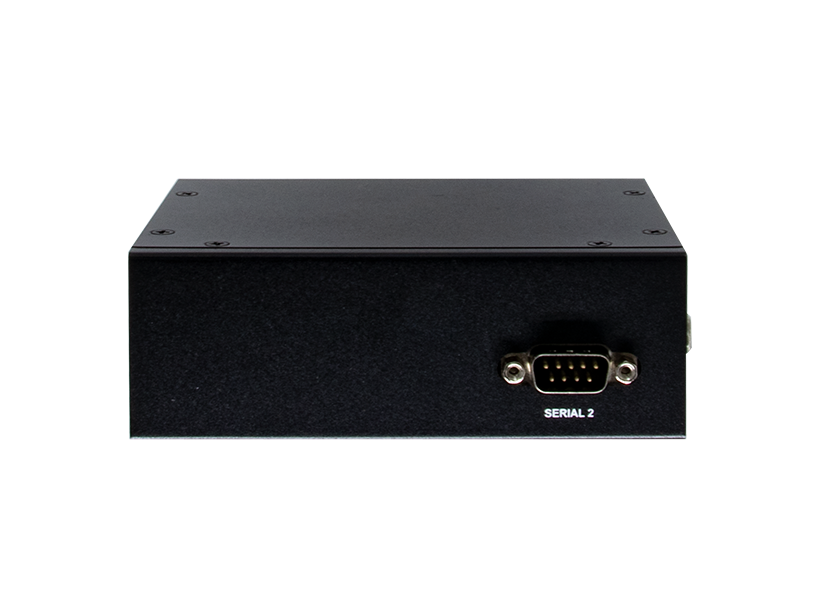

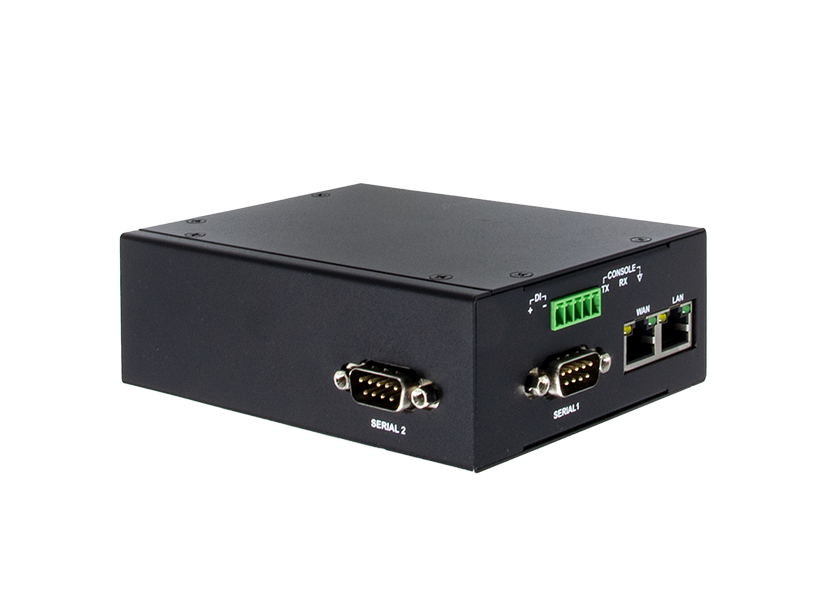

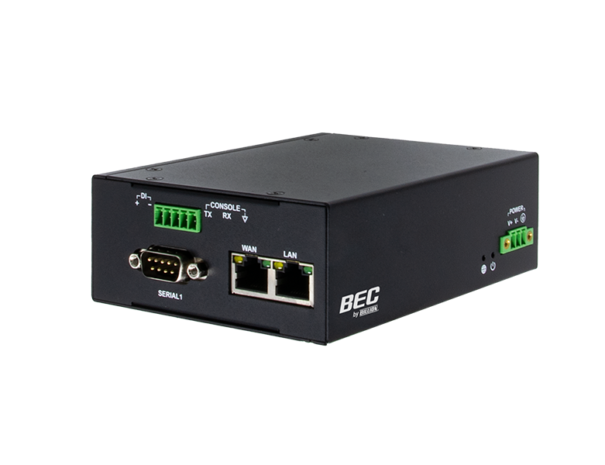

BEC MX-219 Industrial Protocol Gateway
BEC MX-219 Industrial Protocol Gateway is a versatile solution for seamless connectivity in industrial settings. This gateway serves a dual role by seamlessly linking the serial devices to an Ethernet network while supporting multiple connections for enhanced efficiency. Equipped with the ability to convert between protocols such as Modbus TCP, DNP3/TCP, IEC 61850-90-5 R-GOOSE, and PTP Ethernet, the MX-219 ensures adaptability and compatibility across diverse industrial systems.
BEC’s MX-219 provides the flexibility to integrate and synchronize different protocols, promoting improved connectivity and streamlined communication throughout the network.
Features
- Integrate and Synchronize Different Protocols
Including Modbus TCP, DNP3/TCP, IEC 61850-90-5 R-GOOSE, and PTP Ethernet
- Hardened Design
Compact IP30 Enclosure with Industrial-grade components
Specifications
| Network Protocols |
IPv4, IPv6, IPv4/IPv6 dual stack*2 |
| IP Pass-Through |
Supported |
| NAT |
Supported |
| Virtual Server |
Supported |
| DMZ |
Supported |
| Routing |
Static Routing, Dynamic Routing (RIP v1/v2, OSPF, BGP) |
| SNTP |
Supported |
| DNS Relay |
Supported |
| DDNS |
Supported |
| UPnP |
Universal Plug and Play (UPnP) compliant |
| DHCP |
Server / Client / Relay |
| Utility Applications |
PTP Ethernet (Precision Time Protocol Ethernet), IEC 61850-90-5 R-GOOSE, Modbus/TCP, DNP3/TCP |
| Firewall |
Built-in NAT Firewall |
| Stateful Packet Inspection |
SPI |
| DoS Protection |
Prevents DoS attacks including Land Attack, Ping of Death, etc. |
| Access Control |
IP Filtering, MAC Filtering, URL Filtering |
| VPN Pass-through |
Supported |
| VPN Protocols |
IPSec, PPTP, L2TP, GRE, OpenVPN |
| Serial Port |
RS-232 / RS-422 / RS-485 |
| Serial Protocols |
Modbus/TCP, Telnet Server, SSH Server, UDP Server/Client, TCP Server/Client, DNP3/TCP |
| Digital I/O |
Alarm I/O |
| Management |
Password protection for system management; Web-based GUI for remote and local management
Firmware upgrade and configuration, data upload and download via web-based GUI; CWMP (TR-069)*2, SNMP |
| Remote System Log Monitoring |
Supported |
| Scheduling |
Auto-Reboot |
| Diagnostic Tools |
Physical layer/protocol diagnostic test tool |
| Cloud Service |
BECentral® CloudEdge Service Platform |
| WAN Interface |
Gigabits Ethernet |
| Ethernet LAN |
10/100/1000Mbps auto-crossover |
| Serial Interface |
RS232 / RS422 / RS485 |
| Digital Input |
1×2 terminal block |
| Console |
1×3 terminal block |
| Power Connector |
1×3 terminal block |
| LED Indicators |
Power (System), Internet, WAN |
| Gigabits Ethernet Connectors |
RJ-45 x two (2) |
| Serial Connectors |
DB9 Male x two (2) |
| Digital Input Connector |
1×2 terminal block x one (1) |
| Console Connector |
1×3 terminal block x one (1) |
| Power Input |
DC 10V~56V |
| Dimensions |
125 x 98 x 43 mm (without antenna connector protrusion included) |
| IP Rating |
IP30 |
| Operating Temperature |
-40°C to 60°C |
| Operating Humidity |
20 ~ 95% non-condensing |
