When a machine needs to control multiple sensors, actuators, analog signals, and communication networks from one compact controller, using separate modules can make the control system larger and harder to manage. A compact PLC with built-in digital, analog, serial, Ethernet, and CAN interfaces can simplify the control architecture while keeping the system programmable and expandable.

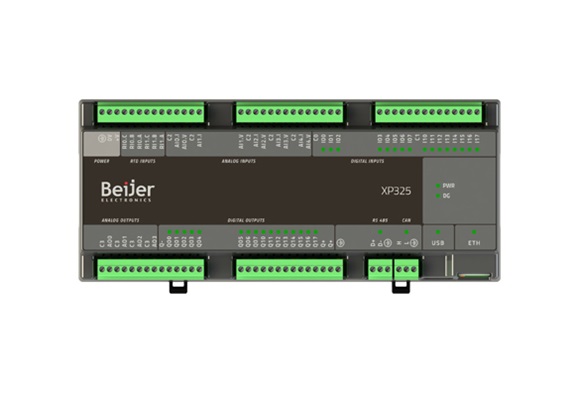

Beijer BCS-XP325, Compact CODESYS-based PLC Controller
The Beijer BCS-XP325 is a compact CODESYS-based PLC controller designed for machine and industrial automation applications. It combines programmable logic control with integrated digital and analog I/O, allowing the controller to receive signals from sensors, process control logic, and operate connected equipment without requiring a separate controller for each basic function.
The controller provides 16 digital inputs and 16 transistor digital outputs for connecting common industrial devices such as switches, sensors, indicators, relays, and actuators. It also includes voltage and current analog inputs and outputs, plus RTD analog inputs, allowing it to work with continuously varying process signals and temperature measurement devices.
For machine communication, the BCS-XP325 includes Ethernet TCP/IP, RS-485, CAN, and a USB host port. CANOpen Master and J1939 Manager protocols are supported, making the controller suitable for systems that need communication with compatible automation devices and CAN-based equipment.
The controller uses CODESYS programming and supports Instruction List, Structured Text, Ladder Diagram, Sequential Function Chart, Function Block Diagram, and Continuous Function Chart. Online changes, watchdog functionality, real-time clock operation, diagnostic indication, and configurable memory resources support programming, monitoring, and maintenance of automation applications.
Designed for compact control-panel installation, the BCS-XP325 has a 215.5 x 98.8 x 34.0 mm module size and operates from a 24 Vdc nominal supply. Conformal coating, IP20 protection, a -20 to 60 °C operating temperature range, 1,500 Vac isolation specifications across multiple interfaces, and CE, UL, cUL, DNV, and UL C1D2 certifications support its use in industrial and specified marine or hazardous-location installations.
Key features
- 16 digital inputs and 16 digital outputs
- 5 voltage and current analog inputs, up to 10 with library
- 4 voltage and current analog outputs and 2 RTD analog inputs
- Ethernet TCP/IP, RS-485, CAN and USB host interfaces
- CANOpen Master and J1939 Manager protocol support
- CODESYS programming with six supported programming languages
- 24 Vdc power supply with conformal coating
- CE, UL, cUL, DNV and UL C1D2 certifications
Specifications
| General |
|
| Part number |
66.016.122-1 |
| Warranty |
Up to 2 years |
| Digital inputs (DI) |
16 |
| Digital outputs (DO) |
16 |
| Voltage and current analog inputs (AI) |
5, up to 10 with library (LibIntegratedIoExt) |
| Voltage and current analog outputs (AO) |
4 |
| RTD analog inputs (AI) |
2 |
| Ethernet TCP/IP interface |
1 |
| RS-485 serial interface |
1 |
| CAN interface |
1 |
| CANOpen Master protocol |
Yes |
| J1939 Manager protocol |
Yes |
| USB host port |
1 |
| Addressable input variables memory (%I) |
2 KB |
| Addressable output variables memory (%Q) |
2 KB |
| Addressable variables memory (%M) |
1 KB |
| Symbolic variables memory |
2 MB |
| Program memory |
2 MB |
| Retain/persistent memory (user configurable) |
7.5KB |
| Source code memory (backup) |
26 MB |
| User files memory (backup) |
8 MB |
| Maximum number of tasks |
5 |
| Programming languages |
Instruction List (IL), Structured Text (ST), Ladder Diagram (LD),
Sequential Function Chart (SFC), Function Block Diagram (FBD), Continuous Function Chart (CFC)
|
| Online changes |
Yes |
| Watchdog |
Yes |
| Real-time clock (RTC) |
Yes |
| Real-time clock (RTC) resolution |
Resolution of 1 ms, max. variance of 3 seconds per day, retention time of 14 days |
| Status and diagnostic indication |
LEDs, web pages and CPU’s internal memory |
| Isolation, Protective earth to all |
1,500 Vac / 1 minute |
| Isolation, Logic/RS-485/CAN/USB to all |
1,500 Vac / 1 minute |
| Isolation, Ethernet to all |
1,500 Vac / 1 minute |
| Isolation, Power supply/analog I/O to all |
1,500 Vac / 1 minute |
| Isolation, Digital inputs to all |
1,500 Vac / 1 minute |
| Isolation, Digital inputs group I0x to I1x |
1,000 Vac / 1 minute |
| Isolation, Digital outputs to all |
1,500 Vac / 1 minute |
| Maximum power dissipation |
5 W |
| Maximum wire size |
0.5 mm² (20 AWG) with ferrule, 1.5 mm² (16 AWG) without ferrule |
| IP level |
IP 20 |
| Conformal coating |
Yes |
| Operating temperature |
-20 to 60 °C |
| Storage temperature |
-25 to 75°C |
| Operating and storage relative humidity |
5 to 96 %, non-condensing |
| Standards |
IEC 61131-2, CE, Electromagnetic Compatibility (EMC) and Low-Voltage Directive (LVD) |
| Module dimensions (W x H x D) |
215.5 x 98.8 x 34.0 mm |
| Package dimensions (W x H x D) |
270.0 x 102.0 x 40.0 mm |
| Weight |
370 g |
| Weight with package |
430 g |
| Certifications |
|
| General |
CE, UL, UL 61010-2-201, cUL |
| Marine |
DNV |
| Hazardous |
UL C1D2 |
| Power supply |
|
| Nominal input voltage |
24 Vdc |
| Input voltage |
19.2 to 30 Vdc |
| Maximum input current (in-rush) |
50A / 300 us |
| Maximum input current |
300mA |
| Digital inputs |
|
| Input type |
Optoisolated sink type 1. Two isolated groups of 8 inputs each |
| Input voltage |
24 Vdc, 15 to 30 Vdc for logic level 1, 0 to 5 Vdc for logic level 0 |
| Input impedance |
4.95 kΩ |
| Maximum input current |
6.2 mA @ 30 Vdc |
| Input state indication |
Yes |
| Response time |
0.1 ms |
| Input filter |
2 ms to 255 ms – by software. The filter sampling is performed on MainTask (or Refresh function), then it's recommended to use multiple values of the task interval |
| Transistor digital outputs |
|
| Output type |
Optoisolated transistor source type |
| Maximum output current |
1.5 A per output. 12 A total |
| Leakage current |
35 µA |
| On state resistance |
105 mΩ |
| External power supply |
19.2 to 30 Vdc |
| Switching time |
20 us - off-to-on transition @ 24 Vdc. 500 us - on-to-off transition @ 24 Vdc |
| Maximum switching frequency |
250 Hz |
| Configurable parameters |
Yes |
| Output state indication |
Yes |
| Output protections |
Yes, protection against surge voltages |
| Analog inputs |
|
| Input type |
Voltage or current input, single ended, individually configured |
| Data format |
16 bits in two’s complement, justified to the left |
| Converter resolution |
12 bits monotonicity guaranteed, no missing codes |
| Conversion time |
400 us (all V/I and RTD channels enabled) |
| Input state indication |
Yes |
| Module protections |
Yes, protection against surge voltages and polarity inversion |
| Voltage input mode |
|
| Range |
0 to 10 Vdc |
| Engineering scale |
0 to 30,000 |
| Resolution |
2.5 mV |
| Precision |
± 0.3 % of full scale rating @ 25 °C. ± 0.010 % of full scale rating / °C |
| Over scale |
± 3 % of full scale rating |
| Maximum input voltage |
12 Vdc |
| Input impedance |
21 kΩ |
| Configurable parameters |
Signal type per input. Filters |
| Low pass filter time constant |
100 ms, 1 s, 10 s or disabled |
| Current input mode |
|
| Range |
0 to 20 mA, 4 to 20 mA |
| Engineering scale |
0 to 30,000 |
| Resolution |
5.12 µA |
| Precision |
± 0.3 % of full scale rating @ 25 °C. ± 0.015 % of full scale rating / °C |
| Over scale |
± 3 % of full scale rating |
| Maximum input current |
30 mA |
| Input impedance |
119 Ω |
| Configurable parameters |
Signal type per input. Filters |
| Low pass filter time constant |
100 ms, 1 s, 10 s or disabled |
