When an IIoT gateway has to operate in harsher conditions, a standard control cabinet device may not provide the environmental protection or connection options needed for the installation. A rugged gateway can bring data collection, protocol conversion, web access, and control functions together while being designed for wider temperature ranges, higher shock and vibration levels, and demanding installation environments.

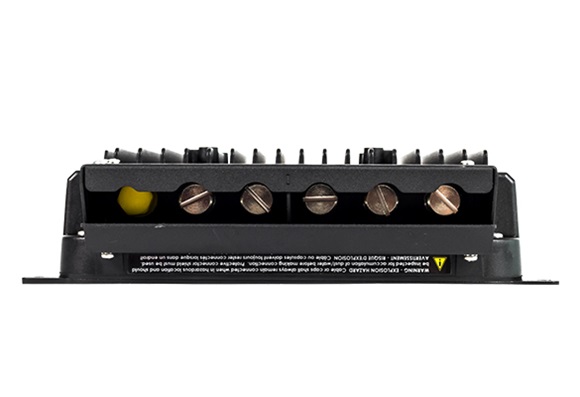

Beijer BoX2 extreme SC, i.MX6Quad Rugged IIoT gateway
The Beijer BoX2 extreme SC is a rugged IIoT gateway that combines industrial connectivity, edge computing, web-based HMI functions, and CODESYS control in one compact platform. It is designed to help connect industrial equipment with control systems, databases, cloud services, and other connected applications.
The gateway supports protocol conversion and cloud connectivity, allowing data to be exchanged between different industrial systems and higher-level services. Its HMI web server provides web-based access to HMI applications, while local data base storage keeps application information available locally. C# scripting and an alarm server provide additional functions for application development and system monitoring.
The BoX2 extreme SC uses an i.MX6Quad Quad ARM Cortex-A9 1.0GHz processor with 2 GB RAM and 2GB SSD(eMMC), 1.5GB free for application. CODESYS runtime version 3.5 supports EtherCAT, Modbus Ethernet, and Modbus RTU, while integrated CODESYS control allows the gateway to perform control tasks alongside its IIoT functions.
For connecting industrial equipment, the unit provides two 10/100 Base-T Ethernet ports using 4-pin M12 connections, two 8-pin M12 serial ports, SD and SDHC support, and two USB 2.0 ports. The serial interfaces support RS 232, RS422/485, and RS 485, giving the gateway options for connecting different types of industrial devices.
The rugged design supports DIN rail, mounting plate, or Vesa mount installation. It operates from 24VDC and is specified for -30°C to +70°C operation, 40g shock, 4g vibration, and 5%–95% non-condensed humidity. IP65 protection, UL Type 1, ATEX Zone 2/22, IECEx Zone 2/22, UL C1D2, and Marine certifications further support the specified industrial, hazardous-area, and marine installation requirements.
Key features
- i.MX6Quad Quad ARM Cortex-A9 1.0GHz processor
- 2 GB RAM with 2GB SSD(eMMC), 1.5GB free for application
- Protocol conversion and cloud connectivity
- HMI web server, local data base storage, C# scripting and alarm server
- Integrated CODESYS control with EtherCAT and Modbus support
- 2 x 10/100 Base-T Ethernet ports with 4 pin M12
- 2 Port 8pin M12 serial communication and 2xUSB 2.0
- IP65 protection with ATEX and IECEx Zone 2/22 certifications
Specifications
| General description |
|
| Part number |
100-0981 |
| Warranty |
Up to 2 years |
| Features |
|
| Protocol conversion |
Yes |
| Cloud connectivity |
Yes |
| HMI web server |
Yes |
| Integrated CODESYS control |
Yes |
| Local data base storage |
Yes |
| C# scripting |
Yes |
| Alarm server |
Yes |
| Certifications |
|
| General |
CE, FCC, KCC |
| Hazardous |
UL C1D2, ATEX (Zone2), ATEX (Zone22), IECEx (Zone2), IECEx (Zone22) |
| Marine |
LR, ABS, BV, DNV GL |
| Safety |
UL 61010-2-201 |
| Mechanical |
|
| Mounting option |
DIN rail/mounting plate/Vesa mount |
| Power |
|
| Input voltage |
24VDC (18-32V DC) |
| Power consumption (max) |
8W |
| Input fuse |
4 AT |
| System |
|
| Hardware platform |
BoX2 extreme |
| CPU |
i.MX6Quad, Quad ARMCortex-A9 1.0GHz 1MBL2cache |
| RAM |
2 GB |
| FLASH |
2GB SSD(eMMC), 1.5GB free for application |
| Softcontrol |
|
| Codesys runtime version |
3.5 |
| Codesys EtherCAT |
Yes |
| Codesys Modbus Ethernet |
Yes |
| Codesys Modbus RTU |
Yes |
| Non volatile variables |
Yes |
| Serial communication |
|
| Number of serial ports |
2 Port 8pin M12 |
| Serial port 1 |
RS 232 |
| Serial port 2 |
RS422/485 |
| Serial port 3 |
RS 485 |
| Ethernet communication |
|
| Number of Ethernet ports |
2 |
| Ethernet port 1 |
1x10/100 Base-T (4 pin M12) |
| Ethernet port 2 |
1x10/100 Base-T (4 pin M12) |
| Expansion interface |
|
| SD card |
SD and SDHC |
| USB |
2xUSB 2.0 500mA (8pin M12) |
| Environmental |
|
| Operating temperature |
-30°C to +70°C |
| Storage temperature |
-40°C to +80°C |
| Shock |
40g, half-sine, 11ms according to IEC60068-2-27 |
| Vibration |
4g, according to IEC 60068-2-6, Test Fc |
| Sealing front |
IP65, UL Type 1 |
| Sealing back |
IP65, UL Type 1 |
| Humidity |
5% – 95% non-condensed |
| Altitude (max) |
< 3000m |
