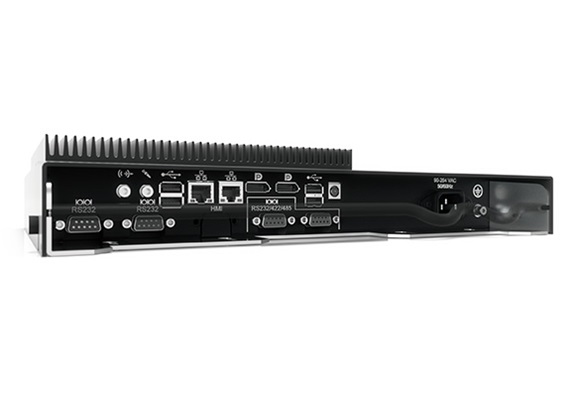

Beijer Wave Performance, Intel Celeron 4305UE 8GB/128GB Box PC

Beijer Wave Performance, Intel Celeron 4305UE. 8GB/128GB Box PC

Beijer Wave Performance, Intel Celeron 4305UE. 8GB/128GB Box PC is a compact industrial computing platform designed for applications that need dependable processing, networking, serial communication, and display connectivity. Its black coated aluminium housing provides a practical enclosure for industrial installations, while the compact 339 x 340 x 60mm mechanical size allows flexible system integration.

The system uses an Intel Celeron 4305UE CPU with DDR4 2400 memory and a standard 8 GB RAM configuration. Storage is provided through 3 x M2 slot + SATA with a standard 128 GB configuration. The configurable system design allows the Box PC to support different installation requirements while maintaining a compact form factor.

For display connectivity, the Beijer Wave Performance provides 2 x Display Port. It also includes 3 Port 9pin DSUB for serial communication, with RS 232 on Serial port 1 and Serial port 2, and RS422/485 on Serial port 3. These interfaces support connection to compatible displays and industrial equipment.

The Box PC provides 2 x 1x10/100/1000 Base-T (shielded RJ45) Ethernet ports for network communication. Its expansion interface includes 2 x USB 3.1 and 2 x USB 3.1, providing connectivity for compatible peripherals and external devices. With a maximum power consumption of 15W, it is designed for applications where efficient industrial computing is required.

The Beijer Wave Performance supports 90-264 VAC (IEC Inlet) with DC single or AC/DC multipower optional. It operates from 0°C - +50°C and supports storage from -20°C - +85°C. With CE and DNV GL certifications, this Box PC is suitable for industrial and marine applications such as automation systems, control stations, monitoring systems, operator environments, and equipment requiring multiple communication interfaces.

Key features

• Intel Celeron 4305UE CPU

• DDR4 2400, configurable size with standard 8 GB

• 3 x M2 slot + SATA with standard 128 GB

• 2 x Display Port

• 3 Port 9pin DSUB serial communication

• 2 x 1x10/100/1000 Base-T (shielded RJ45)

• 2 x USB 3.1 and 2 x USB 3.1

• CE and DNV GL certifications

SPECIFICATION
