Beijer Wave XS, Intel Atom x6425E-8G eMMC64 13.3" Panel PC

Beijer Wave XS, Intel Atom x6425E-8G eMMC64 13.3" Panel PC

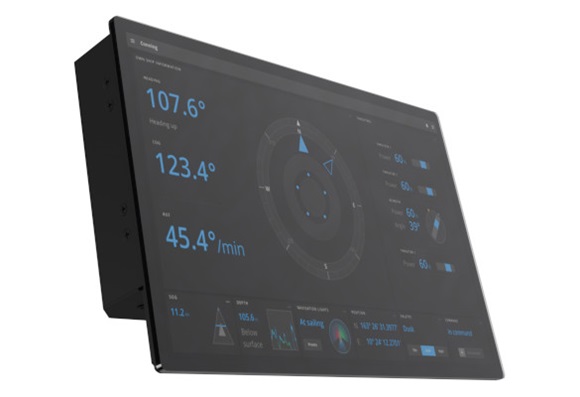

Beijer Wave XS, Intel Atom x6425E-8G eMMC64 13.3" Panel PC is a compact industrial panel PC designed for applications that require a reliable embedded computing platform with a marine-certified design. Its black coated aluminium housing provides a durable enclosure for use in industrial and marine environments, while the 18 - 36 VDC input supports integration into suitable DC-powered systems.

The system provides 4GB 3200MT7s LPDDRx onboard memory for embedded computing tasks. Its two serial ports support serial communication, with Serial port 1 specified as RS 232. This makes the panel PC suitable for connecting compatible industrial equipment and serial-based devices in control and monitoring applications.

The Beijer Wave XS provides two Gigabit Ethernet ports using shielded RJ45 connections for network communication. It also includes 1x USB 3.1 Gen2 Type C and 2 x USB 3.1 Gen 2 Type A ports, providing options for connecting compatible peripherals and external devices. These interfaces support flexible integration into industrial systems where wired networking and USB connectivity are required.

The panel PC is designed for applications where stable operation across a wide temperature range is important. It supports an operating temperature of -15°C to +70°C and the same storage temperature range. With IP20 sealing at the back and 10% - 90 % non condensing humidity support, it can be integrated into suitable indoor and protected industrial installations.

With CE and DNV certifications, the Beijer Wave XS can be used in industrial and marine applications that require certified equipment. Its 18 - 36 VDC input, compact panel PC format, serial communication, dual Ethernet ports, and multiple USB interfaces make it suitable for control panels, monitoring systems, operator stations, industrial automation, and marine equipment installations.

Key features

• Intel Atom x6425E-8G eMMC64 13.3" Panel PC

• 4GB 3200MT7s LPDDRx onboard memory

• 2 Port 9pin DSUB serial communication

• 2 x 1x10/100/1000 Base-T (shielded RJ45)

• 1x USB 3.1 Gen2 Type C, 2 x USB 3.1 Gen 2 Type A

• 18 - 36 VDC input voltage

• Operating temperature -15°C to +70°C

• CE and DNV certifications
