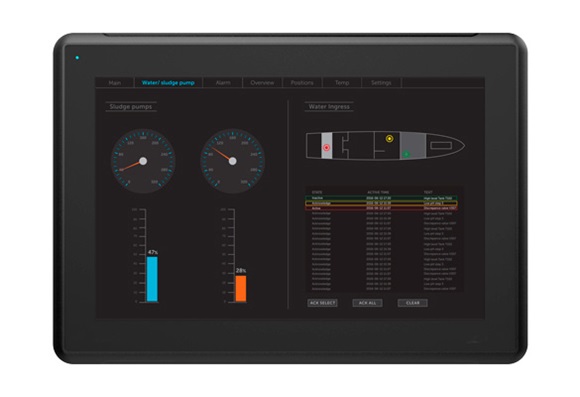

Beijer X2 marine 15 HB SC, 1280x800 pixels 15.4'' HMI with iX runtime

Beijer X2 marine 15 HB SC, 1280x800 pixels 15.4'' HMI with iX runtime

The Beijer X2 marine 15 HB SC is a 15.4-inch HMI designed for marine and industrial control applications where operators need a clear interface for monitoring and controlling connected equipment. Its 1280x800-pixel TFT-LCD display provides a large working area, while the resistive touchscreen allows operation through a durable touch interface. The marine optimized dimming and 1000 cd/m2 brightness are useful when the display needs to remain readable in different onboard lighting conditions.

The HMI uses an X2 hardware platform with an i.MX6Quad Quad ARM Cortex-A9 1.0GHz processor, 2GB RAM, and 2GB SSD (eMMC), with 1.5GB free for applications. It supports CODESYS runtime 3.5, allowing the panel to work with automation software and connected control systems. CODESYS EtherCAT, Modbus Ethernet, Modbus RTU, and CANopen support provide several options for communication with industrial devices and automation equipment.

The Beijer X2 marine 15 HB SC also provides a practical range of communication interfaces for control environments. It has two Ethernet ports, serial communication through RS232 and RS422/485, two CAN ports, two USB 2.0 ports, SD and SDHC support, and a ciX expansion module interface. Two solid-state relay digital outputs are also available, helping the HMI interact with connected control equipment where required.

For marine applications, the display and enclosure are designed with environmental requirements in mind. The powder-coated aluminum housing provides a durable enclosure, while the front sealing is rated IP65, NEMA 4X/12 and UL 50E Type 4X/12. The unit also supports a wide operating temperature range of -10°C to +60°C, along with shock and vibration specifications according to IEC60068-2-27 and IACS E10. Marine certifications including KR, LR, ABS, CCS, NK, and DNV GL support its use in marine equipment and control environments.

The large 15.4-inch screen, marine optimized dimming, multiple industrial communication interfaces, and CODESYS support make the X2 marine 15 HB SC suitable for operator control and monitoring applications where space, visibility, and connectivity are important. It can be used as an HMI interface for marine automation systems, machinery control panels, monitoring stations, and other industrial control installations requiring a marine-oriented operator panel.

Key features

• 15.4" diagonal TFT-LCD with 1280x800 pixels

• 1000 cd/m2 backlight brightness

• Marine optimized dimming

• i.MX6Quad, Quad ARM Cortex-A9 1.0GHz processor

• CODESYS runtime 3.5 with EtherCAT, Modbus and CANopen support

• 2x 10/100 Base-T shielded RJ45 Ethernet ports

• 2x CAN ports and serial communication interfaces

• Marine certifications including KR, LR, ABS, CCS, NK, DNV GL
