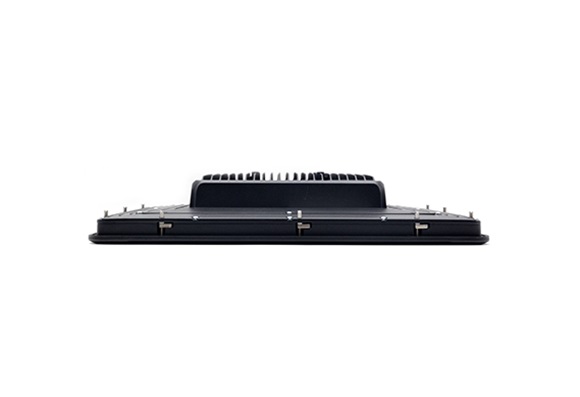

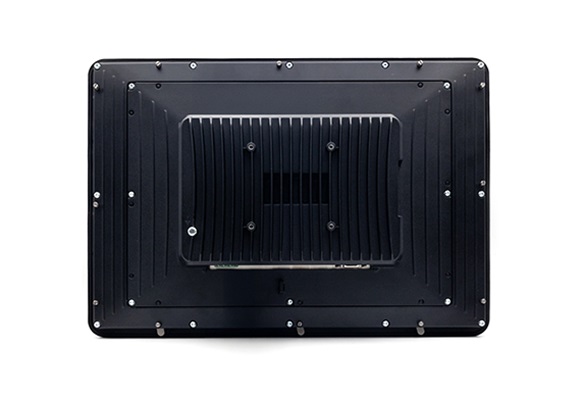

Beijer X3 marine 15 P, 1280x800 pixels 4GB/32GB 15'' HMI with iX app

When a marine operator needs a clear HMI for monitoring and control but the installation also requires reliable touch operation, multiple communication interfaces, and protection against harsh environmental conditions, a standard industrial display may not provide the required combination. A marine HMI needs to support practical operator interaction while fitting securely into control panels and working reliably in demanding onboard environments.

Beijer X3 marine 15 P, 1280x800 pixels 4GB/32GB 15'' HMI with iX app

The Beijer X3 marine 15 P is a 15.4" HMI with a 1280x800 pixel resolution, 4 GB RAM, and 32 GB eMMC storage. It uses an i.MX 8M Plus Quad Cortex®-A53 1,6GHz CPU and a resistive touchscreen designed for operator interaction. The TFT-LCD with LED backlight provides 450 cd/m2 brightness and supports Marine Wide Dimming for marine visualization applications.

The HMI provides multiple communication options for integration with industrial and marine equipment. It includes 2 Port 9pin DSUB serial communication, with RS 232 (RTS/CTS), RS422/RS485/CAN, and RS485/CAN interfaces, along with two 10/100/1000 Base-T Ethernet ports. The SD card and USB interfaces provide additional options for system expansion and connecting compatible devices.

The Beijer X3 marine 15 P is designed for panel-based operator environments where dependable interaction and clear visualization are required. Its Panel Mount / VESA 75 x75 mounting option allows integration into suitable control systems, while the 394 x 270 mm cut-out size supports panel installation. The powder-coated aluminum, Black housing provides a practical enclosure for marine and industrial installations.

The HMI supports a 24 VDC (18 to 32 VDC) input and has a typical power consumption of 21W with a maximum of 26W. It is designed to operate from -10°C to 60°C and store from -20°C to 70°C. The front sealing is IP65/Type4X/Type12, while the back is IP20, supporting installations where front-side protection is required.

With CE, FCC, KCC, DNV, ABS, LR, BV, NK, CCS, KR, and UL 61010-2-201 certifications, the Beijer X3 marine 15 P is suited to marine HMI applications requiring operator control, equipment monitoring, industrial automation, vessel systems, and marine control panels. Its marine certifications, communication interfaces, resistive touch operation, and environmental specifications make it suitable for demanding onboard control environments.

Key features

• 15.4" diagonal TFT-LCD with LED backlight

• 1280x800 pixels resolution

• i.MX 8M Plus Quad Cortex®-A53 1,6GHz CPU

• 4 GB RAM and 32 GB eMMC

• Resistive touch with 1million finger touch operations

• 2 x 10/100/1000 Base-T (shielded RJ45)

• RS 232, RS422/RS485/CAN, and RS485/CAN communication

• IP65/Type4X/Type12 front sealing

SPECIFICATION
