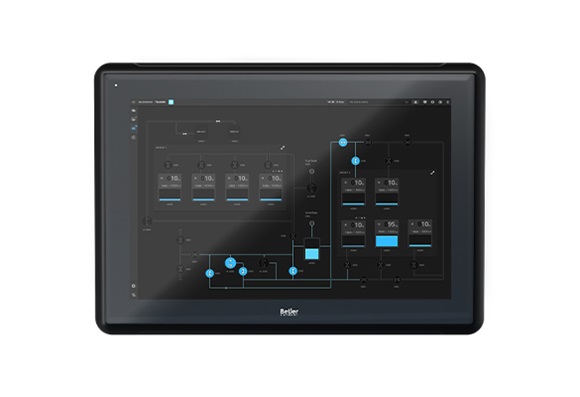

Beijer X3 marine 15 P CT, 1280x800 pixels 4GB/32GB 15.4" PCAP HMI with iX app

Beijer X3 marine 15 P CT, 1280x800 pixels 4GB/32GB 15.4" PCAP HMI with iX app

Beijer X3 marine 15 P CT is a 15.4-inch PCAP HMI designed for marine and industrial operator applications where clear visualization and responsive touch control are required. It features a 1280x800 pixel TFT-LCD display with LED backlight, 450 cd/m2 brightness, and capacitive touch operation. The system combines 4 GB RAM and 32 GB eMMC flash with an i.MX 8M Plus Quad Cortex®-A53 1,6GHz processor.

The 15.4-inch display provides a practical interface for monitoring, control, and visualization tasks. Its capacitive touchscreen supports intuitive operator interaction, while Marine Wide Dimming allows the LED backlight to be adjusted for marine operating conditions. The display has a 50000-hour backlight life time and Class I pixel error according to ISO 9241-307.

Beijer X3 marine 15 P CT provides two 10/100/1000 Base-T Ethernet ports for network communication and multiple serial communication interfaces for connected equipment. It includes RS 232, RS422, RS485, and CAN communication options, along with one SD card, one USB Host 3.0, and one USB Host 2.0 interface. These interfaces support connection to a range of industrial and marine systems.

The HMI supports Panel Mount and VESA 75 x75 mounting options. Its powder-coated black aluminum housing measures 410 x 286 x 74 mm and weighs 3,7 kg. The front sealing is IP65/Type4X/Type12, while the back is IP20, making the unit suitable for marine and industrial installation environments where protection from dust and water is required at the front.

Beijer X3 marine 15 P CT operates from a 24 VDC input with an 18 to 32 VDC range and has typical power consumption of 21W and maximum power consumption of 26W. It carries DNV, ABS, LR, BV, NK, CCS, and KR marine certifications, together with CE, FCC, KCC, and UL 61010-2-201 safety certification. The HMI operates from -10°C to 60°C and supports 15g shock and 1g vibration according to the specified standards.

Key features

• 15.4" diagonal TFT-LCD with 1280x800 pixels

• Capacitive touchscreen with Marine Wide Dimming

• i.MX 8M Plus Quad Cortex®-A53 1,6GHz CPU

• 4 GB RAM and 32 GB eMMC flash

• 2 x 10/100/1000 Base-T shielded RJ45 Ethernet ports

• RS 232, RS422, RS485, and CAN communication

• 1 x USB Host 3.0 and 1 x USB Host 2.0

• DNV, ABS, LR, BV, NK, CCS, and KR marine certifications
