When a marine control system needs a large operator display with clear visualization, dependable touch interaction, and multiple communication interfaces, the HMI needs to fit both the operational and installation requirements. A marine-rated panel HMI can provide the display area, connectivity, and environmental protection needed for control panels, monitoring stations, and onboard equipment.

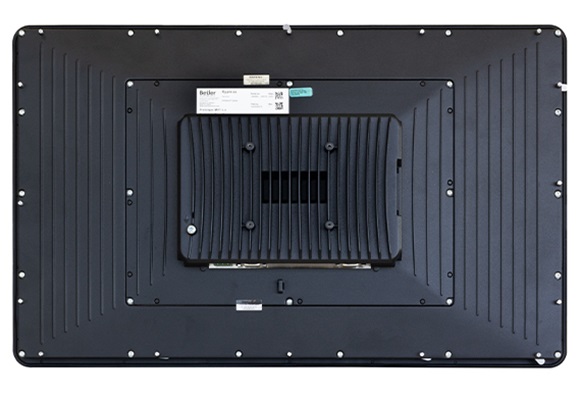

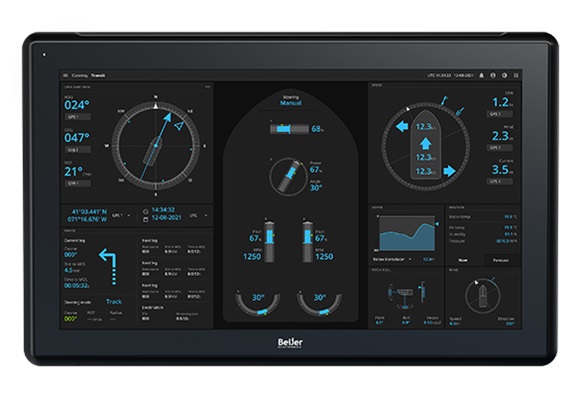

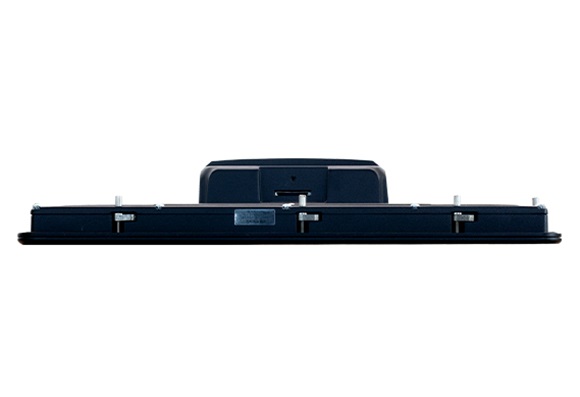

Beijer X3 marine 21 P, 1920x1080 pixels 4GB/32GB 21'' HMI with iX app
The Beijer X3 marine 21 P provides a 21.5" diagonal display with 1920x1080 pixels and a resistive touch interface. Its TFT-LCD with LED backlight delivers 300 cd/m2 brightness, while Marine Wide Dimming supports display adjustment for marine operating environments. The system uses an i.MX 8M Plus Quad Cortex®-A53 1,6GHz CPU with 4 GB RAM and 32 GB eMMC storage.
The HMI provides multiple interfaces for connecting marine and industrial equipment. It includes 2 Port 9pin DSUB serial communication with RS 232 (RTS/CTS), RS422/RS485/CAN, and RS485/CAN interfaces, along with two 10/100/1000 Base-T Ethernet ports. The SD card and USB Host interfaces provide additional connectivity for compatible devices and system expansion.
The 21.5" display provides a larger viewing area for operator interfaces, monitoring screens, and control applications where clear information visibility is important. Panel Mount / VESA 75 x75 mounting options allow the unit to be integrated into suitable control systems, while the 539 x 331 mm cut-out size supports panel installation.
The Beijer X3 marine 21 P operates from 24 VDC (18 to 32 VDC) and has typical power consumption of 24W with a maximum of 28W. It supports operating temperatures from -10°C to 50°C and storage temperatures from -20°C to 70°C. The front sealing is IP65/Type4X/Type12, providing protection for the front of the HMI in suitable installations.
Key features
-
21.5" diagonal TFT-LCD with LED backlight
-
1920x1080 pixels resolution
-
i.MX 8M Plus Quad Cortex®-A53 1,6GHz CPU
-
4 GB RAM and 32 GB eMMC
-
Resistive touch with 1million finger touch operations
-
2 x 10/100/1000 Base-T (shielded RJ45)
-
RS 232, RS422/RS485/CAN, and RS485/CAN communication
-
IP65/Type4X/Type12 front sealing
Specifications
| General description |
|
| Part number |
640002415 |
| Certifications |
|
| General |
CE, FCC, KCC |
| Marine |
DNV, ABS, LR, BV, NK, CCS, KR |
| Safety |
UL 61010-2-201 |
| Mechanical |
|
| Mechanical size |
556 x 347 x 78 mm |
| Mounting option |
Panel Mount / VESA 75 x75 |
| Number of touches |
1million finger touch operations |
| Touch type |
Resistive |
| Cut-out size |
539 x 331 mm |
| Weight |
6,4 kg |
| Housing material |
Powder-coated aluminum, Black |
| Power |
|
| Input voltage |
24 VDC (18 to 32 VDC) |
| Power consumption (max) |
typ- 24W / max. 28W |
| Input fuse |
Internal DC fuse, 4 AT |
| System |
|
| Hardware platform |
P |
| CPU |
i.MX 8M Plus Quad Cortex®-A53 1,6GHz |
| RAM |
4 GB |
| FLASH |
32 GB eMMC |
| Cybersecurity |
Cybersecurity design based on IEC 62443-4-2 |
| Display |
|
| Touch type |
Resistive |
| Size diagonal |
21,5" diagonal |
| Resolution |
1920x1080 pixels |
| Backlight |
LED Backlight |
| Backlight life time |
50000 hours |
| Backlight brightness |
300 cd/m2 |
| Backlight dimming |
Marine Wide Dimming |
| Display type |
TFT-LCD with LED backlight |
| Display pixel error |
Class I, according to ISO 9241-307 |
| Serial communication |
|
| Number of serial ports |
2 Port 9pin DSUB |
| Serial port 1 |
RS 232 (RTS/CTS) |
| Serial port 2 |
RS422/RS485/CAN |
| Serial port 3 |
RS485/CAN |
| Ethernet communication |
|
| Number of Ethernet ports |
2 |
| Ethernet port 1 |
1x10/100/1000 Base-T (shielded RJ45) |
| Ethernet port 2 |
1x10/100/1000 Base-T (shielded RJ45) |
| Expansion interface |
|
| SD card |
1 x SD card |
| USB |
1 x USB Host 3.0, 1 x USB Host 2.0 |
| Environmental |
|
| Operating temperature |
-10°C to 50°C |
| Storage temperature |
-20°C to 70°C |
| Shock |
15g, half-sine, 11ms according to IEC60068-2-27 |
| Vibration |
1g, according to IACS E10 |
| Sealing front |
IP65/Type4X/Type12 |
| Sealing back |
IP20 |
| Humidity |
5% – 85% non-condensed @25°C |
| Altitude (max) |
< 3000m |
