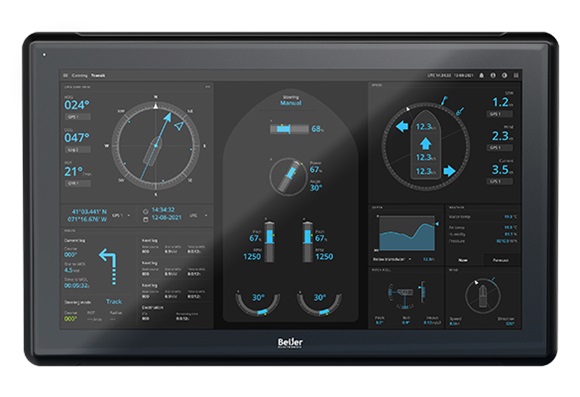

Beijer X3 marine 21 P CT, 1920x1080 pixels 4GB/32GB 21.5'' PCAP HMI with iX app

Beijer X3 marine 21 P CT, 1920x1080 pixels 4GB/32GB 21'' PCAP HMI with iX app

Beijer X3 marine 21 P CT is a 21.5-inch PCAP HMI designed for marine and industrial operator applications requiring a large display and responsive touch control. It features a 1920x1080 pixel TFT-LCD display with LED backlight, 300 cd/m2 brightness, and capacitive touch operation. The system combines an i.MX 8M Plus Quad Cortex®-A53 1,6GHz CPU with 4 GB RAM and 32 GB eMMC flash.

The 21.5-inch display provides a large interface for monitoring, visualization, and operator control. Its capacitive touchscreen supports convenient interaction, while Marine Wide Dimming allows the LED backlight to be adjusted for marine operating conditions. The backlight has a life time of 50000 hours, and the display provides Class I pixel error according to ISO 9241-307.

Beijer X3 marine 21 P CT provides two 10/100/1000 Base-T Ethernet ports and multiple serial communication interfaces for connection to marine and industrial equipment. Serial communication includes RS 232, RS422, RS485, and CAN. The HMI also provides one SD card interface, one USB Host 3.0, and one USB Host 2.0 for expansion and connected devices.

The HMI supports Panel Mount and VESA 75 x75 mounting options. Its powder-coated black aluminum housing measures 556 x 347 x 78 mm and weighs 6,4 kg. The front sealing is IP65/Type4X/Type12, while the back is IP20. This mounting and housing design supports installation in marine control panels and other industrial environments.

Beijer X3 marine 21 P CT operates from a 24 VDC input with an 18 to 32 VDC range, with typical power consumption of 24W and maximum power consumption of 28W. It carries DNV, ABS, LR, BV, NK, CCS, and KR marine certifications, along with CE, FCC, KCC, and UL 61010-2-201 safety certification. The HMI operates from -10°C to 60°C and supports 15g shock and 1g vibration according to the specified standards. The product has an Active life cycle status and a warranty of up to 2 years.

Key features

• 21.5" diagonal TFT-LCD with 1920x1080 pixels

• Capacitive PCAP touchscreen with Marine Wide Dimming

• i.MX 8M Plus Quad Cortex®-A53 1,6GHz CPU

• 4 GB RAM and 32 GB eMMC flash

• 2 x 10/100/1000 Base-T shielded RJ45 Ethernet ports

• RS 232, RS422, RS485, and CAN communication

• 1 x USB Host 3.0 and 1 x USB Host 2.0

• DNV, ABS, LR, BV, NK, CCS, and KR marine certifications
