Beijer X3 marine 21 web P, 1920x1080 pixels, 4GB/32GB 21.5'' HMI

Beijer X3 marine 21 web P, 1920x1080 pixels, 4GB/32GB 21.5'' HMI

Beijer X3 marine 21 web P is a 21.5-inch marine HMI designed for industrial and marine applications where clear visualization and reliable operator interaction are required. It features a 1920x1080 pixel TFT-LCD display with LED backlight, 300 cd/m2 brightness, and resistive touch operation. The 4GB RAM and 32GB eMMC provide the system with the required onboard resources for its hardware platform.

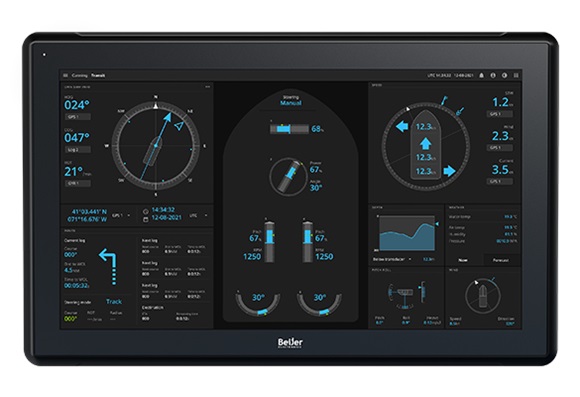

The 21.5-inch display provides a clear 1920x1080 pixel viewing area for monitoring and operating connected systems. Its resistive touchscreen supports up to 1 million finger touch operations, while Marine Wide Dimming allows the backlight to be adjusted for different operating conditions. The LED backlight has a rated life of 50,000 hours for long-term display operation.

Beijer X3 marine 21 web P is built around an i.MX 8M Plus Quad Cortex-A53 1.6GHz processor with 4GB RAM and 32GB eMMC flash storage. It provides two 10/100/1000 Base-T Ethernet ports, one USB Host 3.0, one USB Host 2.0, and an SD card interface for connectivity and expansion. The cybersecurity design is based on IEC 62443-4-2.

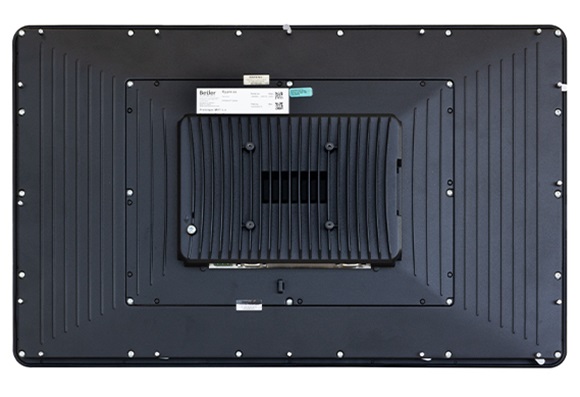

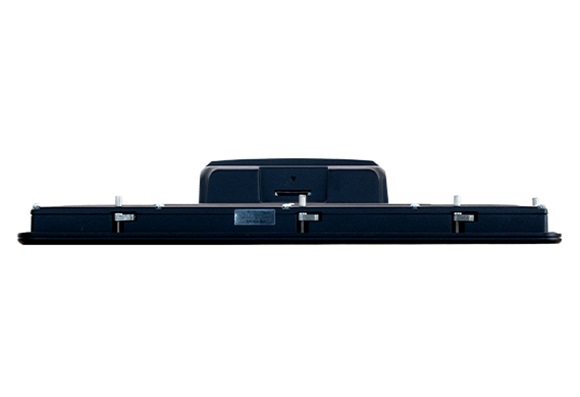

The HMI supports panel mounting and VESA 75 x75 mounting, making it suitable for different installation environments. Its powder-coated black aluminum housing measures 556 x 347 x 78 mm and weighs 6.4 kg. The front sealing is rated IP65/Type4X/Type12, while the back is rated IP20, supporting use in demanding industrial and marine environments.

Designed with marine requirements in mind, Beijer X3 marine 21 web P carries DNV, ABS, LR, BV, NK, CCS, and KR marine certifications, along with CE, FCC, KCC, and UL 61010-2-201 safety certification. It operates from 24 VDC with an 18 to 32 VDC input range and has a maximum power consumption of 28W. Its operating temperature range of -10°C to 50°C, shock resistance of 15g, and vibration resistance of 1g according to IACS E10 support dependable operation in marine and industrial installations.

Key features

• 21.5" diagonal TFT-LCD with 1920x1080 pixels

• i.MX 8M Plus Quad Cortex®-A53 1,6GHz CPU

• 4 GB RAM and 32 GB eMMC flash

• Resistive touchscreen with 1million finger touch operations

• 2 x 10/100/1000 Base-T shielded RJ45 Ethernet ports

• 1 x USB Host 3.0 and 1 x USB Host 2.0

• DNV, ABS, LR, BV, NK, CCS, and KR marine certifications

• IP65/Type4X/Type12 front sealing
