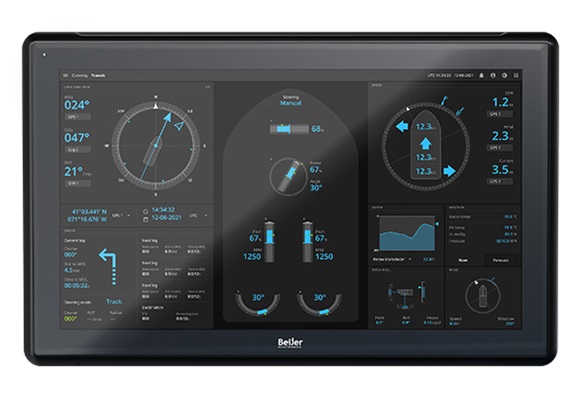

Beijer X3 marine 21 web P CT, 1920x1080 pixels 4GB/32GB 15'' web client PCAP HMI

Beijer X3 marine 21 web P CT, 1920x1080 pixels 4GB/32GB 15'' web client PCAP HMI

Beijer X3 marine 21 web P CT is a web client PCAP HMI designed for marine and industrial applications requiring clear visualization, touch control, and reliable network connectivity. It features a TFT-LCD display with 1920x1080 pixel resolution, LED backlight, 300 cd/m2 brightness, and capacitive touch technology. The system is powered by an i.MX 8M Plus Quad Cortex®-A53 1,6GHz CPU with 4 GB RAM and 32 GB eMMC flash.

The display provides a large interface for monitoring, visualization, and operator control. Its capacitive touchscreen supports convenient interaction, while Marine Wide Dimming provides backlight adjustment for marine operating conditions. The LED backlight has a life time of 50000 hours, and the display uses Class I pixel error according to ISO 9241-307.

Beijer X3 marine 21 web P CT provides two 10/100/1000 Base-T shielded RJ45 Ethernet ports for network communication. It also includes one SD card interface, one USB Host 3.0, and one USB Host 2.0 for expansion and connection to external devices. These interfaces make it suitable for marine control systems and industrial applications requiring networked operator interfaces.

The HMI supports Panel Mount and VESA 75 x75 mounting options. Its powder-coated black aluminum housing measures 556 x 347 x 78 mm and weighs 6,4 kg. The front sealing is IP65/Type4X/Type12, while the back is IP20, supporting installation in marine and industrial environments where front-side protection is required.

Beijer X3 marine 21 web P CT operates from a 24 VDC input with an 18 to 32 VDC range, with typical power consumption of 24W and maximum power consumption of 28W. It carries DNV, ABS, LR, BV, NK, CCS, and KR marine certifications, along with CE, FCC, KCC, and UL 61010-2-201 safety certification. The HMI operates from -10°C to 60°C and supports 15g shock and 1g vibration according to the specified standards. The product has an Active life cycle status and a warranty of up to 2 years.

Key features

• 21,5" diagonal TFT-LCD with 1920x1080 pixels

• Capacitive PCAP touchscreen with Marine Wide Dimming

• i.MX 8M Plus Quad Cortex®-A53 1,6GHz CPU

• 4 GB RAM and 32 GB eMMC flash

• 2 x 10/100/1000 Base-T shielded RJ45 Ethernet ports

• 1 x USB Host 3.0 and 1 x USB Host 2.0

• DNV, ABS, LR, BV, NK, CCS, and KR marine certifications

• IP65/Type4X/Type12 front sealing
