Tired of slow or unreliable connections in your data center? The Belden MF3MMA1007MRMN, Male To Male, 12F Multi Mode OM3 7m Fiber Patch Cord gives you a fast, stable link that keeps your network running smoothly. This 7-meter, 12-fiber OM3 patch cord is made for high-speed data, video and voice traffic. If you have been dealing with frequent drops or weak signals, you need a cable that can handle the load without loss.

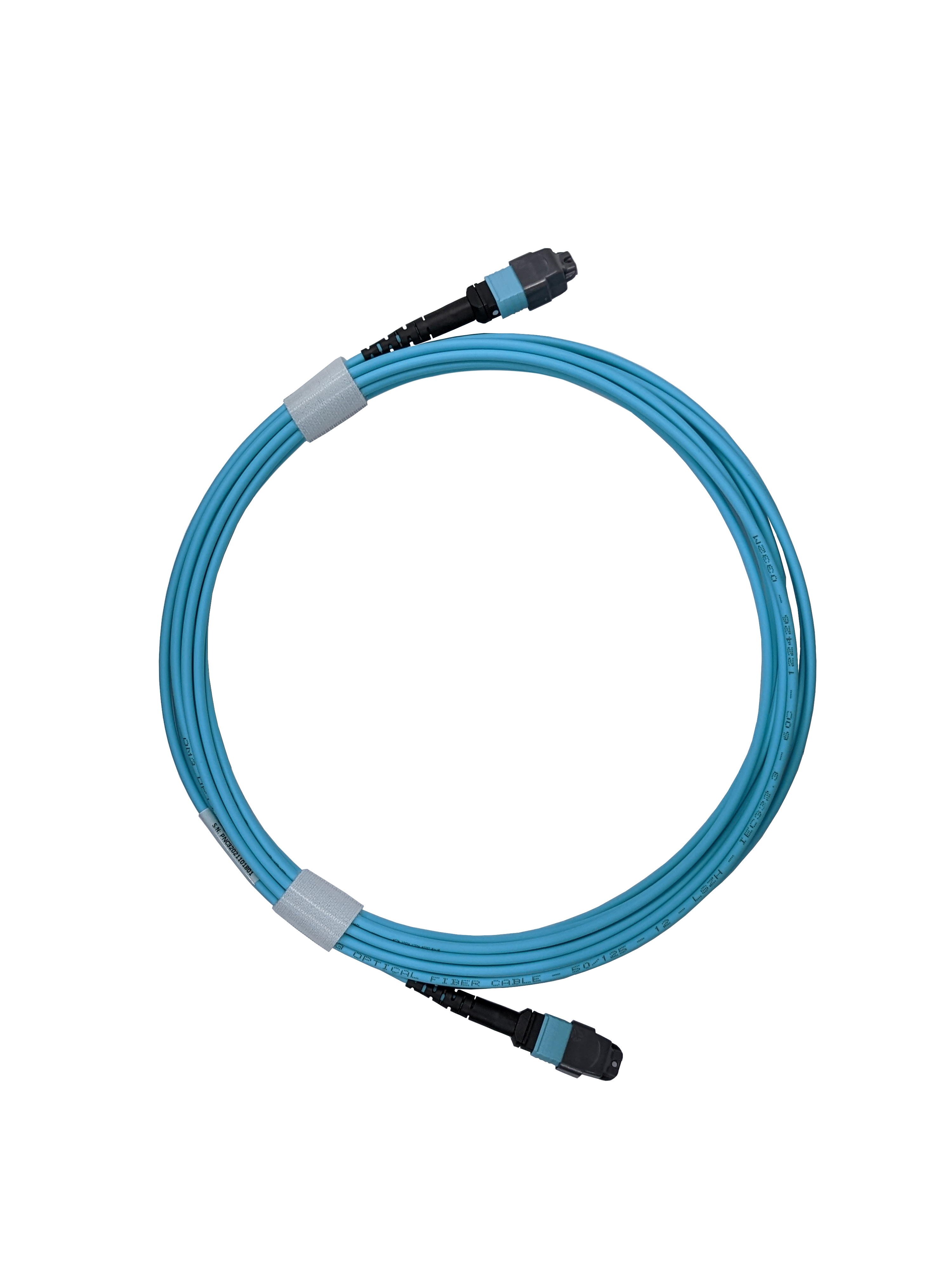

Belden MF3MMA1007MRMN, Male To Male, 12F Multi Mode OM3 7m Fiber Patch Cord
Network managers often struggle with signal loss when cables are too long or of low quality. That loss can cause downtime, lost productivity and higher maintenance costs. This problem matters because every minute of downtime can cost your business money. The Belden patch cord solves the issue with low insertion loss (0.30 dB) and high return loss (30 dB), ensuring a clean signal over the full 7 meters. It meets TIA/EIA and ISO/IEC standards, so you get a reliable, compliant solution that fits any modern data-center design.
Usages of Belden
This cable works well in data centers where you need to connect switches, servers and storage arrays. It is perfect for main equipment rooms that require high-speed links between racks. Telecommunications rooms can also use it to link patch panels to optical transceivers. Because the jacket is aqua-colored PVC, it is easy to spot in crowded cable trays, helping you keep installations organized.
Benefits
- Fast data transfer up to 10 Gbps, keeping your applications responsive.
- Low signal loss means fewer errors and less need for repeaters.
- Clear aqua color and black boots make installation and troubleshooting simple.
- Meets industry standards, so you stay compliant without extra testing.
Key Features
- 12-fiber OM3 multimode construction.
- 7 meter length for flexible rack-to-rack connections.
- Male-to-male connectors with aqua housing and black boots.
- Maximum insertion loss of 0.30 dB.
- Minimum return loss of 30 dB.
- Crush resistance: 350 N/100 mm short term, 70 N/100 mm long term.
- Minimum bend radius: 20 OD during installation, 10 OD in operation.
- Indoor use only, with OFNR fire rating.
- Compliant with TIA-568.3-D, ISO/IEC 11801, IEC 61754-7 and RoHS 2.
Specifications
| OVERVIEW |
|
| Suitable Applications |
Data Centers, Main Equipment Rooms, Telecommunications Rooms |
| FIBER SPECIFICATIONS |
|
| Fiber Type |
OM3 |
| Fiber Count |
12 |
| CONNECTORS |
|
| Connector A (Inside End) - Housing Color |
Aqua |
| Connector A (Inside End) - Boot Color |
Black |
| Connector B (Outside End) - Housing Color |
Aqua |
| Connector B (Outside End) - Boot Color |
Black |
| ASSEMBLY CABLE |
|
| Jacket Color |
Aqua |
| FIBER CONNECTOR PERFORMANCE |
|
| Max. Insertion Loss |
0.30 dB |
| Min. Return Loss |
30 dB |
| BEND RADIUS |
|
| Minimum Bend Radius During Installation |
20 x OD |
| Minimum Bend Radius During Operation |
10 x OD |
| CRUSH RESISTANCE |
|
| Crush Resistance |
350 N/100mm (Short Term), 70 N/100mm (Long Term) |
| TEMPERATURE SPECIFICATIONS |
|
| Operating Temperature Range |
-20°C to +60°C |
| Storage Temperature Range |
-20°C to +60°C |
| ENVIRONMENTAL SPECIFICATIONS |
|
| Environmental Suitability |
Indoor |
| FLAMMABILITY / REACTION TO FIRE |
|
| Flammability / Reaction to Fire |
OFNR |
| COMPLIANCE |
|
| TIA/EIA Compliance |
TIA 568.3-D |
| ISO/IEC Compliance |
ISO/IEC 11801IEC 61754-7 |
| European Directive Compliance |
EU Directive 2011/65/EU (RoHS 2) |
| RELATED PARTS |
|
| Notes |
Outer Jacket Material: PVC - Polyvinyl Chloride, Tensile Strength : 100 N (Short Term), 30 N
(Long Term)
|
| UPDATE AND REVISION |
|
| Revision Number |
0.20 |
| Revision Date |
12-07-2023 |
