Tired of slow, unreliable connections in your data center? The Belden PFSLDSDxxxML2XY, FiberExpress Fiber Patch Cord, OS2, LC Duplex -SC Duplex gives you a fast, stable link that keeps your network humming. This duplex fiber patch cord is built for high-speed data, voice, and video traffic. If you have dropped signals, high loss, or mismatched connectors, you need a cable that meets strict standards and fits both LC and SC ports without a fuss.

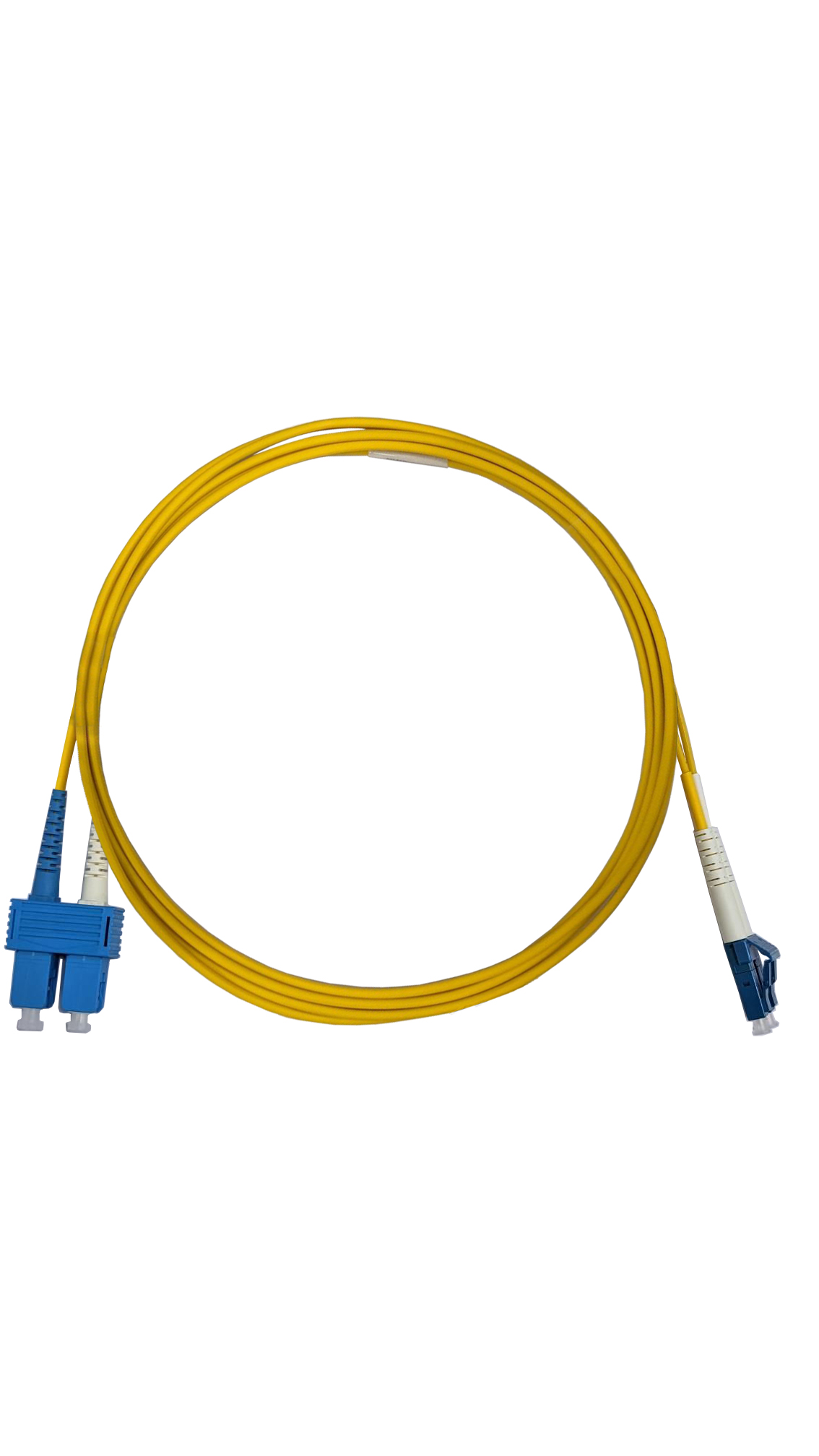

Belden PFSLDSDxxxML2XY, FiberExpress Fiber Patch Cord, OS2, LC Duplex -SC Duplex
This cable solves the problem of inconsistent optical performance in crowded equipment rooms. When loss climbs above 0.3 dB, your applications can lag or fail, costing time and money. The Belden patch cord delivers low insertion loss and high return loss, so you get clean signals and fewer troubleshooting trips. It works with OS2 single-mode fiber, LC duplex on the inside end and SC duplex on the outside end, giving you a ready-to-plug solution for any mixed-connector environment.
Benefits
- Ultra-low loss (0.3 dB) keeps data fast and error-free.
- High return loss (55 dB) reduces signal reflections and improves reliability.
- Dual connectors (LC inside, SC outside) let you connect different panels without extra adapters.
- Yellow jacket and color-coded boots make identification quick during installation.
- Indoor-rated, flame-tested design meets IEC 60332-1-2 for safety in tight spaces.
Usages
Use this patch cord in data centers to link servers to top-of-rack switches. It fits main equipment rooms where long runs need single-mode performance. In telecommunications closets, the LC-to-SC transition saves you from buying separate adapters. Work area patch panels also benefit from the clear labeling and robust construction, making routine moves, adds, and changes faster and safer.
Key Features
- OS2 single-mode fiber, 9 m core, 2-fiber count.
- LC duplex connector (white boot) on the inside end.
- SC duplex connector (blue boot) on the outside end.
- Maximum insertion loss 0.3 dB per connector.
- Minimum return loss 55 dB per connector.
- Crush resistance 500 N/100 mm for rugged handling.
- Halogen-free, RoHS-2 compliant for environmentally safe installations.
- Indoor use only, with IEC 60332-1-2 fire rating.
Specifications
| PRODUCT OVERVIEW |
|
| Suitable Applications |
Data Centers, Main Equipment Rooms, Telecommunications Rooms and Work Area |
| FIBER SPECIFICATIONS |
|
| Fiber Type |
OS2 |
| Fiber Core Diameter |
9 µm |
| Fiber Count |
2 |
| PHYSICAL SPECIFICATIONS |
|
| Connector A (Inside End) - Type |
LC Duplex |
| Connector A (Inside End) - Boot Color |
White |
| Connector B (Outside End) - Type |
SC Duplex |
| Connector B (Outside End) - Boot Color |
Blue |
| Jacket Color |
Yellow |
| OPTICAL CHARACTERISTICS |
|
| Polarity Identification |
A/B |
| FIBER CONNECTOR PERFORMANCE |
|
| Connector A (Inside End) - Connector Type |
LC Duplex |
| Connector A (Inside End) - Max. Insertion Loss |
0.3 dB |
| Connector A (Inside End) - Min. Return Loss |
55 dB |
| Connector B (Outside End) - Connector Type |
SC Duplex |
| Connector B (Outside End) - Max. Insertion Loss |
0.3 dB |
| Connector B (Outside End) - Min. Return Loss |
55 dB |
| MECHANICAL CHARACTERISTICS |
|
| Crush Resistance |
500N/100mm |
| STANDARDS AND COMPLIANCE |
|
| Environmental Suitability |
Indoor |
| Flammability / Reaction to Fire |
IEC 60332-1-2 |
| TIA/EIA Compliance |
TIA 604-10 & TIA 604-3, TIA-568.3-D |
| ISO/IEC Compliance |
IEC 61754-20IEC 61754-4IEC 60793-2-10IEC 60794-2-50 |
| European Halogen Free Standards |
IEC 60754-1 - Halogen Amount = IEC 60754 |
| European Directive Compliance |
EU Directive 2011/65/EU (RoHS 2) |
