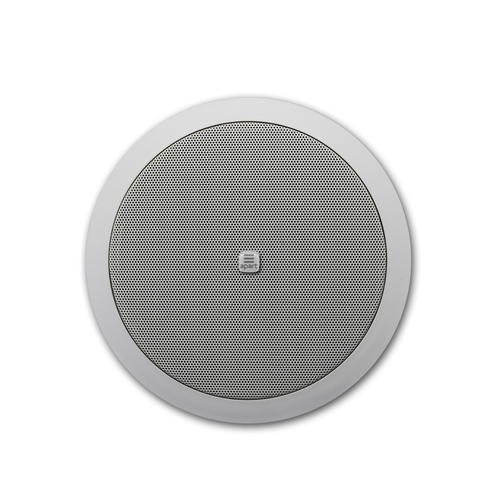

The CM20T two-way built-in loudspeaker can be used as a 16 ohms or 100 volt loudspeaker. In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier. For 100 volt use, the CM20T is equipped with a high-quality 20 watts 100 volt transformer with several power tappings (20 – 10 – 5 – 2.5 watts). Therefore it can be used in projects with high ceilings or places with background noise where a little more power is needed.
The loudspeaker has a 6.5” enforced polypropylene woofer what results in a very low distortion. To complete the sound, a 1” tweeter has been integrated. It makes the CM20T very suitable for the distribution of microphone calls and background music.
The housing is made of high-quality ABS. The woofer is made from enforced polypropylene, what makes it moisture-proof. The aluminum grill makes CM20T humidity proof and ideal to be used in bathrooms, kitchens... The loudspeaker is easy to install, due to its simple, quick mounting system with only 3 screws. These screws are hidden behind the loudspeaker grill, what gives the loudspeaker a modern and striking design.
This loudspeaker is now updated with a new Quick Fix connector and transformer tapping sticker for an even faster and easier installation.
Versatile for almost every market around the globe due to the addition of the 70/100-volt connection, the CM series is bound to stay the standard installer’s choice in the fixed install market.
The CM20T loudspeakers can be painted in any color.
Specifications
| Loudspeakers |
| Woofer diameter (imperial) |
16.5 cm (6.5") |
| Number of woofer drivers |
1 |
| Woofer |
Yes |
| Tweeter diameter |
1 mm |
| Number of tweeter drivers |
1 |
| Tweeter |
Yes |
| Driver diaphragm material |
Polypropylene |
| Number of drivers |
2 |
| Speaker placement |
Ceiling-mountable |
| Speaker type |
2-way |
| Audio |
| Sound pressure level (max) |
104 dB |
| Sensitivity |
86 dB |
| Impedance |
16 Ω |
| Frequency range |
60 - 20000 Hz |
| Peak Music Power Output (PMPO) |
120 W |
| RMS rated power |
30 W |
| Performance |
| International Protection (IP) code |
IP54 |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Aluminium |
| Recommended usage |
Conferencing system |
| Product colour |
White |
| Amplifier |
| Amplifier |
No |
| Ports & interfaces |
| Bluetooth |
No |
| Connectivity technology |
Wired |
| Power |
| Power source type |
DC |
| Packaging data |
| Package weight |
1.6 kg |
| Package height |
110 mm |
| Package depth |
240 mm |
| Package width |
240 mm |
| Package weight |
1.6 kg |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Other features |
| Country of origin |
China |
| Frequency range |
60 - 20000 Hz |
| Frequency range |
60 - 20000 Hz |
| Sensitivity |
86 dB |
