Tired of slow, blurry labels that waste time and money? The Bixolon XD5-40T is a compact desktop printer that creates sharp, durable barcodes and tags in seconds. It is built for warehouses, clinics, factories and stores that need reliable labeling every day. If you struggle with missed scans or broken labels, this printer solves the problem with fast speed and clear 203 203 dpi quality.

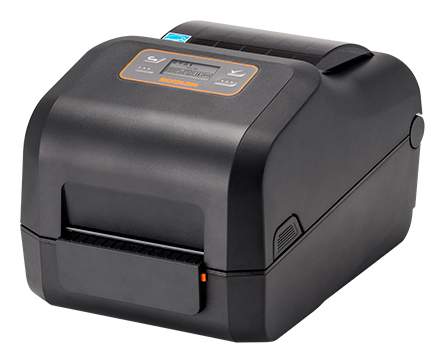

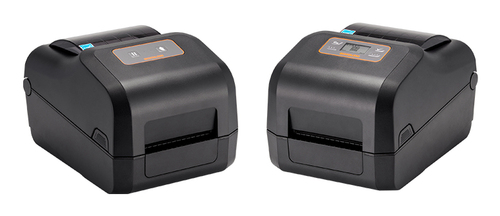

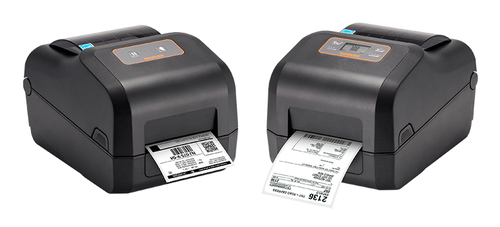

Bixolon XD5-40T, 203x203 DPI, 152mm/sec 8 dot Label Printer
Many businesses lose productivity because their old printers cannot keep up with high-volume demand. Slow print speed leads to line backs, and low resolution makes barcodes hard to read. The XD5-40T removes those bottlenecks. It prints at 152 mm per second with eight-dot clarity, so each label is ready instantly and scans perfectly. The rugged clamshell design also survives busy workspaces, giving you a printer that works as hard as you do.
Key Features
- Print speed up to 152 mm/sec (6 ips) for high volume.
- Eight-dot resolution at 203 x 203 dpi for clear barcodes.
- Direct thermal and thermal transfer technology.
- Maximum label width 11.8 cm and roll diameter 12.7 cm.
- Tool-less auto cutter and optional peeler for easy media changes.
- Dual USB2.0 ports and optional Wi-Fi or Bluetooth connectivity.
- 256 MB SDRAM and 256 MB flash memory for fast data handling.
Specifications
| Printing |
| Print speed |
152 mm/sec |
| Number of printable dots |
8 dot |
| Maximum resolution |
203 x 203 DPI |
| Print technology |
Direct thermal / Thermal transfer |
| Paper handling |
| Maximum label width |
11.8 cm |
| Maximum roll diameter |
12.7 cm |
| Media thickness |
0.06 - 0.2 mm |
| Ribbon length |
300 m |
| Ribbon width |
11 cm |
| Autocutter |
Yes |
| Ports & interfaces |
| RS-232 ports |
1 |
| USB port |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Ethernet LAN |
No |
| Connectivity technology |
Wired & Wireless |
| Performance |
| Built-in barcodes |
1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93,
Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5,
Interleaved 2/5, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39
|
| Flash memory |
128 MB |
| Internal memory |
64 MB |
| Design |
| Control type |
Buttons |
| Display resolution |
200 x 100 pixels |
| Display |
LCD |
| Built-in display |
Yes |
| Product colour |
Black |
| Power |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| System requirements |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Mobile operating systems supported |
Android, iOS |
| Windows operating systems supported |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
25 - 80% |
| Weight & dimensions |
| Weight |
2.48 kg |
| Height |
188 mm |
| Depth |
284 mm |
| Width |
210 mm |
| Packaging content |
| Cables included |
USB |
| Technical details |
| Sustainability certificates |
ENERGY STAR |
| Other features |
| Maximum resolution |
203 x 203 DPI |
