Increase the capacity of your optical network without adding more fiber runs. The BlueOptics BOCR8 is a 1HE 8-Channel CWDM Multiplexer designed to combine multiple optical channels over single-mode fiber. It supports wavelengths from 1270nm to 1450nm, excluding 1390nm and 1410nm, with 20nm channel spacing. With LC/APC connectors on both input and output, this CWDM multiplexer provides a practical solution for compatible optical network installations where efficient wavelength management is important

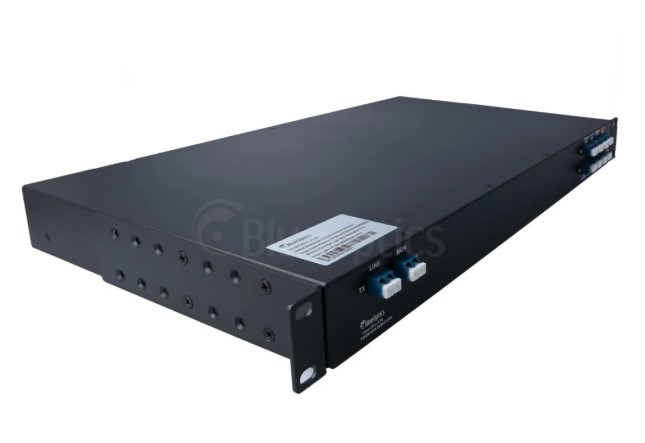

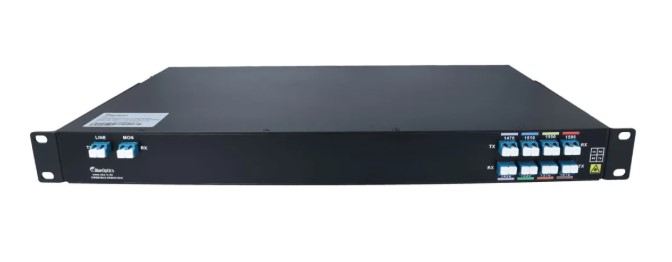

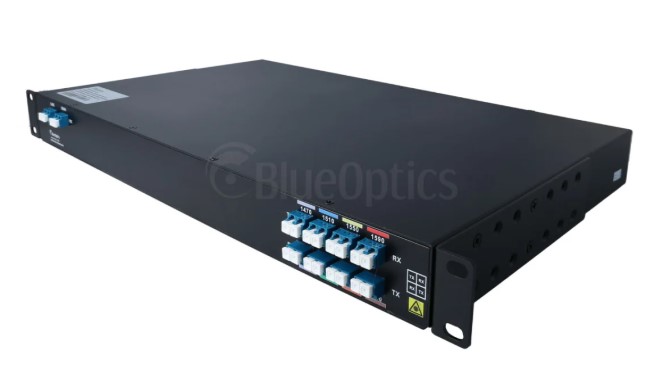

BlueOptics BOCR8 1HE 8-Channel CWDM Multiplexer
Managing multiple optical services can become challenging when available fiber capacity is limited. The BlueOptics BOCR8 helps solve this problem by allowing 8 CWDM channels to operate within a single optical fiber infrastructure. Its 20nm channel spacing provides organized wavelength separation, while the ±6.5nm channel passband supports the specified CWDM wavelength range. The single-mode design is suitable for compatible optical transmission systems, and LC/APC connectors provide the required interface for supported network equipment. Its 1HE form factor also makes it suitable for rack-based optical network installations where organized equipment placement matters.
Solution for Fiber to the X (FTTX)
BlueOptics passive 8 Channel Multiplexer/Demultiplexer as 19" chassis rack version for increasing the transmission capacity of optical data signals from 1270-1450nm in optical fiber connections by combining different wavelengths on one fiber. This allows different services to be combined on one connection. BlueOptics passive 8 Channel Multiplexers/Demultiplexers can be operated without power supply and are designed for maximum ranges on single-mode optical fibers.
Full Utilization of Your Fiber
BlueOptics passive Multiplexers bundle several optical signals and thus enable their transmission via one fiber (multiplexing). On the opposite side, these signals are unbundled again with a Demultiplexer in order to divide the signals again into several fibers (demulitplexing). This is done under consideration of the CWDM grid according to ITU G.694.2.
Best Attenuation Values
BlueOptics 8 Channel Multiplexers have best attenuation values because of a low input attenuation (Input Loss) and a high return loss (Return Loss). 8 Channel Multiplexers are primarily used in Fiber to the Home (FTTH) Networks, Fiber to the Point (FTTX) Networks, Passive Optical Networks (PON), Gigabit Passive Optical Networks (GPON), Local Area Networks (LAN) and Cable Television (CATV) installations or just for easy optical signal distribution.
Highest Component Quality
For lossless transmission services exclusively branded fibers from well known manufacturers such as Corning, Fujikura or YOFC are used in the production process of BlueOptics 8 Channel Multiplexer Solutions. All installed plugs are manufactured with highly reliable zirconia ceramic ferrule of brand manufacturers such as Amphenol, Diamond, Nissin Kasei or Reichle & De-Massari and achieve a lifetime of up to 1500 mating cycles.
Interference-free Transmission
All BlueOptics 8 Channel Multiplexer Solutions are tested after production with interferometer and Optical-Time-Domain-Reflectometry (OTDR) to ensure the best quality. A measurement protocol of the input loss and return loss values is included with every shipped 8 Channel Multiplexer Rack Version.
BlueOptics 8 Channel Multiplexer solutions meet Telcordia GR-326 requirements-Core 4.4.
Industrial Standards
BlueOptics 8 Channel Multiplexers are manufactured to meet generally accepted industry standards and norms. All used cables are equipped with a flame-retardant LSZH jacket. In case of a fire thus creates a very low smoke emission in comparison to PVC coated cables. Furthermore no halogen is released.
BlueOptics 8 Channel Multiplexers meet the following Norms: IEC-61034, IEC-754-1, IEC 60332-1, IEC 60332-3, IEC/EN 60950 and RoHS.
Act Now!
By using BlueOptics 8 Channel Multiplexer solutions networks can be prepared for increasing demands. Regardless whether an increased data volume, higher transmission rates, greater scalability, higher performance and/or a higher reliability is desired. With BlueOptics Fiber Optic 8 Channel Multiplexers you can improve your connections and reduce your OPEX and CAPEX.
Benefits
-
Expands fiber capacity: Supports 8 CWDM channels to help you carry multiple optical services through shared fiber infrastructure.
-
Efficient wavelength management: Uses 20nm channel spacing to organize multiple optical wavelengths.
-
Rack-ready design: The 1HE format fits into compatible rack-based network installations.
-
Reliable optical connection: LC/APC input and output connectors provide compatible interfaces for optical equipment.
-
Single-mode support: Designed for single-mode optical network applications requiring CWDM connectivity.
Usages
The BlueOptics BOCR8 can be used in compatible CWDM optical networks where several wavelengths need to be combined into shared fiber infrastructure. It is suitable for telecom and data communication applications that require 8-channel optical multiplexing. You can use it in rack-based optical installations where efficient use of fiber capacity is important. The supported 1270nm to 1450nm wavelength range, excluding 1390nm and 1410nm, makes it suitable for compatible CWDM systems using these specified channels.
Key Features
-
8-channel CWDM multiplexer
-
1HE rack format
-
Single-mode fiber support
-
1270nm to 1450nm wavelength range
-
1390nm and 1410nm excluded
-
20nm channel spacing
-
±6.5nm channel passband
-
LC/APC input connector
-
LC/APC output connector
-
Polarization Dependent Loss ≤ 0.3dB
-
Standard Code (Cisco)
-
RAL9004 black color
