If you are looking for a reliable data logging system for your motorsport applications, you know how hard it can be to find the right tool. Many systems are complicated and difficult to use, which can lead to wasted time and lost data. But what if you could find a system that is easy to use and provides accurate and reliable data? The Bosch C 70 is a powerful data logging system that can help you get the data you need to improve your performance. With its 667MHz dual core processor and 10 kHz 12 bit AD converters, this system is capable of handling even the most demanding applications.

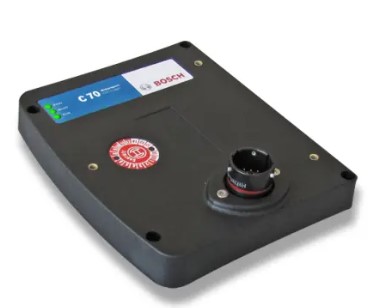

Bosch C 70, 667MHz Dual Core Processor, 10 kHz 12 bit AD converters Data Logger
The Bosch C 70 data logger solves the problem of complicated and unreliable data logging systems. This problem matters to users because it can lead to wasted time and lost data, which can be costly and frustrating. The Bosch C 70 provides a clear solution by offering a user-friendly interface and reliable data logging capabilities. With its advanced processor and AD converters, this system is capable of handling even the most demanding applications, providing users with accurate and reliable data.
Key Features
- 667MHz dual core processor for fast and reliable data logging
- 10 kHz 12 bit AD converters for high-speed and accurate data conversion
- 4 GB memory for storing large amounts of data
- 1,500 channels enabled for flexible and customizable data logging
- Supports configurable math channels and user-configurable CAN in/out messages
- Online data compression and decompression for efficient data transfer
- Compact and lightweight design, weighing only 450g
- Operating temperature range of -20 to 85C, making it suitable for use in a range of environments
- Supports a range of communication protocols, including CAN, Ethernet, and RS232
- Maintenance interval of 220 hours or a maximum of two years, reducing downtime and increasing productivity
Specifications
| General |
|
| Product |
Bosch C 70 |
| Order Number |
F02U.V02.302-02 |
| Description |
Data Logger |
| Application |
Programmable data logging system for motorsport applications |
| Processor & Logging |
|
| Processor |
667 MHz Dual Core |
| AD Converters |
10 kHz 12 bit AD converters with digital low pass filter |
| Internal Power Source |
Li/Ion capacitor |
| Configurable Math Channels |
Supported |
| User Configurable CAN in/out Messages |
Supported |
| Online Data Compression |
Supported |
| Internal Logger |
|
| Memory |
4 GB memory on Partition 1 enabled |
| Logging Channels |
1,500 channels enabled |
| Sampling Rate |
1 ms sampling rate enabled |
| Logging Performance |
|
| Usage of All Features |
600 kB/s |
| Primary Logging Use Case |
>1,200 kB/s |
| Logging Data Download Rate |
Up to 6.2 MB/s |
| Mechanical Data |
|
| Dimensions |
151 × 126 × 25.5 mm |
| Weight |
450 g |
| Protection Classification |
IP54 to DIN 40050, Section 9, Issue 2008 |
| Operating Temperature Internal |
-20 to 85°C |
| Maximum Vibration |
Vibration profile 1 |
| Electrical Data |
|
| Supply Voltage |
5 to 18 V |
| Inputs |
|
| Analog Inputs |
4 analog channels, additional 12 optional |
| Input Range |
0 to 5 V |
| Resolution |
12 bit |
| Pull-Up Resistor |
Switchable pull up resistor for all ANA_IN |
| Speed Inputs |
4 Hall-effect or DF11 wheel speed inputs, switchable |
| Sensor Supplies and Screens |
|
| Sensor Supply |
2 × 5 V ±1% (250 mA) |
| Sensor Supply |
1 × 10 V ±1% (250 mA) |
| Sensor Supply |
1 × U_Bat (250 mA) |
| Sensor Ground |
4 × Sensor ground |
| Communication |
|
| CAN Interfaces |
2 |
| Ethernet |
2 × 100BaseT |
| Laptrigger Input |
1 |
| RS232 |
Telemetry, GPS |
| Configuration |
Via RaceCon over Ethernet or MSA-Box II |
| Maintenance |
|
| Maintenance Interval |
220 h or a maximum of two years |
