If you are looking for a professional data logging system for your motorsport applications, you know how hard it can be to find the right tool. Many systems are too complicated or do not provide the data you need. But what if you could have a system that gives you all the information you need to improve your performance? The Bosch C 80, F02U.V03.083-01, 10 kHz 12 bit AD converters, Data Logger is here to help. This system is designed to provide you with accurate and reliable data, so you can make informed decisions and get the most out of your vehicle. With its advanced features and user-friendly interface, this data logger is the perfect solution for anyone looking to take their motorsport experience to the next level.

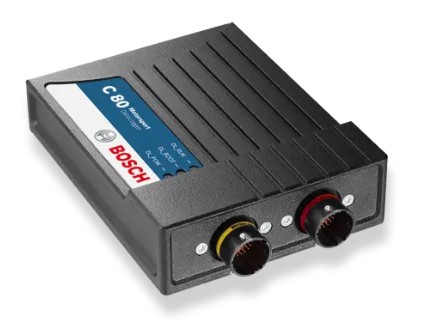

Bosch C 80, F02U.V03.083-01, 10 kHz 12 bit AD converters, Data Logger
The Bosch C 80, F02U.V03.083-01, 10 kHz 12 bit AD converters, Data Logger solves the problem of not having enough data to improve your vehicle's performance. This is a major issue for many motorsport enthusiasts, as they need accurate and reliable data to make informed decisions. The Bosch C 80 provides a clear solution by offering advanced data logging capabilities, including 10 kHz 12 bit AD converters and a range of input channels. With this system, you can collect all the data you need to optimize your vehicle's performance and gain a competitive edge.
Key Features
- 10 kHz 12 bit AD converters for accurate and reliable data
- Range of input channels, including digital and analog
- Advanced data logging capabilities, including configurable math channels
- Easy to use and install, with a user-friendly interface
- Compatible with a range of motorsport applications, including racing and testing
- Robust and durable design, with a protection classification of IP67
- Operating temperature range of 0 to 85C, for use in a range of environments
- Maximum vibration of vibration profile 1, for use in high-vibration applications
- Supply voltage of 8 to 18 V, for use with a range of power sources
- Maximum power consumption of 10 W at 14 V, for efficient operation
Specifications:
| General |
|
| Product |
Bosch C 80 |
| Order Number |
F02U.V03.083-01 |
| Description |
Data Logger |
| Application |
Professional data logging system for motorsport applications |
| Processor & Logging |
|
| AD Converters |
10 kHz 12 bit AD converters with digital low pass filter |
| Configurable Math Channels |
Supported |
| User Configurable CAN in/out Messages |
Supported |
| Sampling Rate |
10 kHz |
| Online Data Compression |
Supported |
| 3-Port Network Switch |
Supported |
| Telemetry Support |
Ethernet and RS232 |
| Internal Logger |
|
| FULL_LOG_1 |
4 GB memory on Partition 1 enabled |
| Logging Channels |
1,500 channels enabled |
| Sampling Rate |
1 ms sampling rate enabled |
| Logging Performance |
|
| Usage of All Features |
800 kB/s |
| Primary Logging Use Case |
>1,500 kB/s |
| Logging Data Download Rate |
Up to 7.5 MB/s |
| Mechanical Data |
|
| Dimensions |
105 × 34.5 × 137.5 mm |
| Weight |
462 g |
| Protection Classification |
IP67 to DIN 40050, Section 9, Issue 2008 |
| Operating Temperature (Internal) |
0 to 85°C |
| Maximum Vibration |
Vibration profile 1 |
| Electrical Data |
|
| Supply Voltage |
8 to 18 V |
| Maximum Power Consumption (without loads) |
10 W at 14 V |
| Inputs |
|
| Digital Channels |
4 |
| Analog Channels |
26 |
| Input Range |
0 to 5 V |
| Resolution |
12 bit |
| Switchable Pull Up Resistor |
1 × 3 kOhm |
| Sensor Supplies and Outputs |
|
| PWM Outputs |
4 × low side switch, 2 A each |
| Sensor Supply |
1 × 5 V ±1% (250 mA) |
| Communication |
|
| Configuration |
Via RaceCon over Ethernet or MSA-Box II |
| CAN Interfaces |
2 |
| Ethernet |
3 × 100BaseT |
| Telemetry |
Ethernet or RS232 |
| Lap Trigger Input |
1 |
| Connectors |
|
| Motorsport Connectors |
2 × 41-pin double density |
| Maintenance |
|
| Maintenance Interval |
220 h or a maximum of two years |
