Are you tired of dealing with complicated and unreliable connectivity solutions for your motorsport applications? Look no further than the Bosch CG 3.2, F02U.V03.684-02, WiFi 6, 4 Ethernet, IP67 Connectivity Gateway. This device is designed to provide a seamless and efficient connection for your vehicles, allowing you to focus on what matters most - performance and safety. With its advanced features and robust design, this gateway is the perfect solution for anyone looking to upgrade their connectivity capabilities. As a leading brand in the industry, Bosch has once again delivered a top-notch product that is sure to meet the needs of even the most demanding users.

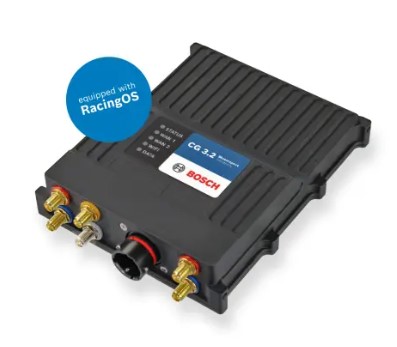

Bosch CG 3.2, F02U.V03.684-02, WiFi 6, 4 Ethernet, IP67 Connectivity Gateway
The Bosch CG 3.2, F02U.V03.684-02, WiFi 6, 4 Ethernet, IP67 Connectivity Gateway solves the problem of unreliable and complicated connectivity solutions for motorsport applications. This problem matters to users because it can lead to lost time, decreased performance, and increased safety risks. The Bosch CG 3.2 provides a clear solution by offering a robust and efficient connectivity gateway that can handle the demands of high-performance vehicles. With its advanced features such as WiFi 6, 4 Ethernet ports, and IP67 protection, this device is designed to provide a reliable and fast connection for your vehicles.
Key Features
- WiFi 6 for fast and reliable connectivity
- 4 Ethernet ports for multiple device connections
- IP67 protection for dust and water resistance
- Dual band multi-constellation Dead Reckoning GNSS
- Bi-directional communication capability
- 16 GB internal storage memory
- Quad-core 1.8 GHz Cortex CPU
- 2.3 TOPS NPU for advanced processing
- 1 internal 3-axis accelerometer
- 6 temperature sensors for monitoring and control
Specifications
| General |
|
| Product |
Bosch CG 3.2 |
| Order Number |
F02U.V03.684-02 |
| Description |
Connectivity Gateway |
| Application |
Global connectivity gateway for motorsport applications |
| Function |
Provides telemetry, data logging, communication, and remote vehicle management capabilities |
| Key Features |
|
| Worldwide Operation |
1 device for world-wide use |
| Mobile Network Connection |
2 simultaneous connections to distinct Mobile Operators |
| Communication Capability |
Bi-directional communication capability |
| GNSS |
Dual band multi-constellation Dead Reckoning GNSS |
| WiFi |
WiFi 6 |
| Ethernet |
4 Ethernet (including 1 Automotive Ethernet) |
| CAN |
1 CAN-FD |
| RS232 |
1 RS232 |
| Internal Storage Memory |
16 GB |
| Wireless Communication |
|
| 5G Modems |
2 × 5G SA/NSA channels with diversity and 4G fallback |
| SIM Support |
4 eSIMs and 2 4FF SIM slots |
| WiFi Interface |
WiFi 6, Single Antenna, no MIMO |
| GNSS Interface |
L1, L5; multi-constellation; 10 Hz; Dead Reckoning optionally enabled |
| Wired Communication |
|
| Automotive Ethernet |
100/1000Base-T1 |
| CAN Interface |
1 CAN-FD, configurable in RaceCon, compliant with CAN 2.0 |
| RS232 Interface |
19.2, 57.6 and 115.2 kB/sec |
| Data Logging |
|
| Internal Memory |
16 GB storage memory |
| Data Logger Configuration Tool |
RaceCon |
| Processing & Hardware |
|
| CPU |
Quad-core 1.8 GHz Cortex |
| NPU |
2.3 TOPS |
| Internal Accelerometer |
1 internal 3-axis accelerometer |
| Temperature Sensors |
6 temperature sensors |
| In-Chip Temperature Sensors |
12 in-chip temperature sensors |
| Keep Alive |
30 sec with internal super-capacitors |
| Mechanical Data |
|
| Enclosure |
Lightweight and robust aluminium enclosure |
| Dimensions (Max. Size Including Connectors) |
158 × 117 × 31 mm |
| Weight |
430 g |
| Protection Classification |
IP67 |
| Operating Temperature (Internal) |
-20 to 85°C |
| Maximum Vibration |
Vibration Profile 1 |
| Electrical Data |
|
| Supply Voltage Range |
8 to 18 V |
| Current Consumption (Typical) |
0.7 A at 13.4 V |
| External Antenna Connections |
|
| 5G Antenna |
4 × SMA sockets (gold) |
| GNSS Antenna |
1 × SMA socket (gold) |
| WiFi Antenna |
1 × SMA reverse polarity socket (silver) |
| SIM Configuration |
4 eSIMs and 2 4FF SIM slots |
| Connector |
|
| Mating Connector |
AS612-35SN |
