Are you tired of using old and outdated display systems in your vehicle? Do you want to upgrade to a modern and advanced display system that can provide you with all the information you need while driving? Look no further than the Bosch DDU 11 (F02U.V03.208-03), 800x480 pixel, 667MHz Dual Core 6.5 Display. This product is designed to provide you with a clear and concise display of all the important information you need while driving, including speed, rpm, and other vital signs. With its advanced technology and user-friendly interface, this display system is perfect for anyone who wants to upgrade their vehicle's display system. Many drivers face the problem of not being able to see important information while driving, which can be very dangerous. The Bosch DDU 11 solves this problem by providing a clear and easy-to-read display of all the important information.

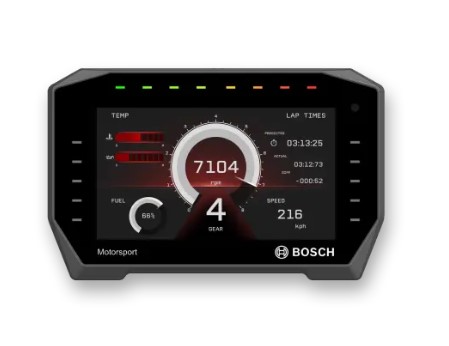

Bosch DDU 11 (F02U.V03.208-03), 800x480 pixel, 667MHz Dual Core 6.5 Display
The Bosch DDU 11 (F02U.V03.208-03) solves the problem of outdated display systems by providing a modern and advanced display system that can provide you with all the information you need while driving. This problem matters to the user because it can be very dangerous to drive without being able to see important information. The Bosch DDU 11 gives a clear solution to this problem by providing a clear and concise display of all the important information. With its advanced technology and user-friendly interface, this display system is perfect for anyone who wants to upgrade their vehicle's display system. The Bosch DDU 11 is a great product for anyone who wants to upgrade their vehicle's display system and have a clear and easy-to-read display of all the important information.
Key Features
- 6.5 graphic color display
- 800x480 pixel resolution
- 667MHz Dual Core processor
- 48 user configurable pages
- Supported image file formats: PNG, BMP, JPG, GIF
- GPS support
- Page change based on events possible
- Internal logger with 4 GB memory
- Logging rates: 600 kB/s
- Logging data download rate: up to 6.2 MB/s
- Supply voltage: 6 to 18 V
- Current consumption: less than 2 A (at 12 V)
Specifications
| General |
|
| Product |
Bosch DDU 11 |
| Order Number |
F02U.V03.208-03 |
| Description |
6.5” graphic color display |
| Application |
Programmable full colour dashboard display with a data logging system for motorsport applications |
| Display |
|
| Display Type |
6.5” graphic color display |
| Resolution |
800 x 480 pixel |
| User Configurable Pages |
48 user configurable pages (12 pages organized in 4 switchable page sets) |
| Supported Image File Formats |
PNG, BMP, JPG, GIF |
| Processor |
667 MHz Dual Core |
| AD-Converters |
10 kHz sampling rate with digital downsampling filter |
| Real Time Clock Supply |
Ultracap™, sustains realtime for 2 weeks |
| Ambient Light Sensor |
Supported |
| Features |
|
| User Interface Menu |
Features user interface menu |
| Display Element Design Generator |
Features display element design generator |
| LEDs |
8 top-LEDs and 5 side-LEDs on both sides |
| GPS Support |
Supports GPS laptrigger, pre-dated lap time etc. |
| Page Change |
Page change based on events possible |
| Data Logging |
|
| Internal Logger |
4 GB memory on Partition 1 enabled |
| Logging Channels |
100 channels enabled |
| Sampling Rate |
20 Hz (50 ms) standard |
| FULL_LOG_1 |
1,500 channels / 1 kHz sampling rate on Partition 1 optional |
| FULL_LOG_2 |
4 GB memory on Partition 2 optional |
| Online Data Compression |
Supported |
| Logging Rates |
Usage of all features: 600 kB/s |
| Primary Logging Use Case |
>800 kB/s |
| Logging Data Download Rate |
Up to 6.2 MB/s |
| Communication Interfaces |
|
| CAN Interfaces |
1 CAN interface |
| Second CAN Interface / RS232 |
1 (switchable CAN or RS232 with IO_EXTENS) |
| Ethernet |
2 × Ethernet 100BaseTX |
| Laptrigger Input |
1 standard, 1 with IO_EXTENS |
| RS232 |
1 (Telemetry or GPS with IO_EXTENS) |
| Configuration |
Via RaceCon over Ethernet or MSA-Box II |
| CCP-Master |
Data acquisition from ECU that support CAN Calibration Protocol (CCP_MASTER option) |
| Electrical Data |
|
| Supply Voltage |
6 to 18 V |
| Current Consumption (w/o sensor supply) |
<2 A (at 12 V) |
| Mechanical Data |
|
| Dimensions |
203 x 128 x 38.5 mm |
| Weight |
649 g |
| Protection Classification |
IP67 |
| Operating Temperature Internal |
-20 to 85°C |
| Max. Vibration |
Vibration profile 1 |
| Software Options |
|
| CCP/XCP_MASTER |
Supported |
| FULL_LOG_1 |
Supported |
| FULL_LOG_2 |
Supported |
| IO_EXTENS |
Supported |
| ABSDIAG |
Supported |
| DATA_USB |
Supported |
