If you are working with the Bosch test system, you may have found that it has some limitations when it comes to handling different types of signals. This is a problem because it can limit your ability to test and analyze the performance of your systems. The Bosch F02U. V03.360-01 FlexIO Expansion Board with 6 additional channels is a solution to this problem. It provides additional channels that can handle various types of signals, including analog and digital signals. This means that you can use it to extend the functions of the test system and get more accurate results.

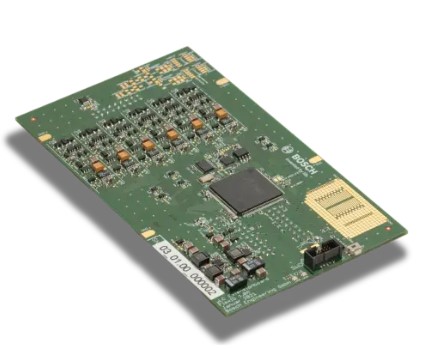

Bosch F02U. V03.360-01 FlexIO Expansion Board with 6 additional channels with Bosch
Are you tired of being limited by the number of channels on your test system? Do you need a way to handle more signals and get more accurate results? The Bosch F02U. V03.360-01 FlexIO Expansion Board with 6 additional channels is the answer. This expansion board is designed to work with the Bosch test system and provides six additional channels that can handle various types of signals. It is a great solution for anyone who needs to test and analyze the performance of their systems. With the Bosch F02U. V03.360-01 FlexIO Expansion Board, you can extend the functions of your test system and get more accurate results.
Key Features
- Six additional channels that can handle various types of signals, including analog and digital signals
- Compatible with the Bosch test system
- Easy to install and use, with a simple and intuitive interface
- Can be used to test and analyze the performance of a variety of systems, including automotive, industrial, and medical systems
- Provides accurate and reliable results, with a high level of precision and accuracy
- Supports a variety of signal types, including ADC, DAC, DOut, PWM, and SENT
- Has a high level of flexibility, with the ability to handle a variety of different signals and systems
- Is a great solution for anyone who needs to test and analyze the performance of their systems, including engineers, technicians, and researchers
- Has a high level of compatibility, with the ability to work with a variety of different systems and devices
- Is a cost-effective solution, with a low cost per channel and a high level of value
Specifications
| General |
|
| Product |
Bosch FlexIO Expansion Board |
| Order Number |
F02U.V03.360-01 |
| Description |
FlexIO Expansion Board with 6 additional channels |
| Application |
Extends the functions of the µLC Test System by adding six versatile channels
that can handle various types of signals, including analog and digital
|
| Features |
|
| Additional Channels |
6 additional channels, freely selectable between ADC, DAC, DOut, PWM, SENT |
| Signal Types |
Analog, PWM, and SENT signal manipulation |
| SENT Support |
SENT signals according to SAE J2716 standard from 2016 with integrated fault simulation |
| Signal Manipulation |
Manipulation of analogue, PWM, and SENT signals |
| Channel Specification |
|
| ADC |
Input voltage 0 to 56 V ± 100 mV |
| DAC |
Output voltage 0 to 5 V ± 50 mV |
| DOut |
Output voltage 12 V or high impedance |
| PWM-Out |
|
| Frequency |
0.1 to 25,000 Hz ± 0.05 % |
| Duty Cycle |
0 to 100 % ± 0.5 % |
| Output Voltage |
0, 3.3 to 12 V, or high impedance |
| PWM-In |
|
| Frequency |
1 to 20,000 Hz ± 0.5 % |
| Duty Cycle |
0 to 100 % ± 1 % |
| SENT |
|
| Sensor Types |
In the SAE J2716 Norm |
| Tick Length |
2 to 90 µs |
| Message Type |
Short 8, enhanced 12 or 16 Bit |
| Multiplexing |
Supported |
| Error Simulation |
Supported |
| Output Conditions (DOut, PWM-Out, SENT) |
|
| Output |
0 V / 3.3 V |
| Conditions |
Ulow = 0.5 V, Uhigh = 2.5 V, RL = 390 Ohm |
| trise max |
120 ns |
| tfall max |
120 ns |
| Output |
0 V / 5 V |
| Conditions |
Ulow = 0.5 V, Uhigh = 4.1 V, RL = 390 Ohm |
| trise max |
312 ns |
| tfall max |
66 ns |
| Output |
0 V / 12 V |
| Conditions |
Ulow = 1.2 V, Uhigh = 10.8 V, RL = 390 Ohm |
| trise max |
58 ns |
| tfall max |
120 ns |
| Ordering Information |
|
| Expansion Board FlexIO |
F02U.V03.360-01 |
