If you are working with digital systems, you know how important it is to have the right expansion boards. Without them, your system may not be able to perform all the tasks you need it to. This can be a big problem because it can slow down your work and make it harder to get things done. The Bosch F02U.V02.904-01 Digital Outputs Expansion Board is a great solution to this problem. It gives you the extra digital outputs you need to make your system work better. With this board, you can connect more devices and make your system more powerful. This is very important because it helps you to be more productive and get your work done faster.

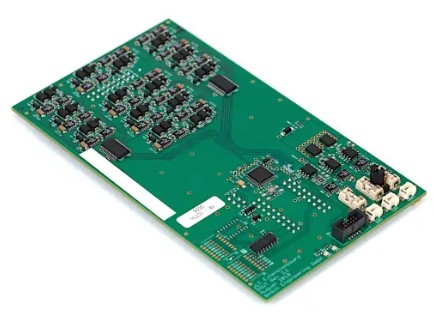

Bosch F02U.V02.904-01 Digital Outputs Expansion Board with Bosch
Are you tired of not having enough digital outputs on your system? Do you wish you could connect more devices and make your system more powerful? The Bosch F02U.V02.904-01 Digital Outputs Expansion Board is the answer to your problem. This board is designed to work with Bosch systems and gives you the extra digital outputs you need. It is very easy to use and install, and it is compatible with the LC 3.1 system. With this board, you can make your system work better and be more productive.
Key Features
- Output voltage: Min: -1 V, Max: 24 V
- Compatible system: LC 3.1
- DC characteristics: U.out, U.in-U.out, R.out, I.(out x prot), I.(out x prot)
- Timing: t. rise, t. fall, t. restart
- Load of 500 Ohm to GND: 58 s, 0.8 s, 33.6 ms
- Load of 500 Ohm to 24 V: 0.3 s, 5.5 s
- Without load: 62 s, 12 s
- Shutdown threshold: 1 A, 3.33 A
- Output = Low: <1.1 V, Output = High: <1.8 V
- Output = High-Z: >10 MOhm
Specifications
| Application |
|
| Output Voltage |
Min: -1 V, Max: 24 V |
| Compatible System |
µLC 3.1 |
| DC Characteristics |
|
| U.out |
Output = Low: <1.1 V |
| U.in-U.out |
Output = High: <1.8 V |
| R.out |
Output = High-Z: >10 MOhm |
| I.(out x prot) |
Channel shutdown threshold: ±1 A |
| ∑I.(out x prot) |
Shutdown threshold total current all outputs: ±3.33 A |
| Timing (Measured at Uin = 24 V) |
|
| t. rise |
Load of 500 Ohm to GND 58 µs
Load of 500 Ohm to 24 V 0.3 µs
Without load 62 µs |
| t. fall |
Load of 500 Ohm to GND 0.8 µs
Load of 500 Ohm to 24 V 5.5 µs
Without load 12 µs |
| t. restart |
33.6 ms |
