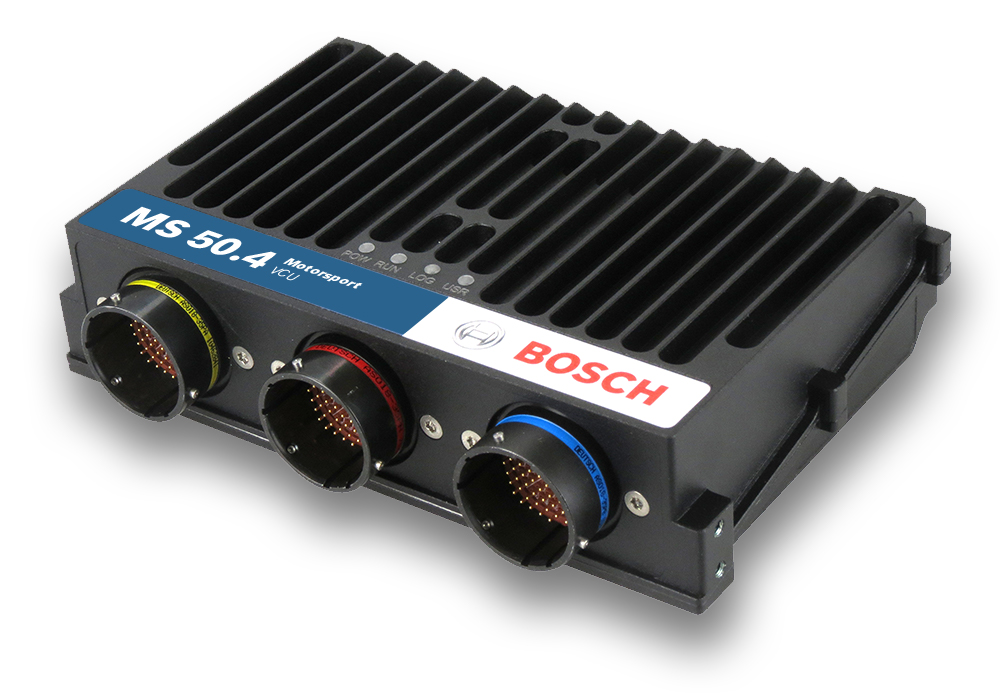

Bosch F02U.V03.514-01, 667 MHz Dual Core Processor, IP67 Vehicle Control Unit
The Bosch F02U.V03.514-01 solves the problem of finding a reliable and efficient vehicle control unit. This problem matters to users because it can affect the overall performance and safety of their vehicle. The Bosch F02U.V03.514-01 provides a clear solution by offering a powerful and durable control unit that can handle a wide range of applications. With its advanced features and robust design, this unit is the perfect solution for anyone looking for a reliable vehicle control unit.
Key Features
- 667 MHz Dual Core Processor
- IP67 protection class
- 3 motorsport connectors, 198 pins in total
- 20 analog channels, 0 to 5 V, 0.5% precision between 0.2 and 4.8 V, switchable pull-up
- 8 Digital PWM inputs, fmax = 30 kHz, Hall-type speed measurement possible, switchable pull-up 2.15 k, tooth count differential
- 4 Digital PWM inputs, fmax = 30 kHz, Hall- and DF11-type speed measurement possible, fixed pull-up 2.15 k, tooth count differential
- 1 x Bosch Laptrigger
- 1 x TimeSync master and slave (specific to Bosch measurement system)
- 1 x ambient pressure
- 1 x ECU temperature
Specifications
| General |
|
| Product |
Bosch F02U.V03.514-01 |
| Description |
Vehicle Control Unit MS 50.4 CAN-FD |
| Processor |
667 MHz Dual Core Processor |
| Protection Class |
IP67 |
| Mechanical Data |
|
| Dimensions (L × W × H) |
166 × 121 × 41 mm |
| Weight |
≤ 660 g |
| Protection Classification |
IP67 |
| Connectors |
3 motorsport connectors, 198 pins in total |
| Maximum Vibration |
Vibration profile 1 |
| Operating Temperature (Internal) |
0 to 85°C |
| Electrical Data |
|
| Supply Voltage |
5 to 18 V |
| Inputs |
|
| Analog Inputs |
20 analog channels, 0 to 5 V, 0.5% precision between 0.2 and 4.8 V, switchable pull-up |
| Digital PWM Inputs |
8 Digital PWM inputs, fmax = 30 kHz, Hall-type speed measurement possible,
switchable pull-up 2.15 kΩ, tooth count differential
|
| Additional Digital PWM Inputs |
4 Digital PWM inputs, fmax = 30 kHz, Hall- and DF11-type speed measurement possible,
fixed pull-up 2.15 kΩ, tooth count differential
|
| Other |
4 x universal Thermocouple
1 x Bosch Laptrigger
1 x TimeSync master and slave (specific to Bosch measurement
system)
|
| Internal measuremnet |
1 x ambient pressure
1 x ECU temperature
20 x supply voltage
20 x supply current
1 x battery voltage (external VCU supply)
1 x external VCU supply current
4 x HS output current
1 x 3-axis acceleration plus roll/pitch/yaw rate
|
| Output |
2 x 7.5 A each, PWM High side, 50 Hz
4 x 2.2 A each, PWM Low side, 10 kHz
|
| Communication Interfaces |
|
| Ethernet |
3 × 100 Mbit Ethernet |
| CAN |
4 × CAN (expandable to 8 with Upgrade I/O Package), CAN 3 to CAN 8 support CAN-FD |
| LIN |
1 × LIN |
| USB |
1 × USB |
| RS232 |
1 × RS232 interface for GPS or Telemetry (software selectable) |
| Time Synchronization |
1 × Ethernet Time Sync |
| Software & Configuration |
|
| Configuration Tool |
RaceCon |
| Functions |
Logger configuration, calibration, and online measurement |
| Logging |
|
| Internal Logger |
Supported |
| Maintenance |
|
| Maintenance Interval |
220 operating hours or a maximum of two years |
| Order Information |
|
| Order Number |
F02U.V03.514-01 |
