Are you tired of using outdated and inefficient vehicle control units? Look no further than the Bosch F02U.V03.515-01 866 MHz Dual Core Processor, Vehicle Control Unit. This cutting-edge technology is designed to provide you with the power and flexibility you need to take your vehicle to the next level. With its advanced dual-core processor and high-speed logging capabilities, this unit is perfect for anyone looking to upgrade their vehicle's control system. Whether you're a professional racer or just a car enthusiast, the Bosch F02U.V03.515-01 is the perfect solution for you. One of the biggest problems that vehicle owners face is the lack of control and flexibility in their control units. This is where the Bosch F02U.V03.515-01 comes in, providing a reliable and efficient solution that meets all your needs.

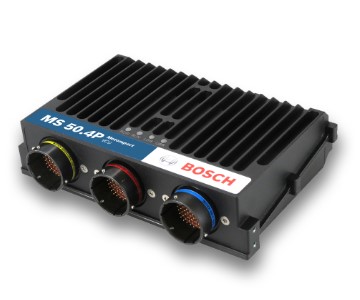

Bosch F02U.V03.515-01 866 MHz Dual Core Processor, Vehicle Control Unit
The Bosch F02U.V03.515-01 866 MHz Dual Core Processor, Vehicle Control Unit solves the problem of outdated and inefficient control units. This problem matters to users because it can lead to poor performance, reduced fuel efficiency, and increased maintenance costs. The Bosch F02U.V03.515-01 provides a clear solution by offering advanced features such as high-speed logging, configurable math channels, and user-configurable CAN in/out messages. With its powerful dual-core processor and high-speed logging capabilities, this unit provides a reliable and efficient solution for all your vehicle control needs.
Key Features
- 866 MHz Dual Core Processor
- High-speed logging capabilities
- Configurable math channels
- User-configurable CAN in/out messages
- Online data compression
- Customer Code Area (CCA) for running customer-developed software code
- Multi-CCA for utilizing extra core and running a second customer model
- 20 Analog channels with 0.5% precision
- 8 Digital PWM inputs with Hall-type speed measurement possible
- 1 x USB interface for data transfer
- 1 x RS232 interface for GPS or Telemetry
Specifications
| General |
|
| Product |
Bosch F02U.V03.515-01 |
| Description |
Vehicle Control Unit MS 50.4P CAN-FD incl. CCA and Multi-CCA |
| Application |
Processor for customer code / Vehicle control functionality |
| Features |
|
| Processor for Customer Code |
866 MHz Dual Core |
| Processor for Logger |
866 MHz Dual Core |
| Configurable Math Channels |
Supported |
| User Configurable CAN in/out Messages |
Supported |
| Online Data Compression |
Supported |
| Customer Code Area CCA |
Provides the option to run customer developed software code on Bosch device |
| Multi CCA |
Enables the use of an extra core to utilize more computing power in the device for running a second customer model |
| High Speed Logging |
200 kHz of 6 analog inputs (optional) |
| Mechanical Data |
|
| Size |
166 x 121 x 41 mm |
| Weight |
≤ 660 g |
| Protection Classification |
IP67 |
| Connectors |
3 motorsport connectors, 198 pins in total |
| Max. Vibration |
Vibration profile 1 |
| Operating Temperature Internal |
0 to 85°C |
| Electrical Data |
|
| Supply Voltage |
5 to 18 V |
| Inputs |
|
| Analog Inputs |
20 Analog channels 0 to 5 V, 0.5 % precision between 0.2 and 4.8 V, switchable pull-up |
| Digital PWM Inputs |
8 Digital PWM inputs fmax=30 kHz Hall-type speed measurement possible,
Switchable pullup 2.15 kOhm, (required for Hall), Tooth count differential
|
| Digital PWM Inputs |
4 Digital PWM inputs fmax=30 kHz Hall- and DF11 type speed measurement possible,
Fixed pullup 2.15 kOhm (required for Hall), Tooth count differential
|
| Internal Logger |
|
| Internal Logger |
1,500 channels |
| Memory Partition 1 |
FULL_LOG_1 (4 GB memory on Partition 1) enabled |
| Memory Partition 1 Optional |
PERF_LOG_1 (16 GB memory on Partition 1) optional |
| Memory Partition 2 |
FULL_LOG_2 (4 GB memory on Partition 2) enabled |
| High Speed Logging Package |
Sampling rate 5 µs optional |
| DATA_USB |
Data copy to USB flash drive enabled |
| Logging |
|
| Logging Rates |
Usage of all features: 800 kB/s |
| Primary Logging Use Case |
>1,500 kB/s |
| Logging Data Download Rate |
up to 7.5 MB/s |
| Communication |
|
| Ethernet |
3 Ethernet 100 Mbit |
| CAN |
4 CAN (+4 with Upgrade I/O Package), CAN 3 to CAN 8 are CAN-FD compatible |
| LIN |
1 LIN |
| USB |
1 USB |
| RS232 |
1 RS232 interface for GPS or Telemetry, switchable depending on SW version |
| Time Sync |
1 Time sync synchronization Ethernet |
| LTE Ethernet Telemetry Support |
Supported |
| Software & Configuration |
|
| System Configuration Tool |
RaceCon |
| Functions |
Logger configuration, calibration, and online measurement |
| Maintenance |
|
| Maintenance Interval |
220 h or a maximum of two years |
| Ordering Information |
|
| Order Number |
F02U.V03.515-01 |
