Are you tired of using outdated technology that slows down your work? Do you need a reliable solution to extend the functions of your microcontroller test system? Look no further than the Bosch F02U.V03.531-01 E-Mobility Expansion Board. This innovative product is designed to simulate typical sensor signals from the e-mobility sector, making it an essential tool for anyone working in the industry. With its advanced features and user-friendly design, this expansion board is the perfect solution for anyone looking to take their work to the next level. As a Bosch product, you can trust that it is built with the highest quality and reliability in mind.

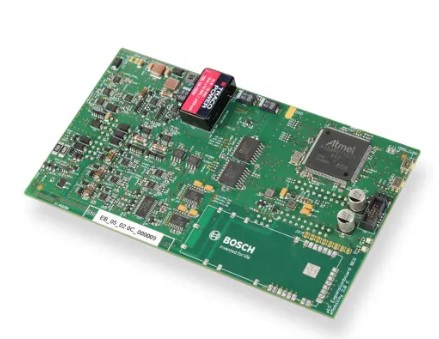

Bosch F02U.V03.531-01 E-Mobility Expansion Board
The Bosch F02U.V03.531-01 E-Mobility Expansion Board solves the problem of limited functionality in microcontroller test systems. This problem matters to users because it can slow down their work and limit their ability to test and simulate various scenarios. The Bosch F02U.V03.531-01 E-Mobility Expansion Board provides a clear solution by extending the functions of the microcontroller test system with typical sensor signals from the e-mobility sector. This allows users to simulate resolver signals, strand current signals, incremental encoder signals, and DAC outputs, making it an essential tool for anyone working in the industry.
Key Features
- Simulation of resolver signals, strand current signals, incremental encoder signals, and DAC outputs
- 16-bit resolution for accurate signal simulation
- Galvanic isolation and protective circuits for safe and reliable operation
- Short-circuit protection against ground and supply voltage
- Adjustable signal amplitude and phase shift for flexible simulation options
- High-frequency range of 100 Hz to 10 kHz for accurate signal simulation
- Phase accuracy of 10 for precise signal simulation
- Offset voltage range of 0 to 10 V for flexible simulation options
- Offset adjustment step of 100 mV for precise control
- Rotational speed range of 60 to 15,000 rpm for accurate simulation
- Rotational speed accuracy of 5% for precise simulation
Specifications
| General |
|
| Product |
Bosch E-Mobility Expansion Board |
| Order Number |
F02U.V03.531-01 |
| Description |
E-Mobility Expansion Board |
| Application |
Extends the functions of the µLC Test System with typical sensor signals from the e-mobility sector |
| Function |
Simulation of resolver signals, strand current signals, incremental encoder signals, and DAC outputs |
| Features |
|
| Sensor Signal Simulation |
Resolver signals, strand current signals, incremental encoder signals, and DAC |
| Resolution |
16-bit resolution |
| Isolation |
Galvanic isolation & protective circuits |
| Protection |
All inputs and outputs are short-circuit protected against ground and supply voltage |
| Resolver Signals |
|
| Output Signals |
Sine, inverted sine; Cosine, inverted cosine; Internal excitation signal |
| Excitation Signal |
Switchable between internally generated signal or externally supplied signal |
| Frequency Range |
100 Hz to 10 kHz |
| Frequency Accuracy |
< ±5 % |
| Amplitude |
Voltage: 1 to 2.5 V |
| Amplitude Accuracy |
< ±250 mV |
| Phase Shift |
Adjustable between 0° and 359° |
| Phase Accuracy |
< ±10° |
| Offset Voltage |
0 to 10 V |
| Offset Adjustment Step |
100 mV steps |
| Offset Accuracy |
< ±250 mV |
| Rotational Speed Range |
60 to 15,000 rpm simulatable |
| Rotational Speed Accuracy |
< ±5 % |
| Strand Current Signals |
|
| Signal Amplitude |
Adjustable 0.1 to 2.5 V |
| Amplitude Accuracy |
< ±25 mV |
| Phase Shift |
Adjustable between 0° and 359° |
| Phase Accuracy |
< ±10° |
| Offset Voltage |
0 to 2.5 V |
| Offset Adjustment Step |
25 mV steps |
| Offset Accuracy |
< ±25 mV |
| Rotational Speed Range |
60 to 15,000 rpm simulatable |
| Rotational Speed Accuracy |
< ±5 % |
| Incremental Encoder Signals |
|
| Signal Amplitude |
Adjustable 2.5 to 12 V |
| Amplitude Accuracy |
< ±250 mV |
| Phase Shift |
Adjustable between 0° and 359° |
| Phase Accuracy |
< ±10° |
| Offset Voltage |
0 to 2.5 V |
| Offset Adjustment Step |
100 mV steps |
| Offset Accuracy |
< ±250 mV |
| Frequency Range |
1 Hz to 10 kHz |
| Frequency Accuracy |
< ±5 % |
| Pulse Width |
50 % |
| Pulse Width Accuracy |
< ±5 % |
| DAC |
|
| DAC Voltage Range |
0 to 30 V |
| DAC Voltage Accuracy |
< 500 mV |
| DAC Current |
Output current without voltage drop; Voltage remains constant at 2.5 mA |
| Ordering Information |
|
| Expansion Board E-Mobility |
F02U.V03.531-01 |
