Are you tired of using low-quality battery testers that give you inaccurate results? Look no further than the Neware Technology BTS9000-5V5A-8CH 8-Channel Battery Tester System. This product is designed to provide you with precise and reliable testing results, making it a must-have for anyone who works with batteries. With its advanced features and user-friendly interface, this battery tester is perfect for professionals and hobbyists alike. The Neware Technology BTS9000-5V5A-8CH 8-Channel Battery Tester System is the solution to all your battery testing needs, providing you with accurate and reliable results every time.

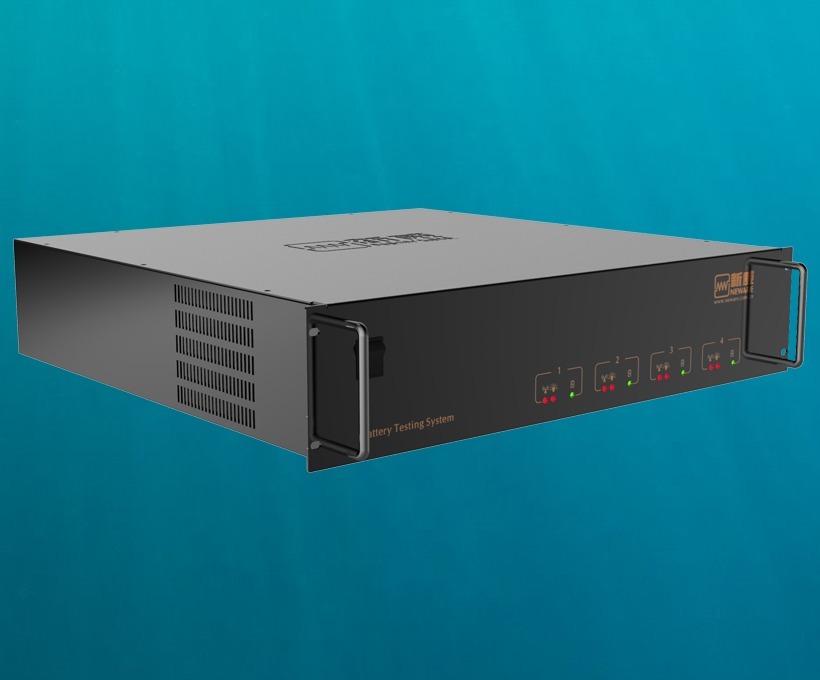

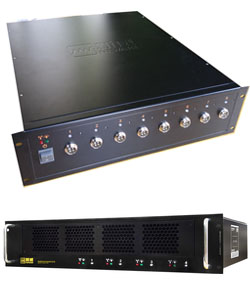

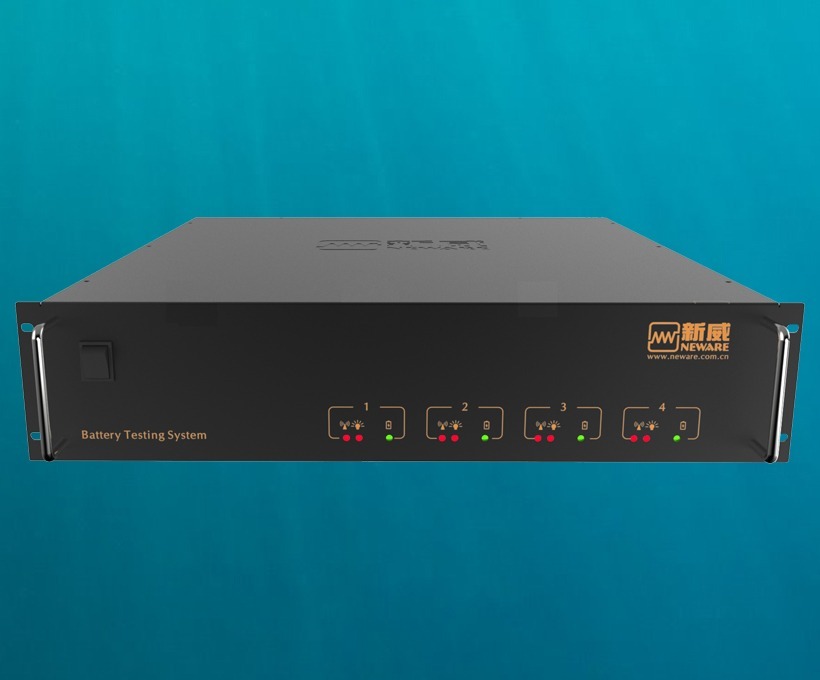

Neware Technology BTS9000-5V5A-8CH 8-Channel Battery Tester System
This product solves the problem of inaccurate battery testing, which can lead to faulty batteries and damaged devices. The Neware Technology BTS9000-5V5A-8CH 8-Channel Battery Tester System provides a clear solution to this problem by offering high-accuracy testing results. With its advanced features, this product gives you the ability to test batteries with precision and reliability. The Neware Technology BTS9000-5V5A-8CH 8-Channel Battery Tester System is designed to meet the needs of professionals and hobbyists, providing them with a reliable and accurate way to test batteries.
Key Features
- 8-channel battery tester, allowing you to test multiple batteries at once
- High-accuracy testing results, with an accuracy of 0.02% of FS
- Advanced features, including high-acquisition frequency and high accuracy
- Independent control of each channel, giving you more flexibility and control
- Ability to test batteries with different modes, including CC, CV, and CP
- End conditions, including voltage, current, and capacity, giving you more options
- Data acquisition method, using Kelvin connection for high-accuracy results
- Database, using MySQL for easy data management and analysis
- Data export, allowing you to export data in various formats, including Xls, txt, and PDF
- Communication, using Ethernet for easy connection and communication
- Operating system, compatible with Windows 7/10 64 bit for the best performance
Specifications
| General |
|
| AC input |
AC 220V ±10% 50Hz / AC 110V ±10% 50Hz |
| Resolution |
AD：16bit；DA：16bit |
| Input impendence |
≥ 500MΩ (poweron), LC=100uA(poweroff) |
| Input power |
500w |
| Features |
4 ranges, highacquisition frequency, high accuracy |
| Channels controlmode |
Independent control |
| Voltage |
|
| Voltage output |
Charge：0.7 V~5V；Discharge：0.7 V~5V（0.5m data wire） |
| Lowestoutput voltage |
0.7 V（0.5m data wire） |
| Accuracy |
± 0.02% of FS |
| Stability |
±0.005% of FS |
| Current |
|
| Currentoutput ranges |
Range 1: 0.1uA---150uA
Range 2：150uA---5mA
Range 3：5mA---150mA
Range 4: 150mA---5A |
| Accuracy |
± 0.02% of FS
Range 1: ± 30nA
Range 2：± 1uA
Range 3：± 30uA
Range 4: ± 1mA |
| Stability |
±0.005% of FS |
| Power |
|
| Output power/CH |
25W |
| Stability |
± 0.01% of FS |
| Time |
|
| Current response time |
<= 100μS (10% to 90% or 90% to 10%) |
| Testing step time range |
>=10ms |
| Data record |
Data record conditions |
| Time △t |
>=1ms |
| Voltage △U |
>= 1mV |
| Current △I |
>= 100nA |
| Frequency |
1000Hz , Pulse |
| Charge |
|
| Modes |
CC,CCCV,CV,CP,CR |
| End conditions |
Voltage,Current, △t, Capacity, Energy, Power |
| Discharge |
|
| Modes |
CC,CP,CR, Pulse |
| End conditions |
Voltage,Current, △t, Capacity |
| Pulse |
|
| Charge |
CC,CP |
| Discharge |
CC,CP |
| Min.pulse width |
400μs |
| Pulses counts |
Up to 16 changes in each pulse |
| End conditions |
Voltage, △t |
| DCIR |
|
| DCIR |
Canbe calculated by software |
| Cycle |
|
| Max cycles |
65535 |
| Max steps in each cycle |
255 |
| Max cycle nest |
4 |
| Protection |
|
| Safety protection |
Power-off data protection |
| Safety protection |
Off-line operation mode |
| Safety protection |
User-defined protection conditions, such as upper and lower limited current/voltage,
delay time, temperature, etc.
|
| Data |
|
| Data acquisitionmethod |
Kelvin connection |
| Database |
MySQL |
| Data export |
Xls,txt, PDF, Graph/Plot |
| Communication |
Ethernet |
| General |
|
| Channels |
8 |
| Dimensions |
483313（cm） |
| Clamps |

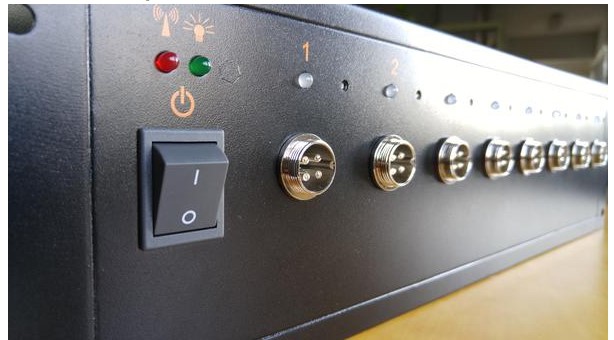

204 Air-plug,Polymer or alligator available |
| Operating system |
Windows 7/10 64 bit forthe best |
| Operation and storage environment requirement |
|
| Operation environment temperature |
0℃~40℃ (When the temperature is 25±10℃, the accuracy error
causedbytemperature change is less than50ppm /℃
|
| Storage environment temperature |
-10℃~50℃ |
| Operation environment humidity |
≤70% RH(nomoisture condensation) |
| Storage environment humidity |
≤80% RH(nomoisture condensation) |
