Tired of slow fiber links that make your business lose time and money? The C-Data FD1601S-B2, Mini 1-Port GPON OLT with 10G Uplink & LCD Screen is a compact device that brings fast GPON service to small sites. It solves the problem of limited bandwidth and complex equipment in tight spaces. If you need reliable fiber without a full-size rack, this Mini unit is the answer.

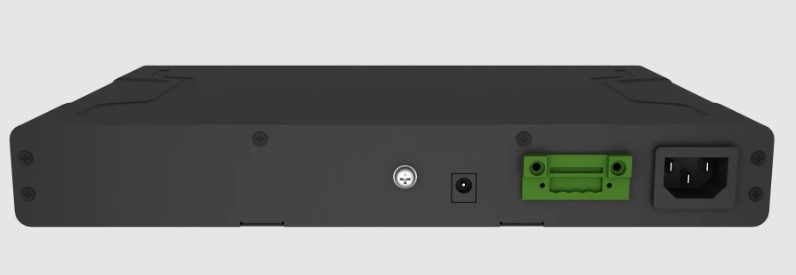

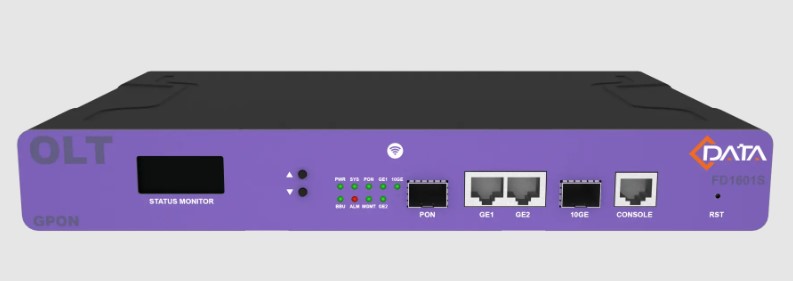

C-Data FD1601S-B2, Mini 1-Port GPON OLT with 10G Uplink & LCD Screen
Many small offices and remote locations struggle with outdated copper lines that cannot keep up with modern apps. The lack of speed hurts productivity and frustrates users. This Mini OLT replaces the old hardware with a single port that can serve up to 128 users over 20 km. The built-in 10 Gigabit uplink and clear LCD display let you manage the network easily and keep traffic flowing.
Key Features
-
- Two 10/100/1000 M auto-negotiation ports and one 10 Gbps uplink.
- One GPON port with SFP slot for flexible fiber options.
- ITU-T G.984.2 Class B+/C+/C++ support.
- Maximum splitting ratio 1:128 for large user groups.
- Transmission distance up to 20 km on single-mode fiber.
- Downstream 2.5 Gbps, upstream 1.25 Gbps speeds.
- Front and return wavelengths 1490 nm and 1310 nm.
- SC/UPC connector for easy fiber connection.
- Backplane bandwidth 27.75 G for smooth data flow.
Specifications
| Mechanics |
|
| Dimensions |
312.8mm(L) × 192mm(W) × 44mm(H) |
| Weight |
1.59Kg |
| Hardware |
|
| Uplink Port |
2 × 10/100/1000M auto-negotiation Ethernet ports, 10 Gigabit uplink port |
| PON Port Quantity |
1 |
| Physical Interface |
SFP slot |
| Interface Type |
GPON: ITU-T G.984.2 Class B+/Class C+/Class C++ |
| Max Splitting Ratio |
GPON: 1:128 |
| Management Port |
1 CONSOLE local management port |
| PON Port Attribute |
|
| Transmission Distance |
20KM |
| Port Rate |
GPON: Downstream: 2.5Gbps, Upstream: 1.25Gbps |
| Wavelength |
Forwarding: 1490nm, Receiving: 1310nm |
| Interface Type |
SC/UPC |
| Fiber Type |
9/125μm SMF (Single Mode Fiber) |
| Light Transmission Power |
Class B+: +1.5 ~ +5dBm, Class C+: +3 ~ +7dBm, Class C++: +4.5dBm ~ +10dBm,
Class C++++: +7.5dBm ~ +10.5dBm
|
| Receiving Sensitivity |
Class B+: -28dBm, Class C+: -30dBm, Class C++: -31dBm, Class C++++: -30dBm |
| Saturation Power |
Class B+: -8dBm, Class C+: -12dBm, Class C++: -10dBm, Class C++++: -10dBm |
| Backplane Bandwidth |
27.75G |
| Power Supply |
|
| AC Input |
AC 100V ~ 240V, 47~63Hz |
| DC Input |
External adapter mode 12V/2.5A |
| Environment |
|
| Working Temperature |
-15 ~ 50℃ |
| Storage Temperature |
-40 ~ 85℃ |
| Ambient Humidity |
5 ~ 90% (Non-condensing) |
