Are you tired of slow internet speeds and unreliable connections? Do you want to experience the power of high-speed internet in your home or office? Look no further than the Calix GigaPoint GP1100G, a revolutionary Optical Network Unit that provides fast and reliable internet connectivity. With its advanced technology and sleek design, this device is perfect for anyone looking to upgrade their internet experience. Many people struggle with slow internet speeds, which can be frustrating and affect productivity. The Calix GigaPoint GP1100G is here to solve this problem, providing a fast and reliable connection that will change the way you work and play online.

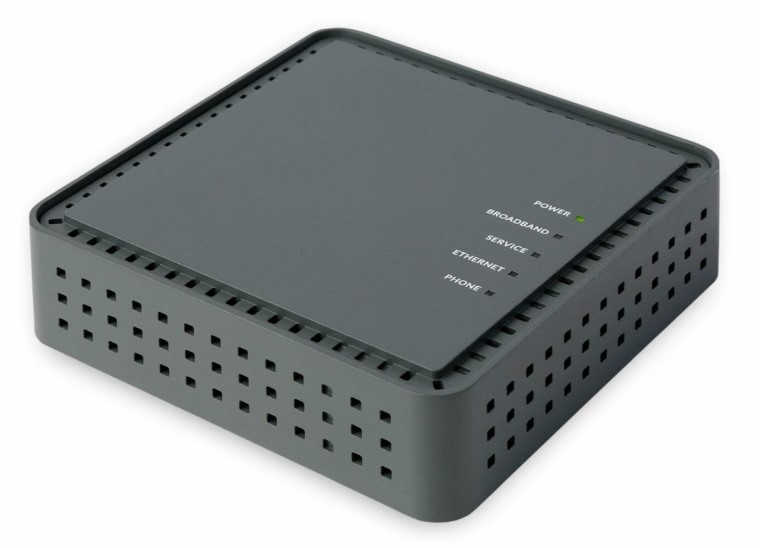

Calix GigaPoint GP1100G, 2.5GE 1 POTS GPON AM Power Adapter Optical Network Unit
The Calix GigaPoint GP1100G solves the problem of slow internet speeds by providing a fast and reliable connection. This is important because slow internet speeds can affect productivity and make it difficult to complete tasks online. The Calix GigaPoint GP1100G gives a clear solution by providing a high-speed connection that is perfect for streaming, gaming, and other online activities. With its advanced technology and sleek design, this device is perfect for anyone looking to upgrade their internet experience. The Calix GigaPoint GP1100G is a powerful tool that provides a fast and reliable connection, making it easy to stay connected and productive.
Key Features
- 2.5GE Ethernet port
- 1 POTS port
- GPON AM Power Adapter
- Optical Network Unit
- Supports 802.3, 802.3AB, 802.3U, 802.11p, 802.11Q, and 802.3bz
- MTU of 2000 Bytes
- Operating temperature of 0 to 40 degrees Celsius
- Storage relative humidity of 5 to 95% noncondensing
- Certified to FCC Part 15 Class B, ICES-003 Class B, and CISPR24 and CISPR35
- Typical power consumption of 7W
- Maximum power consumption of 9W
Specifications
| Mechanical Specifications |
|
| Length |
4.13 in (10.5 cm) |
| Width |
3.54 in (9.0 cm) |
| Height |
1.22 in (3.1cm) |
| Weight |
5.80 oz (166 g) |
| PON Characteristics |
|
| Max. split |
64 GPON |
| Max. reach |
58 km (36 miles) with Class+/FEC, 20km (12.4 miles) with Class B+/non-FEC |
|
Maximum Optical Distribution
Network (ODN) Attenuation
|
GPON Class B+ 28 dB
GPON Class C+ 32 dB
|
| Optical Receiver |
1490 nm:GPON Class B+ -27 dBm to -8 dBm, GPON Class C+ -30 dBm to -8 dBm |
| Optical Transmitter |
1310 nm:+0.5 dBm to +5 dBm |

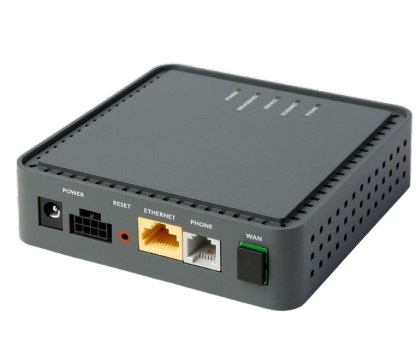

| Interfaces |
|
| Data/IPTV |
One 10/100/1000/2500 BASE-T Ethernet port, RJ-45 connector |
| Telephony |
One RJ-11 connector |
| PON |
Single 9/125 μm (single mode) fiber, SC/APC connector, minimum 50 dB return loss |
| Power |
2-pin connector, 8-pin connector |
| Telephony |
|
| General |
SIP |
| Number of lines |
1 |
| RENs |
5 maximum |
| Drop length |
Maximum 500 feet (152.4 m) |
| Ring Voltage |
55 VAC @ 4 REN Load |
| Data |
|
| Drop length |
2500BASE-TX with CAT5E cable, 262 feet (80 m) maximum,
328 feet (100 m) maximum with CAT5e cable 1000BASE-TX, 328 feet (100 m)maximum
|
| Auto MDI/MDIX crossover |
For 2500BASE-TX, 1000BASE-TX, 100BASE-TX, and 10BASE-T ports |
| Traffic Management and QoS |
802.1Q VLAN; 802.1p Video, Data and Management Priorities;
Q-in-Q tagging; Per-Port Rate Shaping; Rate Limiting
|
| MTU |
2000 Bytes |
| Environmental |
|
| Operating temperature |
Indoor ambient temperature, 0° to 40°C (32° to 104°F) |
| Operating/storage relative humidity |
5 to 95% noncondensing |
| Certification and Compliance |
|
| Emissions |
FCC Part 15 Class BIC ICES-003 Class BCISPR24 and CISPR35 |
| Safety |
UL62368 and UL1697 approved |
| IEEE |
802.3, 802.3AB, 802.3U, 802.11p, 802.11Q, 802.3bz (2500BASE-T) |
| Powering and Alarms |
|
| 2-pin connector |
For use with AC/DC adapter |
| 8-pin connector |
For use with UPS |
| Input voltage |
12 V DC (nominal), 10.5 V DC (min), 14.4 V DC (max) |
| External Power Adapter |
12 V DC, 1.5 A (Sold Separately) |
| Typical Power |
7 W |
| Maximum Power |
9 W |
| Battery backup time rated capacity |
8 hours based on Telcordia GR-909 calculation methods using recommended UPS.
|
