Are you tired of slow internet speeds and unreliable connections? Do you want to experience the future of broadband technology? Look no further than the Calix GigaPoint GP1100X, 10GE XGS-PON optical network terminal (ONT). This revolutionary device is designed to provide lightning-fast speeds and unparalleled reliability, making it the perfect solution for homes and businesses alike. With its advanced technology and user-friendly design, the Calix GigaPoint GP1100X is the perfect choice for anyone looking to upgrade their internet experience. As a Calix product, you can trust that you are getting a high-quality device that will meet all your needs.

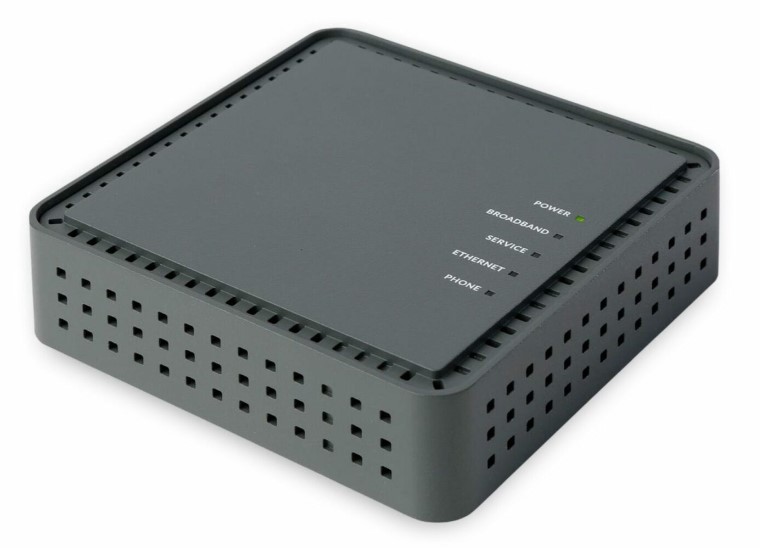

Calix GigaPoint GP1100X, 10GE XGS-PON optical network terminal (ONT)
The Calix GigaPoint GP1100X solves the problem of slow internet speeds and unreliable connections by providing a fast and stable connection. This problem matters to users because it can affect their productivity, entertainment, and overall quality of life. The Calix GigaPoint GP1100X gives a clear solution by providing a reliable and fast connection, making it perfect for streaming, gaming, and other high-bandwidth activities. With its advanced XGS-PON technology, the Calix GigaPoint GP1100X is capable of delivering speeds of up to 10 Gbps, making it one of the fastest ONTs on the market.
Key Features
- 10GE XGS-PON optical network terminal (ONT)
- Supports speeds of up to 10 Gbps
- Advanced XGS-PON technology
- Fast and reliable connection
- Easy to use and manage
- Cost-effective solution for broadband connectivity
- Future-proof design
- Supports fiber-to-the-home (FTTH) and fiber-to-the-building (FTTB) applications
- Perfect for high-bandwidth activities such as online gaming and video streaming
- Compact and lightweight design
- Low power consumption
Specifications
| Mechanical Specifications |
|
| Length |
4.13 in (10.5 cm) |
| Width |
4.13 in (10.5 cm) |
| Height |
1.22 in (3.1cm) |
| Weight |
7.23 oz (205 g) |
| PON Characteristics |
|
| Max. split* |
128 XGS-PON |
| Maximum Optical Distribution (ODN) Attenuation |
XGS, 29 dB |
| Optical receiver 1577nm |
-29dBm to -9dBm |
| Optical transmitter 1270nm |
+4 to +9 dBm |
| Interfaces |
|
| Data/IPTV |
One 10/100/1000/2500 BASE-T Ethernet port, RJ-45 connector |
| Telephony |
One RJ-11 connector |
| PON |
Single 9/125 μm (single mode) fiber, SC/APC connector, minimum 50 dB return loss |
| Power |
2-pin connector, 8-pin connector |
| Telephony |
|
| General |
SIP |
| Number of lines |
1 |
| RENs |
5 maximum |
| Drop length |
Maximum 500 feet (152.4 m) |
| DS0 Output |
23.5 mA to 25 mA |
| Ring Voltage |
55 V AC |
| Data |
|
| Drop length |
328 feet (100 m) maximum, using CAT5 cable, 1000BASE-TX262 feet (80 m)
maximum, using CAT5e cable 2500BASE-TX,262 feet (80 m) maximum,
using CAT6 cable
|
| Auto MDI/MDIX crossover |
For 2500BASE-TX, 1000BASE-TX, 100BASE-TX, and 10BASE-T ports |
| Traffic Management and QoS |
802.1Q VLAN; 802.1p Video, Data and Management Priorities; Q-in-Q tagging;
Per-Port Rate Shaping; Rate Limiting
|
| MTU |
9974 Bytes |
| Environmental |
|
| Operating temperature |
Indoor ambient temperature, 0° to 40°C (32° to 104°F) |
| Operating/storage relative humidity |
5 to 95% non-condensing |
| Certification and Compliance |
|
| Emissions |
FCC Part 15 Class BIC ICES-003 Class BCISPR24 and CISPR35 |
| Safety |
UL62368 and UL1697 approved |
| IEEE |
802.3, 802.3AB, 802.3U, 802.1p, 802.1Q, 802.3bz (2500BASE-T) |
| Powering and Alarms |
|
| 2-pin connector |
For use with AC/DC adapter |
| 8-pin connector |
For use with UPS |
| Input voltage |
12 V DC (nominal), 10.5 V DC (min), 14.4 V DC (max) |
| External Power Adapter |
12 V DC, 1.5 A (Sold Separately) |
| Typical Power |
7 W |
| Maximum Power |
10 W |
| Battery backup time rated capacity |
8 hours based on Telcordia GR-909 calculation methods using recommended UPS. |
