If you are looking for a reliable and fast optical network terminal, you may be facing a problem with your current internet connection. Slow speeds and dropped connections can be frustrating and affect your daily life. The Calix GigaPoint GP1101X, 10GE XGS-PON optical network terminal (ONT) is here to solve this problem by providing a clear and fast connection. With its advanced technology, it gives you a stable and secure internet connection that you can rely on. This product matters to you because it can improve your overall internet experience and make your life easier. By giving you a clear solution to your internet problems, the Calix GigaPoint GP1101X, 10GE XGS-PON optical network terminal (ONT) is the perfect choice for anyone looking for a fast and reliable internet connection.

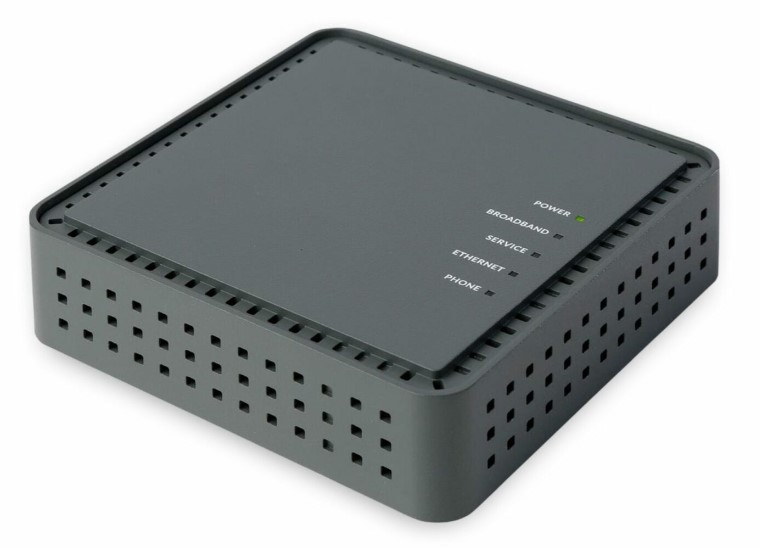

Calix GigaPoint GP1101X, 10GE XGS-PON optical network terminal (ONT) with Calix
Imagine having a fast and reliable internet connection that you can count on. The Calix GigaPoint GP1101X, 10GE XGS-PON optical network terminal (ONT) is a game-changer for anyone looking for a stable internet connection. This product is used for providing a fast and secure internet connection to homes and businesses. One of the real buyer problems that this product solves is the issue of slow internet speeds. With the Calix GigaPoint GP1101X, 10GE XGS-PON optical network terminal (ONT), you can say goodbye to slow speeds and hello to a fast and reliable connection. The Calix brand is known for its high-quality products, and this one is no exception. By choosing the Calix GigaPoint GP1101X, 10GE XGS-PON optical network terminal (ONT), you can trust that you are getting a product that is designed to provide you with the best possible internet experience.
Key Features
- 10GE XGS-PON optical network terminal
- Provides a fast and reliable internet connection
- Stable and secure connection
- Perfect for homes, businesses, and large enterprises
- Ideal for applications that require high-speed internet
- Easy to install and use
- Supports 802.1Q VLAN, 802.1p, and 802.3AB
- Supports traffic management and QoS
- Maximum optical distribution, (ODN) attenuation of 29 dB
- Optical receiver 1577nm, -28dBm to 9dBm
- Optical transmitter 1270nm, +4to +9 dBm
Specifications
| Length |
5.3 in (135 mm) |
| Width |
5.3 in (135 mm) |
| Height |
1.30 in (33 mm) |
| Weight |
14.6 oz (413 g) |
| PON Characteristics |
|
| Max. split |
128 XGS-PON |
| Max. reach* |
40 km (24.9 miles) |
| Maximum Optical Distribution, (ODN) Attenuation |
XGS, 29 dB |
| Optical receiver 1577nm |
-28dBm to 9dBm |
| Optical transmitter 1270nm |
+4to +9 dBm |

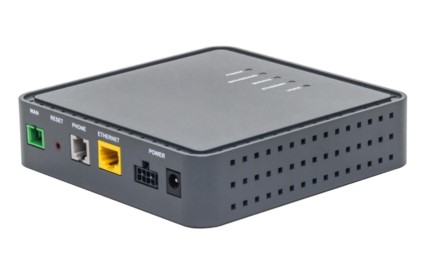

| Interfaces |
|
| Data/IPTV |
One 1000/2500/10G BASE-T Ethernet port, RJ-45 connector |
| Telephony |
One RJ-11 connector |
| PON |
Single 9/125 μm (single mode) fiber, SC/APC connector, minimum 50 dB return loss |
| Power |
2-pin connector, 8-pin connector |
| Telephony |
|
| General |
SIP, H.248, MGCP |
| Number of lines |
1 |
| RENs |
5 maximum |
| Drop length |
Maximum 500 feet (152.4 m) |
| DS0 Output |
23.5 mA |
| Ring Voltage |
55 V AC |
| Data |
|
| Drop length |
328 feet (100 m) maximum, using CAT5 cable |
| Auto MDI/MDIX crossover |
For 1000/2500/10G BASE-T ports |
| Traffic Management and QoS |
802.1Q VLAN; 802.1p Video, Data and Management Priorities; Q-in-Q tagging; Per-Port Rate Shaping; Rate Limiting |
| MTU |
9600 Bytes |
| Environmental |
|
| Operating temperature |
Indoor ambient temperature, 0° to 40°C (32° to 104°F) |
| Operating/storage relative humidity |
8 to 95% non-condensing |
| Certification and Compliance |
|
| Emissions |
FCC Part 15 Class BIC ICES-003 Class BCISPR24 and CISPR35 |
| Safety |
UL62368 and UL1697 approvedIEEE: 802.3, 802.3AB, 802.3U, 802.1p, 802.1Q, 802.3bz |
| Powering and Alarms |
|
| 2-pin connector |
For use with AC/DC adapter |
| 8-pin connector |
For use with UPS |
| Input voltage |
12 V DC (nominal), 10.5 V DC (min), 14.4 V DC (max) |
| External Power Adapter |
12 V DC, 1.5 A |
| Typical Power |
12 W |
| Battery backup time rated capacity |
8 hours based on Telcordia GR-909 calculation methods using recommended UPS. |
