Tired of blurry live streams and constant manual focus adjustments? You need a camera that delivers sharp 4K images while you focus on the content, not the equipment. Canons PTZ solution removes guesswork with hybrid autofocus and 20x optical zoom, so every presentation, classroom or remote interview looks professional. The CR-N300 lets you pan, tilt and zoom from a single control panel, delivering reliable performance in any lighting condition.

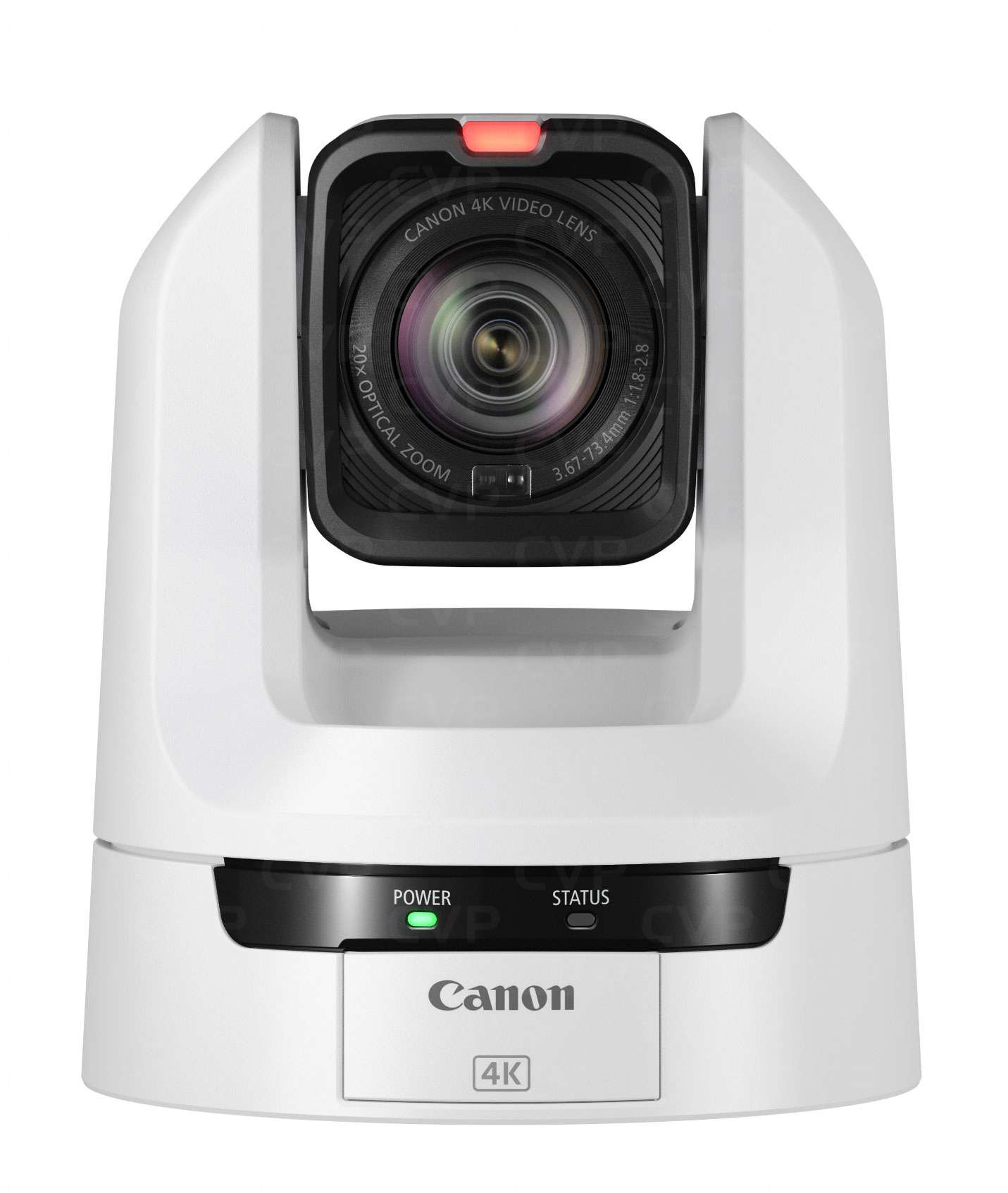

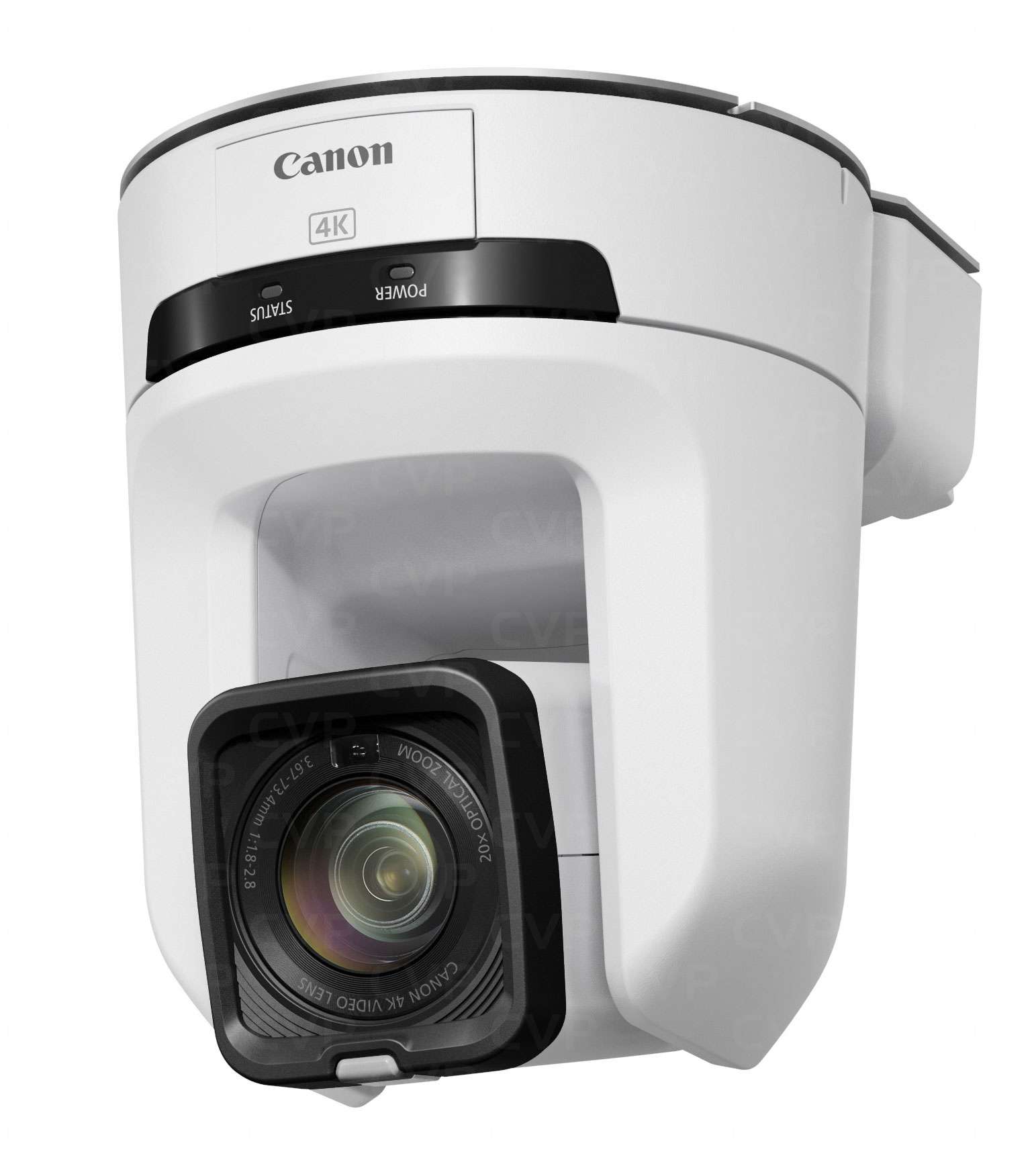

Canon CR-N300 White PTZ Camera 1/2.3" 4K UHD CMOS Hybrid autofocus SDI 20x
The Canon CR-N300 White PTZ Camera 1/2.3" 4K UHD CMOS Hybrid autofocus SDI 20x is a PTZ camera built for conference rooms, studios and live-event streaming. It combines a 1/2.3" sensor, 20x optical zoom and built-in ND filter, offering flexibility for close-ups and wide shots. Connectivity includes SDI, HDMI, IP, PoE+ and USB, making integration straightforward for any production workflow.
Benefits
- Capture crystal clear 4K video without manual focus hunting.
- Zoom in 20 times while keeping subjects sharp in any lighting.
- Control camera remotely via LAN, Wi-Fi or IR for flexible setups.
- Switch between SDI, HDMI or IP streams to match existing gear.
- Store up to 100 preset angles for instant scene changes.
- Power the unit with PoE+ to reduce cables and installation time.
Features
- 1/2.3" 8.29 MP 4K UHD sensor
- 20x optical zoom with 8-blade aperture
- Hybrid AF and continuous focus modes
- Built-in motorized ND filter
- 170 pan and 130 tilt range
- PoE+ power over Ethernet
- SDI, HDMI and IP outputs
- 100 programmable preset positions
Specifications
| Camera |
|
| Image Sensor Type |
1/2.3" single-plate CMOS sensor |
| Effective Pixels |
Approx. 8.29 MP (3840 × 2160) |
| Lens |
f = 3.67 – 73.4 mm, F/1.8 – 2.8, 20× optical zoom, 8-bladed circular aperture |
| Optical Zoom |
20× |
| Digital Zoom |
20× |
| Focal Length |
3.67 – 73.4 mm (f/1.8 – 2.8) |
| 35mm Equivalent Focal Length |
4K UHD: approx. 29.3 (W) – 601 mm (T); Full HD: approx. 30.5 (W) – 627 mm (T) |
| Angle of View (4K UHD) |
Horizontal: 65.6° (W) – 3.6° (T); Vertical: 39.8° (W) – 2.0° (T) |
| Angle of View (Full HD) |
Horizontal: 63.5° (W) – 3.4° (T); Vertical: 38.4° (W) – 1.9° (T) |
| Minimum Subject Illumination |
Approx. 1.5 lux (1/30 sec., 59.94P, Program AE, auto slow shutter on) |
| Shutter Speed |
1/6 – 1/2000 sec. |
| Iris |
Manual / Automatic |
| Gain |
0.0 dB – 36 dB |
| ND Filter |
Built-in (1/8 at maximum, gradation ND), motor operated |
| Optical Low Pass Filter |
Yes |
| White Balance |
Auto (AWB), Set A, Set B, Daylight (5600 K), Tungsten (3200 K), Colour Temp (2000–15000 K), Manual |
| Focus |
|
| Focus Mode |
Manual, Continuous AF |
| AF Type |
Hybrid AF, Contrast AF |
| Gamma |
Normal1 (Standard), Normal3 (BT.709) |
| Pan & Tilt |
|
| Pan Range |
±170° |
| Pan Speed |
0.2° – 300°/sec |
| Tilt Range |
−30° to +100° |
| Tilt Speed |
0.2° – 170°/sec |
| Video Output Format – SDI |
|
| SDI Resolutions |
1920×1080 (59.94P/i, 50.00P/i, 29.97P, 25.00P, 23.98P); 1280×720 (59.94P, 50.00P) |
| SDI Color Sampling |
4:2:2 10-bit |
| SDI Notes |
Same format required for SDI & HDMI; no SDI output when HDMI is set to 3840×2160 |
| Video Output Format – HDMI |
|
| HDMI Resolutions |
3840×2160 (29.97P, 25.00P, 23.98P); 1920×1080; 1280×720 |
| HDMI Color Sampling |
4:2:2 10-bit |
| Video Output Format – IP |
|
| IP Resolutions |
3840×2160, 1920×1080, 1280×720, 640×360 |
| IP Frame Rates |
59.94 / 29.97 / 14.99 / 5.00 fps (varies by resolution) |
| IP Color Sampling |
4:2:0 8-bit |
| USB / Other Output |
|
| USB Motion JPEG |
1920×1080 and other resolutions (Hz-dependent) |
| YUV Output |
640×360 (Hz-dependent) |
| Protocols |
Canon XC, RTSP/RTP, NDI |
| Preset |
|
| Preset Positions |
Max. 100 (including home position) |

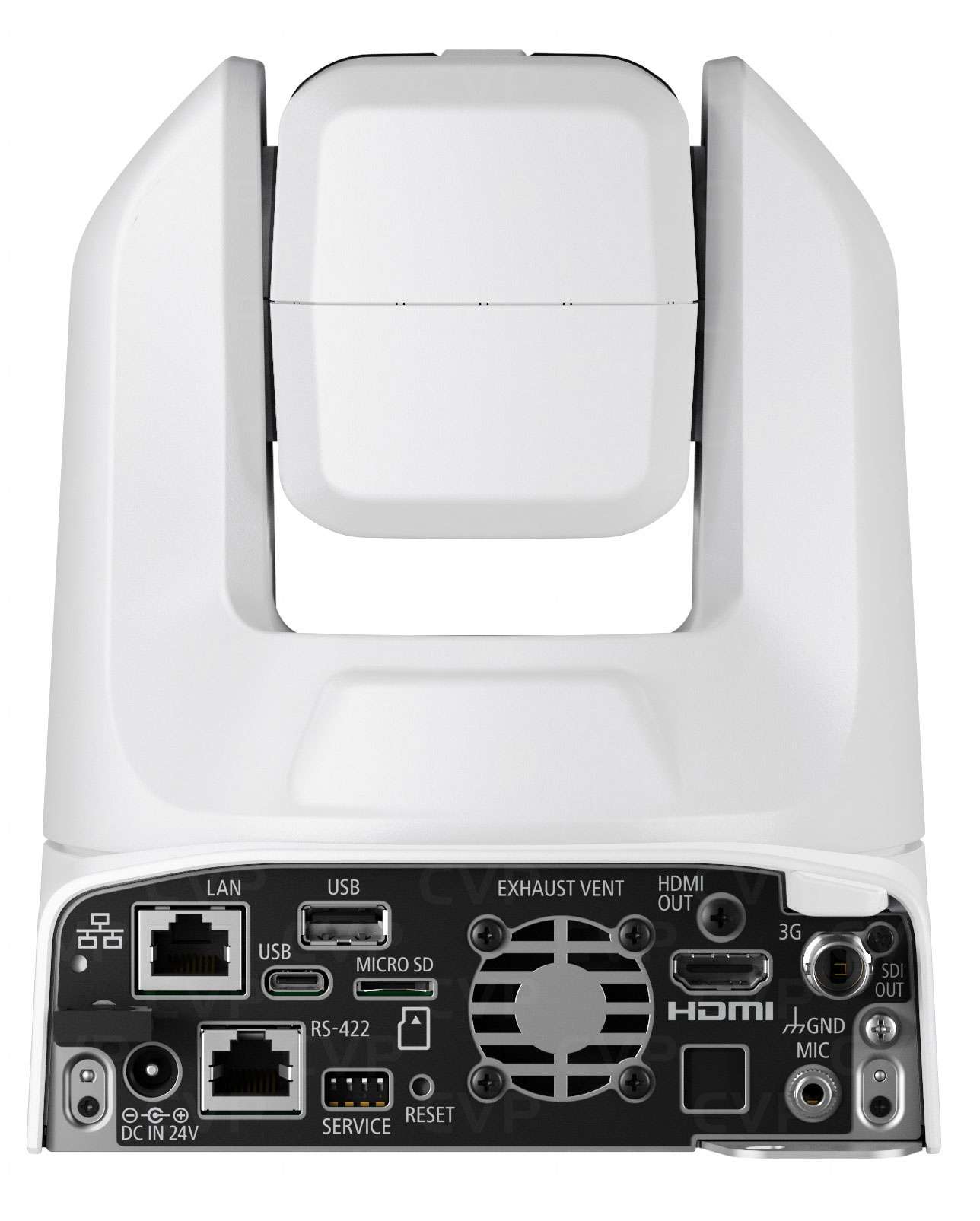

| Interface & Connectivity |
|
| Control Interfaces |
LAN, Wi-Fi, Serial, IR |
| Network Terminal |
LAN ×1 (RJ45, 1000Base-T) |
| 3G-SDI Output |
BNC ×1 (SMPTE compliant, embedded audio & timecode) |
| HDMI Output |
HDMI ×1 (output only) |
| RS-422 |
RJ45 ×1 |
| MIC Terminal |
3.5 mm stereo mini jack (MIC −72 dBV / LINE −10 dBV) |
| USB Terminals |
Type-A (USB 2.0) ×1, Type-C (USB 3.1) ×1 |
| Power |
|
| Power Supply |
PoE+ via LAN (IEEE 802.3at) |
| External Power |
24 V DC (AC adaptor included) |
| Power Consumption |
PoE+: ~16.2 W max; DC input: ~15.0 W max |
| Operating Conditions |
|
| Operating Temperature |
0 °C to +40 °C |
| Operating Humidity |
10% – 90% (non-condensing) |
| Physical |
|
| Dimensions (W × H × D) |
154 × 178 × 164 mm |
| Weight |
2.2 kg (body only) |
| Accessories |
|
| IR Remote Control |
WL-N01 (included) |
