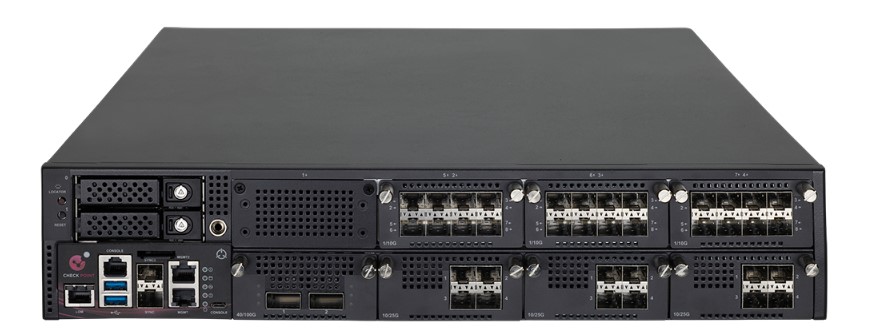

Check Point Quantum Force 29200 CPAP-SG29200-SNBT Security Appliance
The Check Point Quantum Force 29200 CPAP-SG29200-SNBT is a high-performance 2U rack-mountable security appliance designed for enterprise network protection, firewall, next-generation firewall, intrusion prevention, threat prevention, and VPN applications. It includes a 1-year SandBlast Security Subscription Package and provides high-capacity security processing for demanding network environments.
The Quantum Force 29200 delivers up to 1.4 Tbps firewall throughput, 165 Gbps NGFW throughput, 63.5 Gbps Threat Prevention throughput, and 235 Gbps IPS throughput. It supports up to 30 million concurrent connections and processes up to 1.5 million connections per second, providing substantial capacity for high-traffic enterprise networks.
For network connectivity, the appliance includes 2 × 1/10GbE copper management ports, 2 × 1/10/25GbE SFP28 fiber sync ports, and 8 × 1/10GbE SFP+ ports. Two 10 GbE short-range transceivers are included, while dual AC power supplies provide redundant power operation.
The appliance is equipped with 128 GB RAM and a 960 GB NVMe drive. Its VPN throughput reaches 130 Gbps using AES-GCM with 1452-byte traffic, while firewall latency is rated at 1.85 µs. Telescopic rails are included for rack installation.
The 2U chassis measures 44.2 × 61 × 8.8 cm and weighs 19.1 kg. It supports 100–240 V AC input at 50/60 Hz and is designed for enterprise security deployments requiring high throughput, connectivity, and power redundancy.
Main Features
- 1.4 Tbps firewall throughput
- 165 Gbps NGFW throughput
- 235 Gbps IPS throughput
- 63.5 Gbps Threat Prevention throughput
- Up to 30 million concurrent connections
- Up to 1.5 million connections per second
- 130 Gbps VPN throughput
- 8 × 1/10GbE SFP+ ports
- 2 × 1/10/25GbE SFP28 sync ports
Specifications:
| Product |
Quantum Force 29200 Base Security Appliance |
| SKU / Part Number |
CPAP-SG29200-SNBT |
| Form Factor |
2U rack-mountable |
| Management Ports |
2 × 1/10GbE copper |
| Sync Ports |
2 × 1/10/25GbE SFP28 fiber |
| SFP+ Ports |
8 × 1/10GbE SFP+ |
| RAM |
128 GB |
| Storage |
1 × 960 GB NVMe |
| Included Transceivers |
2 × 10 GbE Short Range Transceivers |
| Power Supplies |
2 × AC PSUs |
| Rails |
Telescopic rails |
| Security Subscription |
SandBlast (SNBT) Security Subscription Package for 1 Year |
| Firewall Throughput |
1.4 Tbps |
| NGFW Throughput |
165 Gbps |
| Threat Prevention Throughput |
63.5 Gbps |
| IPS Throughput |
235 Gbps |
| Connections |
Up to 30,000,000 concurrent connections |
| Connection Rate |
1,500,000 connections per second |
| VPN Throughput |
130 Gbps (AES-GCM, 1452-byte) |
| Firewall Latency |
1.85 µs |
| Dimensions (W × D × H) |
44.2 × 61 × 8.8 cm |
| Weight |
19.1 kg |
| AC Input |
100–240 V, 50/60 Hz |
| Power Supply Redundancy |
Yes |
