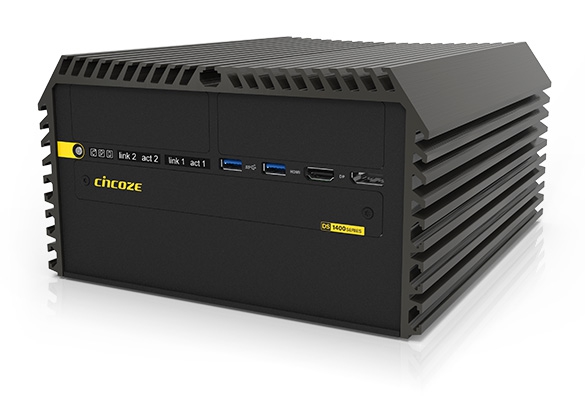

Cincoze DS-1402-R10, Intel Core i7-14700 32GB RAM, Rugged Industrial PC
Cincoze DS-1402-R10 is a rugged industrial PC built for applications that need strong processing performance, flexible storage, and multiple connectivity options in a compact system. It features an Intel Core i7-14700 processor with 32GB DDR5 SODIMM memory, along with 120GB mSATA SSD, 1TB NVMe M.2 SSD, and a 250GB 2.5" SATA SSD configuration.
The system provides flexible memory and storage expansion for industrial computing requirements. It has 2 x DDR5 SODIMM slots supporting up to 64GB capacity, with support for Unbuffered and ECC memory. Storage technology includes SATA, mSATA, and M.2 interfaces, while RAID 0/1/5/10 support allows the storage configuration to be adapted for different system requirements.
The DS-1402-R10 offers extensive connectivity through Intel I219 and I210 GbE LAN interfaces, multiple CMI and MEC interfaces, Mini PCI-E slots, SIM sockets, and an optional PCI/PCIe expansion slot. Its front and rear I/O provide USB, COM, VGA, HDMI, DisplayPort, audio, LAN, power, and other industrial interfaces for connecting displays, peripherals, control equipment, and networking devices.
For industrial environments, the system supports a 9-48V terminal block DC input with reverse power input protection, over-voltage protection, and over-current protection. The integrated SuperCap provides maintenance-free CMOS battery operation. An optional external top fan is available and recommended for CPUs with 65W, while the included wallmount kit provides a practical installation option.
With its compact 227 x 261 x 128 mm case, quad-display support, multiple storage interfaces, expansion capability, and wide DC input range, the Cincoze DS-1402-R10 can support industrial automation, edge computing, machine control, monitoring, networking, and other applications that require expandable rugged computing.
Key features
-
Intel Core i7-14700 processor with 32GB DDR5 SODIMM memory
-
Supports up to 64GB DDR5 memory with Unbuffered and ECC support
-
120GB mSATA SSD, 1TB NVMe M.2 SSD, and 250GB 2.5" SATA SSD
-
Supports RAID 0/1/5/10 storage configurations
-
Multiple Intel GbE LAN, CMI, MEC, and Mini PCI-E interfaces
-
Supports quad displays through VGA, DisplayPort, and HDMI
-
9-48V DC input with reverse, over-voltage, and over-current protection
-
Compact case with optional external fan and included wallmount kit
SPECIFICATION
| CPU Options |
Intel Core i7-14700 (1.5 - 5.4 GHz | 8P/12E/28T | 33MB Smart Cache) |
| System Memory |
32GB DDR5 SODIMM |
| mSATA SSD |
120GB mSATA SSD |
| M.2 NVMe SSD |
1TB NVMe M.2 SSD |
| 2.5" Drive Options |
250GB 2.5" SATA SSD |
| CMI Expansion Slot |
4 x RJ45 Intel I210 GbE LAN |
| CMI Expansion Slot 1 |
4 x RJ45 Intel I210 GbE LAN |
| MEC Expansion Slot |
2 x RJ45 Intel I210 GbE LAN |
| MEC Expansion Slot 1 |
2 x RJ45 Intel I210 GbE LAN |
| Riser Card |
Cincoze RC-E16-01 PCI-E x16, PCI-E x1 Riser Card |
| Ignition Module |
Cincoze CFM-IGN101 Power Ignition Sensing Function, 12V/24V Selectable |
| External Fan Kit |
External Fan Kit |
| OS Software and Installation |
Windows 11 IoT LTSC Enterprise High End |
| Power Supply |
360W 24V AC-DC Adapter with 3-pin Terminal Block |
| Memory |
2 x DDR5 SODIMM slots; Supports up to 64GB Capacity; Supports Unbuffered and ECC |
| Video |
Intel UHD Graphics (CPU Dependent); VGA Max Resolution: 1920x1080@60Hz;
DisplayPort Max Resolution: 3840x2160@30Hz; HDMI Max Resolution: 3840x2160@30Hz;
Supports Quad Displays
|
| Audio |
Realtek ALC888 HD Audio |
| Storage Technology |
2 x SATA Connectors; 3 x mSATA Socket (Shared by Mini PCI-E slots);
1 x M.2 2280 slot (PCI-E 3.0 x4/SATA); Supports RAID 0/1/5/10
|
| Connectivity |
1 x Intel I219 GbE LAN; 1 x Intel I210 GbE LAN |
| Expansion Slots |
1 x PCI/PCIe Expansion slot with Optional Riser Card; 3 x Mini PCI-E slots (Supports mSATA);
2 x SIM Sockets; 2 x High Speed CMI Interface; 2 x Low Speed CMI Interface;
1x CFM IGN Interface
|

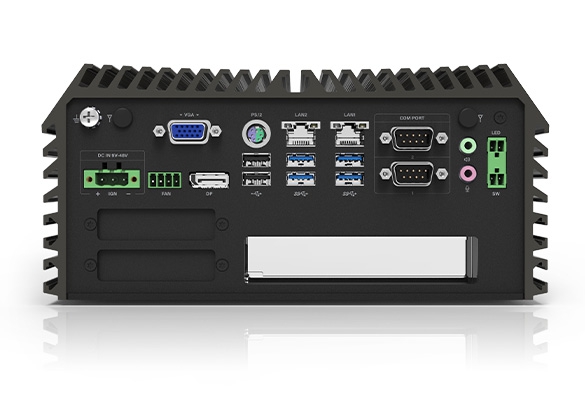

| Rear Panel I/O |
1 x GND Screw
1 x 9-48V Terminal Block DC-IN
1 x VGA
1 x 4-Pin External Fan Terminal Connector
1 x DisplayPort
1 x PS/2
2 x USB 2.0
2 x RJ45 GbE LAN
4 x USB 3.2 (Gen1)
2 x COM (RS232/422/485 with Auto Flow Control, Supports 5V/12V)
2 x Audio I/O
1 x 2-Pin Terminal Block LED
1 x 2-Pin Terminal Block Power Switch |

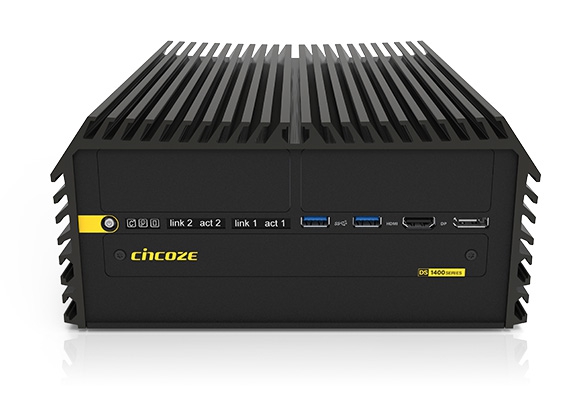

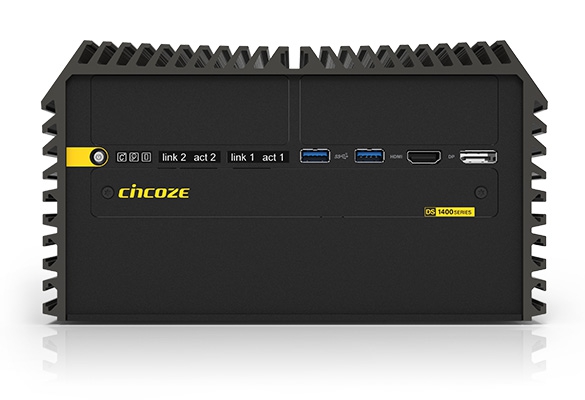

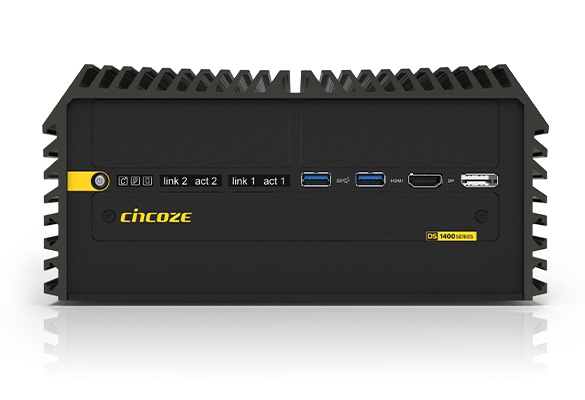

| Front Panel I/O |
1 x Power Button
5 x Status LED (Power, HDD, LAN)
2 x USB 3.2 (Gen2)
1 x HDMI
1 x DisplayPort |
| Drive Support |
1 x 2.5" Front Accessible 2.5" SATA Bay
1 x 2.5" Internal 2.5" SATA Bay
2 x M.2 2280 slot (PCI-E 3.0 x4 or SATA)
3 x Mini PCI-E slots (Supports mSATA) |
| OS Support |
Windows 10; Windows 11; Ubuntu 22.04 |
| Power Supply |
9-48V Terminal Block DC-IN
Reverse Power Input Protection
Over Voltage Protection: 51 - 58V
Over Current Protection: 15A
SuperCap Integrated for CMOS Battery Maintenance-free Operation |
| Case Dimensions |
227 x 261 x 128 mm; 8.9" x 10.3" x 5.0" (in inches) |
| Cooling |
Optional External Top Fan (Recommended for CPU 65W) |
| Mounting |
Includes Wallmount Kit |
