Many organizations face the challenge of managing large amounts of data and providing high-speed network services to their users. This can be a major problem because it can lead to slow network speeds, dropped connections, and lost productivity. The Cisco ASR-9922 Router Chassis 20 Line Card Slot 44RU Aggregation Services System is a solution to this problem. It provides a high-speed and reliable network infrastructure that can handle large amounts of data and provide fast network services to users. With its advanced technology and features, it can help organizations to improve their network performance, increase productivity, and reduce costs.

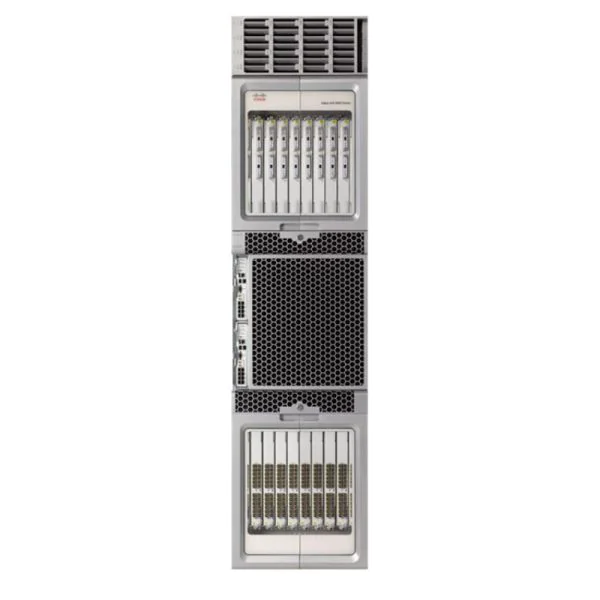

Cisco ASR-9922 Router Chassis 20 Line Card Slot 44RU Aggregation Services System with Cisco
Are you tired of dealing with slow network speeds and dropped connections? Do you need a reliable and high-speed network infrastructure that can handle large amounts of data? The Cisco ASR-9922 Router Chassis 20 Line Card Slot 44RU Aggregation Services System is the answer to your prayers. This powerful router chassis is designed to provide fast and reliable network services to users, and it is ideal for organizations that need to manage large amounts of data. With its advanced features and technology, it can help you to improve your network performance, increase productivity, and reduce costs. Cisco is a well-known and trusted brand in the networking industry, and the ASR-9922 is one of its most popular and reliable products.
Key Features
- 20 line card slots for maximum flexibility and scalability
- 44RU chassis for maximum deployment options
- Supports up to 7 fabric cards for high-speed networking
- Dual redundant route processors for maximum reliability
- 4 fan trays for maximum cooling and reliability
- 4 power entry modules for maximum power flexibility
- Supports various ASR 9000 Series line cards, including 100GbE and multi-rate line cards
- NEBS Level 3 compliant for maximum reliability and performance
- ETSI and EMC standards compliant for maximum compatibility and safety
- Operating temperature range of 41 to 104F (5 to 40C) for maximum reliability
- Storage temperature range of -40 to 158F (-40 to 70C) for maximum flexibility
Specifications
| Product Series |
Cisco ASR 9000 Series |
| Model |
ASR-9922 |
| Product Type |
Aggregation Services Router |
| Chassis Type |
Modular chassis |
| Rack Height |
44 RU |
| Height |
77 in. (1955.4 mm) |
| Width |
17.60 in. (447.04 mm) |
| Depth with Doors |
30.68 in. (779.27 mm) |
| Depth without Doors |
30.19 in. (766.82 mm) |
| Slot Orientation |
Vertical |
| Route Processors |
Dual redundant route processors in 2 slots |
| Architecture |
Route processors segregated from fabric cards |
| Fabric Cards |
Up to 7 Fabric Cards 2 |
| Fan Trays |
4 |
| Power Entry Modules |
4 PEMs |
| Chassis Weight |
413 lb (187.73 kg), 4 PEMs and chassis |
| Configured Weight |
639.5 lb (290.7 kg), 2 RP2, 7 Fabric Cards 2, 4 Fan Trays, 4 PEMs |
| Operating Temperature (Nominal) |
41 to 104°F (5 to 40°C) |
| Operating Temperature (Short-Term) |
23 to 131°F (-5 to 55°C) |
| Operating Humidity (Nominal) |
5 to 90% relative humidity |
| Storage Temperature |
-40 to 158°F (-40 to 70°C) |
| Storage Humidity |
5 to 93% relative humidity |
| Operating Altitude |
-60 to 4000 m |
| Operating System |
Cisco IOS XR |
| Route Processor Options |
ASR-9900-RP-TR, ASR-9900-RP-SE, ASR-9922-RP-TR, ASR-9922-RP-SE |
| High-Speed Interface Support |
Supports various ASR 9000 Series line cards, including 100GbE and multi-rate line cards |
| 100GbE Line Card Support |
4-port, 8-port, 16-port and 32-port 100 Gigabit Ethernet line cards
available for compatible ASR 9922 configurations
|
| NEBS Compliance |
NEBS Level 3 |
| ETSI Standards |
EN300 386; ETSI 300 019 |
| EMC Standards |
FCC Class A, ICES 003 Class A, CISPR 22 Class A, VCCI Class A, BSMI Class A, and others |
