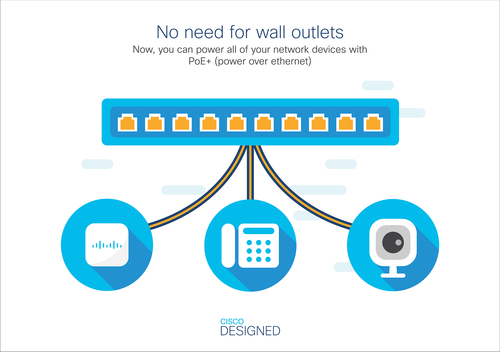

The Cisco Business CBS220-16P-2G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.
Specifications
| Management features |
| MIB support |
Y |
| System event log |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
| Number of VLANs |
256 |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Broadcast storm control |
Yes |
| Flow control support |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
| Jumbo frames |
9216 |
| Jumbo frames support |
Yes |
| Switching capacity |
36 Gbit/s |
| MAC address table |
8192 entries |
| Security |
| BPDU filtering/protection |
Yes |
| Loop protection |
Yes |
| MAC address filtering |
Yes |
| SSH/SSL support |
Yes |
| Security algorithms |
SSL/TLS |
| IGMP entries |
256 |
| IGMP snooping |
Yes |
| Access Control List (ACL) rules |
512 |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client |
| Multicast features |
| Number of multicast groups filtered |
256 |
| Multicast support |
Yes |
| Protocols |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Management protocols |
SNMP |
| Design |
| Market segment |
Business |
| LED indicators |
Yes |
| Reset button |
Yes |
| Product colour |
White |
| Rack mounting |
Yes |
| Performance |
| Firmware upgradeable |
Yes |
| Power |
| Power plug type |
Type C |
| AC input frequency |
50 - 60 Hz |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
130 W |
| Power over Ethernet (PoE) |
Yes |
| Other features |
| Packaging content |
Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
| Weight |
3.03 kg |
| Height |
43.9 mm |
| Depth |
439.9 mm |
| Width |
202.4 mm |
| Packaging data |
| Package weight |
4.61 kg |
| Package height |
106.7 mm |
| Package depth |
574 mm |
| Package width |
342.9 mm |
| Technical details |
| Products per shipping (inner) case |
1 pc(s) |
