Tired of network bottlenecks that slow your office or classroom? The Cisco Catalyst 1300-24P-4G, 24 Port Gigabit PoE, 4x1GE SFP, Managed Switch is built to end those frustrations. It gives you reliable, fast connections for up to 24 devices and powers PoE gear without extra adapters. If you need stable Wi-Fi, smooth video calls, or steady IP camera feeds, this switch is the missing link that keeps everything running.

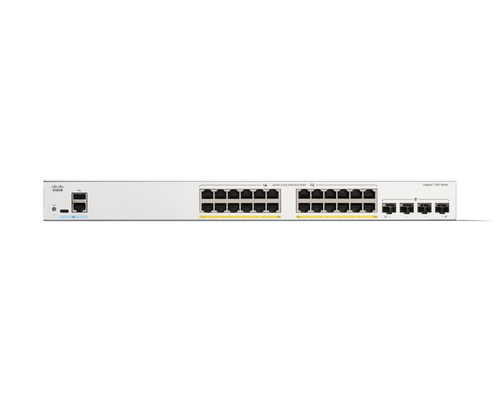

Cisco Catalyst 1300-24P-4G, 24 Port Gigabit PoE, 4x1GE SFP, Managed Switch
Many small to midsize networks suffer from limited bandwidth and tangled power supplies. When a single device fails, the whole office can lose connectivity, causing lost productivity and unhappy users. This Cisco switch solves the problem by combining 24 gigabit Ethernet ports with full PoE support and four uplink SFP slots, so you get both power and data in one tidy box. The managed interface lets you control traffic, set priorities, and monitor health, giving you a clear, dependable network that scales as you grow.
Usages of Cisco
The switch fits perfectly in small offices that need to connect computers, printers, and VoIP phones. It also works well in schools where digital classrooms rely on smart boards and wireless access points. Retail stores can power security cameras and digital signage from the same device. For remote sites or branch offices, the four 1GE SFP ports give a fast back-haul to the main data center, while the built-in QoS keeps video and voice clear.
Benefits
- 24 PoE ports eliminate the need for separate power injectors.
- Full L2/L3 management lets you shape traffic for critical apps.
- Four SFP uplinks provide flexible, high-speed connections.
- Plug-and-play design reduces installation time and cost.
- Robust security features protect against unauthorized access.
Specifications
| Management features |
| MIB support |
Y |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Ports & interfaces |
| Console port |
RJ-45/USB Type-C |
| SFP module slots quantity |
4 |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
| Virtual LAN features |
Private VLAN, Voice VLAN |
| VLAN support |
Yes |
| Broadcast storm control |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Link aggregation |
Yes |
| QinQ implementation |
Selective QinQ |
| Rate limiting |
Yes |
| Spanning tree protocol |
Yes |
| Policy-based routing |
Yes |
| Port mirroring |
Yes |
| Cable types supported |
Cat5e |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
| Packet buffer memory |
1.5 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Number of static routes |
990 |
| Static route |
Yes |
| Number of queues |
8 |
| Switching capacity |
56 Gbit/s |
| MAC address table |
16000 entries |
| Security |
| Authentication |
MAC-based authentication, Web-based authentication |
| Authentication type |
RADIUS, TACACS+ |
| DoS attack prevention |
Yes |
| Queue scheduling algorithms |
Weighted Round Robin (WRR) |
| SSH/SSL support |
Yes |
| Security algorithms |
HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2 |
| IGMP proxy |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) rules |
1024 |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features |
| Multicast support |
Yes |
| Protocols |
| IPv4 & IPv6 features |
ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Design |
| Reset button |
Yes |
| Product colour |
Grey |
| Rack mounting |
Yes |
| Performance |
| Mean time between failures (MTBF) |
698220 h |
| Plug and Play |
Yes |
| Flash memory |
512 MB |
| Internal memory |
1000 MB |
| Memory type |
DDR4-SDRAM |
| Processor frequency |
1.4 MHz |
| Built-in processor |
Yes |
| Power |
| Power plug type |
Type C |
| Power consumption (typical) |
27.5 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 220 V |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
195 W |
| Power over Ethernet (PoE) ports quantity |
24 |
| Power over Ethernet (PoE) |
Yes |
| Other features |
| Packaging content |
Switch, power cable, USB Type C cable and mounting hardware |
| Operational conditions |
| Heat dissipation |
795.2 BTU/h |
| Operating temperature (T-T) |
-5 - 50 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating temperature (T-T) |
-5 - 50 °C |
| Weight & dimensions |
| Weight |
3.53 kg |
| Height |
43.9 mm |
| Depth |
444.5 mm |
| Width |
298.7 mm |
| Packaging data |
| Package weight |
5.77 kg |
| Package height |
105.9 mm |
| Package depth |
575.1 mm |
| Package width |
430 mm |
| Certificates |
| Certification |
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
