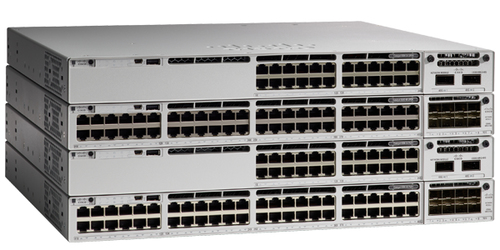

Cisco Catalyst 9300X 48-Port 10G L3 Managed PoE Rackmount Switch
The Cisco Catalyst 9300X is a 48-port Layer 3 managed switch designed for enterprise networking environments requiring high-speed connectivity, advanced switching, and flexible deployment. It features 48 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE+ ports with up to 90 W per port.
The Cisco Catalyst 9300X provides 10 Gigabit Ethernet connectivity with a 2000 Gbps switching capacity and 1488 Mpps forwarding rate. With support for full duplex mode, 9198-byte jumbo frames, and a 32,000-entry MAC address table, it is built for demanding network traffic and efficient data forwarding.
The 1U rack-mountable design makes this Cisco L3 managed switch suitable for structured network installations. Cisco StackWise Technology and StackWise-1T technology enable stacking capabilities, increasing switching capacity to 3000 Gbps and forwarding rate to 2232 Mpps when stacking is used.
Advanced networking features include QoS, EVPN, PIM, VPN support, VPLS, EoMPLS, LACP, RSPAN, PVLAN support, 802.1x authentication, SPAN, and CoPP. The switch also supports IEEE standards including 802.1Q, 802.1x, 802.3ad, 802.3af, 802.3at, 802.3bz, and 802.3an.
The Cisco Catalyst 9300X operates with an AC input of 115–240 V at 50–60 Hz and uses an internal hot-plug power supply. Its rack-mountable enclosure measures 1.7 inches high, 17.5 inches wide, and 22 inches deep, making it suitable for enterprise rack deployments.
Key features
-
48 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE+ ports
-
Up to 90 W UPOE+ power per port
-
Layer 3 managed and stackable switch
-
2000 Gbps switching capacity
-
1488 Mpps forwarding rate
-
9198-byte jumbo frame support
-
32,000-entry MAC address table
-
Internal hot-plug AC power supply
Specifications:
| Miscellaneous |
|
| Color Category |
Gray |
| Compliant Standards |
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, FCC CFR47 Part 15, EN 300 386 V1.6.1, EN 55032 Class A, CISPR 32 Class A, EN 61000-3-2, EN 61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR 35, EN 300 386, EN 55035, TCVN 7317, V-2/2015.04, V-3/2015.04, CNS 13438, KN32, KN35, RoHS |
| Networking |
|
| Manageable |
Yes |
| Form Factor |
Rack-mountable |
| Ports Qty |
48 |
| Subcategory |
Network hubs and switches |
| Type |
Switch |
| Jumbo Frame Support |
9198 bytes |
| Subtype |
10 Gigabit Ethernet |
| Advanced Switching |
Layer 3 |
| Header |
|
| Model |
9300X |
| Product Line |
Cisco Catalyst |
| Packaged Quantity |
1 |
| Dimensions & Weight |
|
| Height |
1.7in |
| Width |
17.5in |
| Depth |
22in |
| Weight |
14.59lbs |
| Manufacturer Warranty |
|
| Service & Support |
Limited warranty - replacement - lifetime - response time: next business day, Technical support - consulting - 90 days |
| Environmental Parameters |
|
| Min Operating Temperature |
23 °F |
| Max Operating Temperature |
113 °F |
| Humidity Range Operating |
5 - 90% (non-condensing) |
| Service & Support |
|
| Type |
Limited lifetime warranty |
| General |
|
| Subtype |
10 Gigabit Ethernet |
| Ports |
48 x 100/1000/2.5G/5G/10GBase-T (UPOE+) |
| Compliant Standards |
IEEE 802.1BA, IEEE 1588v2, IEEE 802.1ae, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3an |
| Jumbo Frame Support |
9198 bytes |
| MAC Address Table Size |
32000 entries |
| Device Type |
Switch - 48 ports - L3 - managed - stackable |
| Status Indicators |
Status |
| Enclosure Type |
Rack-mountable |
| Performance |
Switching capacity: 2000 Gbps, Switching capacity with stacking: 3000 Gbps, Forwarding rate: 1488 Mpps, Forwarding rate with stacking: 2232 Mpps |
| Features |
Cisco UADP 2.0, QoS, SUDI, Cisco StackWise Technology, ZTP, Preboot Execution Environment, Cisco StackWise-1T technology, Rapid PVST+, FNF, DSCP support, SRR, CIR, mDNS, EEE, Blue Beacon LED, EVPN, PIM, VPN support, VPLS, EoMPLS, CDP, FHS, 802.1x authentication, RSPAN, LACP support, full duplex mode, PVLAN support, CoPP, SPAN |
| Expansion / Connectivity |
|
| Interfaces |
48 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE+ - 90 W, 1 x USB 2.0 |
| Power |
|
| Voltage Required |
AC 115-240 V (50 - 60 Hz) |
| Power Device |
Internal power supply - hot-plug |
