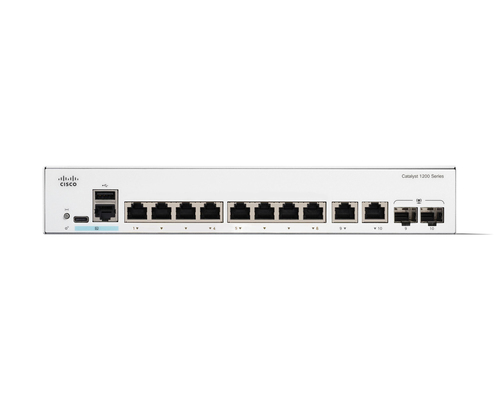

The Cisco Catalyst 1200-8T-E-2G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.
Specifications
| Management features |
| MIB support |
Y |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| Console port |
RJ-45/USB Type-C |
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
10 |
| Network |
| Number of VLANs |
255 |
| VLAN support |
Yes |
| Broadcast storm control |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az |
| Data transmission |
| Packet buffer memory |
1.5 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Number of queues |
8 |
| Forwarding rate |
14.88 Mpps |
| Switching capacity |
20 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| DoS attack prevention |
Yes |
| Loop protection |
Yes |
| Queue scheduling algorithms |
Weighted Round Robin (WRR) |
| Security algorithms |
802.1x RADIUS |
| Access Control List (ACL) rules |
512 |
| Multicast features |
| Multicast support |
Yes |
| Protocols |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Design |
| LED indicators |
Yes |
| Reset button |
Yes |
| Product colour |
White |
| Form factor |
1U |
| Rack mounting |
Yes |
| Performance |
| Mean time between failures (MTBF) |
2171669 h |
| Firmware upgradeable |
Yes |
| Flash memory |
512 MB |
| Internal memory |
1000 MB |
| Memory type |
DDR4-SDRAM |
| Processor frequency |
1.4 MHz |
| Built-in processor |
Yes |
| Power |
| Power plug type |
Type C |
| Power consumption (typical) |
10.65 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Other features |
| Packaging content |
Switch, power cable, USB Type C cable and mounting hardware |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 50 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating temperature (T-T) |
-5 - 50 °C |
| Weight & dimensions |
| Weight |
1.39 kg |
| Height |
43.9 mm |
| Depth |
268.2 mm |
| Width |
184.9 mm |
| Packaging data |
| Package weight |
2.45 kg |
| Package height |
103.9 mm |
| Package depth |
544.8 mm |
| Package width |
299 mm |
| Certificates |
| Certification |
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
