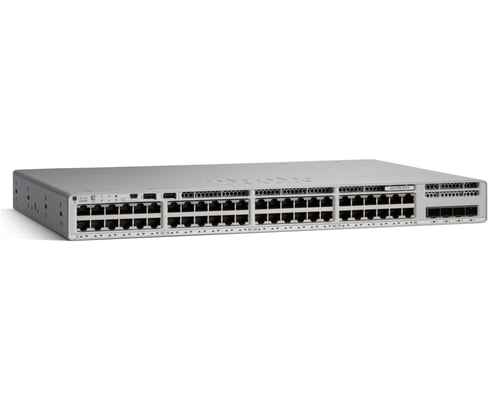

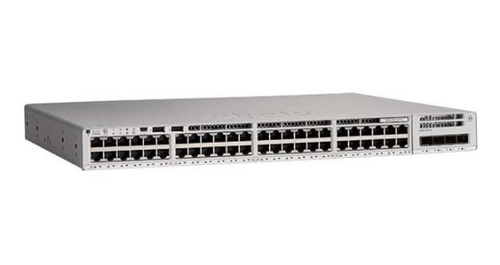

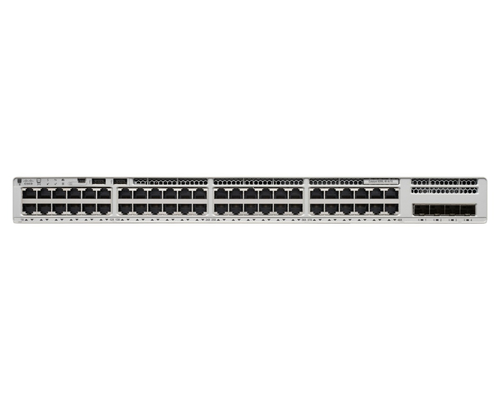

Cisco Catalyst C9200 48-Port Gigabit Ethernet L3 Managed PoE+ Switch
The Cisco Catalyst C9200 is a 48-port Gigabit Ethernet managed switch designed for enterprise network environments requiring reliable connectivity and flexible Layer 3 switching capabilities. It features 48 x 10/100/1000 PoE+ ports for connecting network devices and compatible powered equipment.
This Cisco Catalyst switch supports Gigabit Ethernet connectivity with a switching capacity of 176 Gbps and a forwarding rate of 261.9 Mpps. It also supports 9198-byte jumbo frames, helping accommodate larger data packets across demanding network applications.
The rack-mountable Cisco Catalyst C9200 features a stackable design for scalable network deployment. Its 48 x 1000Base-T RJ-45 PoE+ interfaces provide up to 30 W per port, making the switch suitable for powering compatible network devices directly through Ethernet connections.
Advanced capabilities include QoS, RSPAN, FNF, MACsec support, CoPP, Sampled NetFlow, SPAN, EEM, FHS, and DNA support. The switch also supports IEEE standards including 802.3ab, 802.3at, 802.3bz, 802.1Q, 802.1x, 802.3ad (LACP), and other Ethernet and network protocols.
The Cisco Catalyst C9200 uses an internal hot-plug power supply and supports AC 100–240 V input. Its rack-mountable enclosure is designed for enterprise installations, while the limited lifetime warranty includes advance parts replacement with next-business-day response and 90 days of technical support.
Key features
-
48 x 10/100/1000 PoE+ ports
-
Up to 30 W PoE+ per port
-
Gigabit Ethernet managed switch
-
176 Gbps switching capacity
-
261.9 Mpps forwarding rate
-
9198-byte jumbo frame support
-
Stackable rack-mountable design
-
Internal hot-plug power supply
Specifications:
| Miscellaneous |
|
| Color Category |
Gray |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Networking |
|
| Manageable |
Yes |
| Form Factor |
Rack-mountable |
| Ports Qty |
48 |
| Subcategory |
Network hubs and switches |
| Type |
Switch |
| Jumbo Frame Support |
9198 bytes |
| Subtype |
Gigabit Ethernet |
| Header |
|
| Model |
9200 |
| Product Line |
Cisco Catalyst |
| Packaged Quantity |
1 |
| Dimensions & Weight |
|
| Height |
13.8in |
| Width |
17.5in |
| Depth |
1.7in |
| Weight |
12.13lbs |
| Manufacturer Warranty |
|
| Service & Support |
Limited warranty - advance parts replacement - lifetime - response time: next business day, Technical support - phone consulting - 90 days |
| Environmental Parameters |
|
| Min Operating Temperature |
23 °F |
| Max Operating Temperature |
113 °F |
| Service & Support |
|
| Type |
Limited lifetime warranty |
| General |
|
| Subtype |
Gigabit Ethernet |
| Ports |
48 x 10/100/1000 (PoE+) |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
| Jumbo Frame Support |
9198 bytes |
| Device Type |
Switch - 48 ports - smart - stackable |
| Enclosure Type |
Rack-mountable |
| Performance |
Wireless bandwidth: up to 48 Gbps, Switching capacity: 176 Gbps, Forwarding rate: 261.9 Mpps |
| Features |
QoS, RSPAN, FNF, MACsec support, CoPP, Sampled NetFlow, SPAN, EEM, FHS, DNA support |
| Expansion / Connectivity |
|
| Interfaces |
48 x 1000Base-T RJ-45 PoE+ - 30 W |
| Power |
|
| Voltage Required |
AC 100-240 V |
| Power Device |
Internal power supply - hot-plug |
