In factories and outdoor sites the network must stay alive even when dust, heat or vibration try to break it. If the connection drops, machines stop, data is lost and production slows down. The Cisco Catalyst IE3400 (IE-3400-8T2S-A) gives you a strong, reliable switch that works in harsh places. It keeps every device linked and lets you manage the network without interruption.

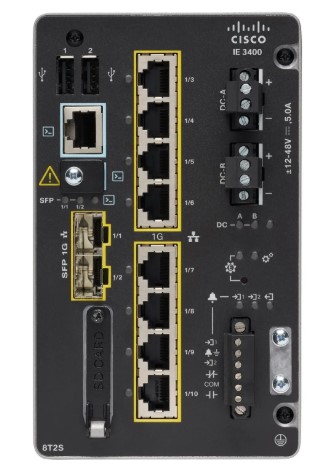

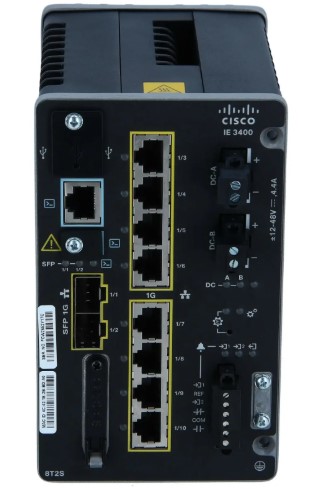

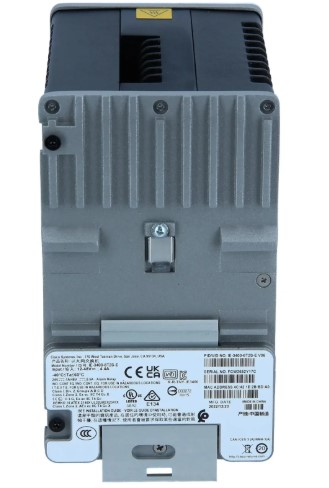

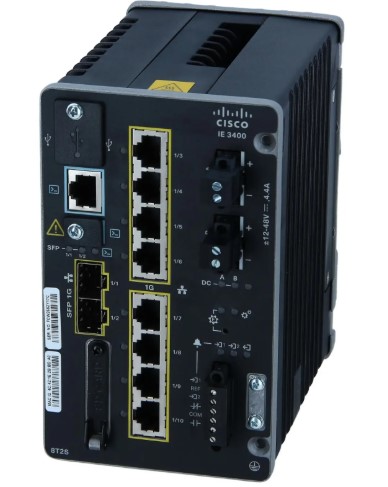

Cisco Catalyst IE3400 (IE-3400-8T2S-A), 10 Port Rugged Industrial Switch with Cisco
You need a switch that can survive the factory floor and still deliver fast Ethernet. This Cisco switch is built for industrial use. It has eight copper ports and two fiber ports, so you can connect sensors, PLCs, cameras and other equipment. The design resists temperature swings, shock and dust, giving you a network that never quits.
Key Features
- 8 x 10/100/1000 RJ45 copper ports.
- 2 x 100/1000 SFP fiber ports.
- Dual DC power range 9.6-60 V with redundancy.
- Line-rate forwarding for all ports and packet sizes.
- 256 VLANs and 16 K MAC address table.
- 8 hardware queues for traffic shaping.
- Supports PRP for seamless redundancy.
- USB 2.0 and SD-card slots for storage and updates.
Specifications
| Product Model |
IE-3400-8T2S-A |
| Product Family |
Cisco Catalyst IE3400 Rugged Series |
| Product Type |
Rugged Industrial Ethernet Switch |
| Total Ports |
10 |
| 10/100/1000 RJ45 Copper Ports |
8 |
| 100/1000 SFP Ports |
2 |
| PoE |
Not applicable |
| Software License |
Network Advantage |
| Forwarding Rate |
Line rate for all ports and all packet sizes |
| Number of Queues |
8 |
| Unicast MAC Addresses |
16K |
| IGMP Multicast Groups |
1K |
| VLANs |
256 |
| IPv4 Indirect Routes |
3000 |
| IPv6 Indirect Routes |
512 |
| Spanning Tree Protocol (STP) Instances |
128 |
| Access Control Entries (PACL/VACL/RACL) |
3K |
| DRAM |
4 GB |
| Flash (User Accessible) |
1.5 GB |
| SD Card Capacity |
4 GB, 16 GB |
| Jumbo Frames |
8996 bytes |
| Removable Storage |
USB, SD card |
| USB |
USB 2.0 |
| Alarms |
2 alarms in, 1 alarm out |
| Console Ports |
1 RS-232 (via RJ-45), 1 USB Mini Type B |
| Power Inputs |
Dual DC power input |
| Input Voltage Range |
Redundant DC input voltage: 9.6 to 60VDC |
| Input Current |
6.3A |
| Power Consumption |
36W |
| Dimensions (H × W × D) |
6 × 3.6 × 5.3 in. / 15.2 × 9.1 × 13.5 cm |
| Weight |
3.8 lbs / 1.7 kg |
| Mounting |
DIN rail |
| Expansion Support |
Supports IE3300/IE3400 expansion modules |
| Network Advantage |
Includes all Network Essentials features |
| PRP |
Available on select base-switch ports (Gig1/1–Gig1/4); single PRP instance supported |
