Are you tired of dealing with slow and unreliable internet connections in your industrial setting? Do you struggle to find a router that can keep up with your business's growing demands? Look no further than the Cisco Catalyst IR1101 (IR1101-K9), 4GB IP30 Industrial Router. This powerful device is designed to provide fast and secure internet connections, even in the most challenging environments. With its advanced features and robust design, it's the perfect solution for businesses that need a reliable and high-performance router. As a Cisco product, you can trust that it will deliver the quality and performance you need to stay ahead of the competition.

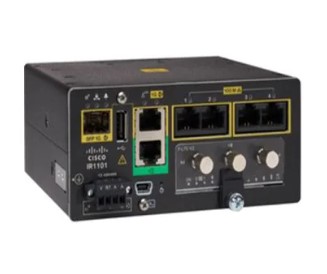

Cisco Catalyst IR1101 (IR1101-K9), 4GB IP30 Industrial Router
The Cisco Catalyst IR1101 (IR1101-K9), 4GB IP30 Industrial Router solves the problem of slow and unreliable internet connections in industrial settings. This is a major issue for businesses that rely on the internet to operate, as it can lead to decreased productivity and lost revenue. The Cisco Catalyst IR1101 (IR1101-K9) provides a clear solution to this problem by offering fast and secure internet connections, even in challenging environments. With its advanced features and robust design, it's the perfect solution for businesses that need a reliable and high-performance router. The problem of slow internet connections matters to users because it can hinder their ability to work efficiently and effectively. The Cisco Catalyst IR1101 (IR1101-K9) gives a clear solution by providing a fast and reliable internet connection that can keep up with the demands of industrial settings.
Key Features
- 4GB IP30 Industrial Router with advanced security features
- Combo 10/100/1000 Gigabit Ethernet port (RJ45 and SFP) on the base platform
- Additional 10/100/1000 Gigabit Ethernet SFP on the expansion module
- 5G/LTE: Modular with options for single and dual active LTE and LTE-Advanced
- Four 10/100BASE-T Fast Ethernet ports
- ALARM input port
- Mini type-B USB console
- IP30 ingress protection rating
- Operating temperature range of 0 to 140F (0 to 60C) in a sealed NEMA cabinet
- Non-operating temperature range of -40 to 185F (-40 to 85C)
- Mounting options include panel, wall, and din rail (vertical and horizontal) mount
Specifications
| Model |
IR1101-K9 |
| Brand |
Cisco |
| Cisco IOS Software Requirements |
Cisco IOS XE Software: Universal Cisco IOS Software image, Cisco IOS XE Software Release 16.10.1 or later |
| IPv4 and IPv6 Services Features |
RIPv1 and RIPv2, GRE and MGRE, STP, NAT, DHCP server, relay, and client, DDNS,
DNS proxy, DNS spoofing, ACLs, IPv4 and IPv6 multicast, IP SLA, OSPFv2 and OSPFv3,
BGP, EIGRP, VRF Lite, NHRP, Serial data encapsulation and relay, L2TPv3 over s
ub-interfaces and VLAN
|
| Default and Maximum DRAM |
4 GB |
| Default and Maximum Flash Memory |
4 GB (usable) |
| Ingress Protection Rating |
IP30 |
| Physical Dimensions (H x W x D) Chassis |
2.36 in. x 5.22 in. x 4.92 in. (60 x 132.5 x 124.9 mm) |
| Mounting Options |
Panel, wall, and din rail (vertical and horizontal) mount |
| Power Specifications |
Nominal voltage: +/-12V to +/-48V DC, Minimum and maximum input voltage:
9.6-60V DC, Maximum and minimum input current: 1.24A (9.6V DC) and 0.26A (60V DC)
|
| Power Consumption |
At idle: 6.6W, Typical: 9.8W, Maximum: 12W, Additional 10W (typical) with expansion module and
2nd cellular
|
| Console |
Mini type-B USB |
| WAN Interfaces |
Combo 10/100/1000 Gigabit Ethernet port (RJ45 and SFP) on the base platform,
An additional 10/100/1000 Gigabit Ethernet SFP on the expansion module,
5G/LTE: Modular with options for single and dual active LTE and LTE-Advanced
|
| LAN Interfaces |
Four 10/100BASE-T Fast Ethernet ports |
| Input and Output |
ALARM input port |
| Environmental Operating Temperature Range |
0 to 140°F (0 to 60°C) in a sealed NEMA cabinet with no airflow, 0 to 158°F (0 to 70°C)
in a vented cabinet with 40 Linear Feet per Minute (LFM) of air, 0 to 167°F (0 to 75°C)
in a forced air enclosure with 200 LFM of air, Type tested at 85°C for 16 hours
|
| Operating Altitude |
40°C up to 13,800 ft (operating) per IEC 68-2-41 |
| Non-operating Temperature |
-40 to 185°F (-40 to 85°C) |
