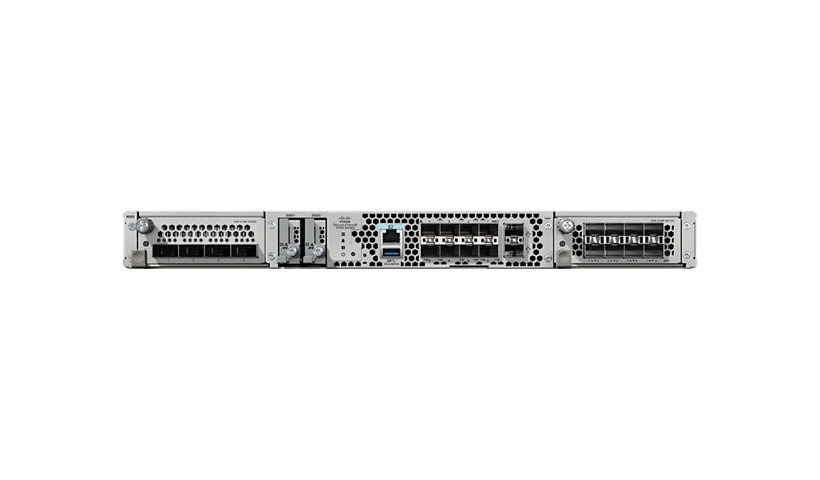

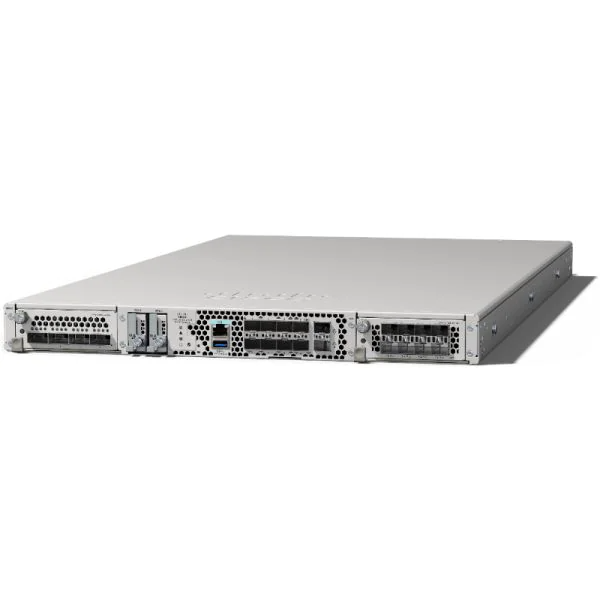

Cisco FirePOWER 4225 ASA Security Appliance - with 2 x NetMod Bays, 1U Rackmount
Cisco FirePOWER 4225 ASA is a high performance network security appliance built for demanding enterprise networks. It provides high speed connectivity through 8 SFP28 ports, which support flexible high bandwidth networking. It also delivers strong security using features such as Application Visibility and Control, DNS filtering, and URL filtering. The device supports stateful firewall throughput up to 95 Gbps and NGFW throughput up to 80 Gbps, which helps you process large volumes of network traffic quickly and securely.
The appliance is designed for reliability and continuous operation. It includes hot plug redundant power supplies with 80 PLUS Platinum efficiency rating. You also get 1.8 TB SSD storage and 512 GB DDR4 memory, which supports heavy logging, reporting, and real time threat analysis. This makes it a strong choice for large enterprises and service providers that need fast, secure, and stable network protection.
Specification
| Brand |
Cisco |
| Product Line |
Cisco FirePOWER |
| Model |
4225 ASA |
| Manufacturer |
Cisco DS Hardware Direct |
| Processor |
|
| Processor Brand |
AMD |
| Processor Type |
EPYC |
| Processor Number |
7763 |
| Clock Speed |
2.45 GHz |
| Processors Installed |
1 |
| Memory |
|
| Memory Technology |
DDR4 SDRAM |
| RAM Installed |
512 GB |
| Storage |
|
| Hard Drive Capacity |
1.8 TB |
| Drive Type |
SSD |
| Installed Quantity |
2 |
| RAID Levels |
RAID 1 |
| Network and Communication |
|
| Connectivity Technology |
Wired |
| Data Link Protocols |
25 Gigabit Ethernet |
| Network Standard |
DNS, FTP, HTTP, IMAP4, SMTP |
| Compliant Standards |
IEEE 802.1Q |
| Features |
3 fans, AVC, Clustering, DNS filtering, High availability, NGFW, Reset button, URL filtering, VPN load balancing |
| Status Indicators |
Alarm, Link activity, Management, Power, Reset, SSD activity |
| Product Type |
Security appliance |
| Form Factor |
Rack mountable |
| Expansion |
|
| Expansion Slots |
2 total, 2 free |
| Connectivity |
|
| Interface Provided |
1 x Serial Console RJ45, 1 x USB 3.0 Type A, 2 x SFP28 1G 10G 25G Management, 8 x SFP28 1G 10G 25G |
| Power |
|
| Frequency |
50 to 60 Hz |
| Hot Plug |
Yes |
| Power Provided |
1900 Watt |
| Power Supplies Installed |
2 |
| Power Supplies Supported |
2 |
| Redundant Power Supply |
Yes |
| Required Voltage |
AC 100 to 120 and 200 to 240 Volt |
| 80 PLUS Certification |
80 PLUS Platinum |
| Software |
|
| Software Type |
Cisco ASA 9.20.1 |
| Technical |
|
| Encryption |
SSL |
| Max Operating Temperature |
104 F |
| Min Operating Temperature |
32 F |
| Operating Humidity |
5 to 95 percent non condensing |
| Included Items |
|
| Cables |
1 x Console cable 6 ft |
| Included Accessories |
2 blank slot covers, Mounting kit, Slide rail kit |
| Dimensions and Weight |
|
| Height |
1.7 inch |
| Height Rack Units |
1U |
| Width |
16.9 inch |
| Depth |
32 inch |
| Certifications and Listings |
|
| Regulatory Certifications |
AS NZS 62368 1, CISPR 32 Class A, EN 62368 1, FCC Part 15 Class A, IEC 62368 1, UL 62368 1 and others |
| Energy Star Certified |
No |
| EPEAT Compliant |
No |
| TCO Certified |
No |
