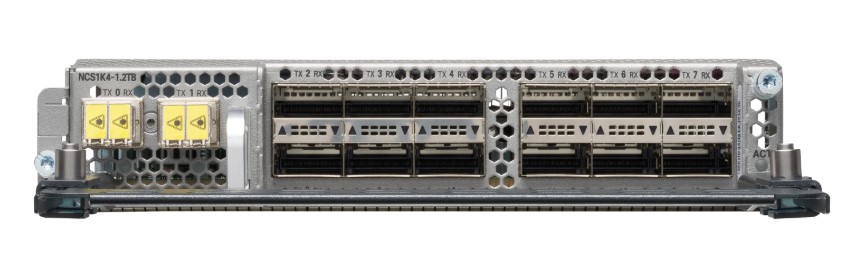

Cisco NCS1K4-1.2T-K9, NCS1K4 12x QSFP28, 2 Trunk C-Band DWDM card

Cisco NCS1K4-1.2T-K9, NCS1K4 12x QSFP28, 2 Trunk C-Band DWDM card

Handle high-capacity optical transport with a card designed for 100GE and OTU4 client traffic. The Cisco NCS1K4-1.2T-K9 provides 12 × QSFP28 client ports with a maximum client capacity of 12 × 100G. It also provides two C-Band DWDM trunk ports with configurable trunk rates from 100G to 600G in 50G increments. This makes it useful when you need flexible client connectivity and high-speed DWDM transport on a single-slot card.

Benefits

• High client capacity: Support up to 12 × 100G client connections for high-bandwidth optical networking.
• Flexible trunk rates: Configure DWDM trunk rates from 100G to 600G in 50G increments to match network requirements.
• C-Band DWDM support: The C-Band optical design provides a suitable platform for DWDM trunk connectivity.
• Layer-1 encryption: AES256-based Layer-1 encryption helps protect 100GE and OTU4 client-side data.
• Single-slot design: The card configuration uses one slot, helping you deploy the required capacity within the supported platform.

Usages

The Cisco NCS1K4-1.2T-K9 can be used in optical transport networks that require multiple 100G client connections and C-Band DWDM trunk connectivity. It supports 100GE and OTU4 client traffic and can provide up to 12 × 100G client capacity. The two DWDM trunk ports support rates from 100G through 600G, making the card suitable for networks where trunk capacity needs to be configured according to traffic requirements. It is designed for use with the Cisco NCS 1004 and NCS 1014 platforms.

Key Features

• 1.2T DWDM Transponder Card
• 12 × QSFP28 client ports
• Supports 100GE and OTU4 client traffic
• Maximum client capacity of 12 × 100G
• 2 DWDM trunk ports
• 100G to 600G trunk rates
• 50G trunk rate increments
• C-Band optical band
• Single-slot card configuration
• AES256-based Layer-1 encryption
• Module and slice configurations
• Compatible with Cisco NCS 1004 / NCS 1014

Specifications
