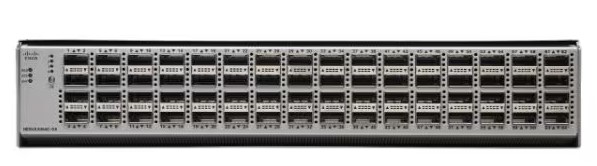

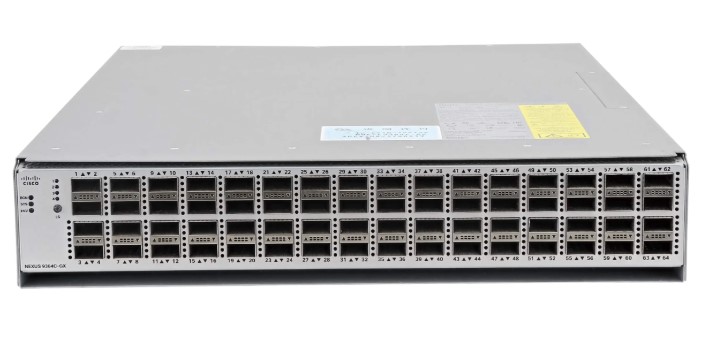

Cisco Nexus 9300 N9K-C9364C-GX 64-Port 100/40Gbps Network Switch
The Cisco Nexus 9300 N9K-C9364C-GX is a high-performance network switch featuring 64 x 100/40-Gbps QSFP28 ports. It is designed for high-bandwidth data center environments requiring flexible connectivity and scalable network performance.
The Cisco Nexus 9300 supports 40/100-Gbps operation with extensive breakout capabilities. The ports support 2x50, 2x25, and 2x10 configurations across all ports, as well as 4x10 and 4x25G on all odd-numbered ports, with 10G support using QSA.
This Cisco Nexus switch provides a 4-core CPU, up to 32 GB of system memory, a 128 GB SSD drive, and an 80 MB system buffer. These resources support demanding data center switching and network management workloads.

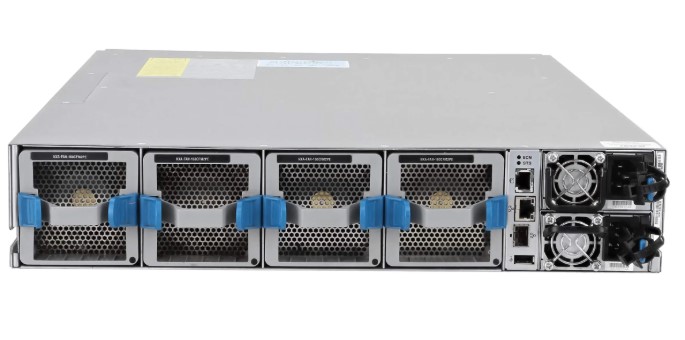

For management and administration, the N9K-C9364C-GX includes two management ports consisting of one RJ-45 and one SFP port, along with one USB port and one RS-232 serial port. The switch supports 2 x 2000W power supplies with 1+1 redundancy.
The Cisco Nexus 9300 operates with AC, high-voltage AC, DC, and high-voltage DC input options. It features 3+1 fan redundancy with port-side intake and exhaust airflow, while the enclosure measures 3.39 x 17.41 x 22.59 inches and provides an MTBF of 237,760 hours.
Key features
-
64 x 100/40-Gbps QSFP28 ports
-
40/100-Gbps supported speeds
-
Multiple breakout configurations
-
80 MB system buffer
-
Up to 32 GB system memory
-
128 GB SSD drive
-
1+1 redundant 2000W power supplies
-
3+1 fan redundancy
Specifications:
| Device |
N9K-C9364C-GX |
| Ports |
64 x 100/40-Gbps QSFP28 ports |
| Supported speeds |
40/100-Gbps, Breakout supported: 2x50, 2x25, 2x10 on all ports, 4x10, 4x25G on all odd numbered ports, 10G w/QSA |
| CPU |
4 cores |
| System memory |
Up to 32 GB |
| SSD Drive |
128 GB |
| System buffer |
80 MB |
| Management ports |
2 ports: 1 RJ-45 and 1 SFP |
| USB Ports |
1 |
| RS-232 serial ports |
1 |
| Power Supplies |
2 (1+1 redundancy), 2000W AC, 2000W DC, 2000W HVAC/HVDC |
| Typical power |
811W |
| Maximum power |
1622W |
| Input voltage (AC) |
100 to 240V |
| Input voltage (High-Voltage AC [HVAC]) |
100 to 277V |
| Input voltage (DC) |
–40 to –72V |
| Input voltage (High-Voltage DC [HVDC]) |
–240 to –380V |
| Frequency (AC) |
50 to 60 Hz |
| Fans |
3+1 redundancy |
| Airflow |
Port-side intake and exhaust |
| Physical dimensions (H x W x D) |
Dimensions (H x W x D): 3.39 x 17.41 x 22.59 in. (8.61 x 44.23 x 57.4 cm) |
| Acoustics |
77.3 dBA at 50% fan speed, 88.6 dBA at 70% fan speed, and 95.8 dBA at 100% fan speed |
| RoHS compliance |
Yes |
| Mean Time Between Failure (MTBF) |
237,760 hours |
| Minimum ACI image |
ACI-N9KDK9-14.2(3) |
| Minimum NX-OS image |
NXOS-9.3.3 |
